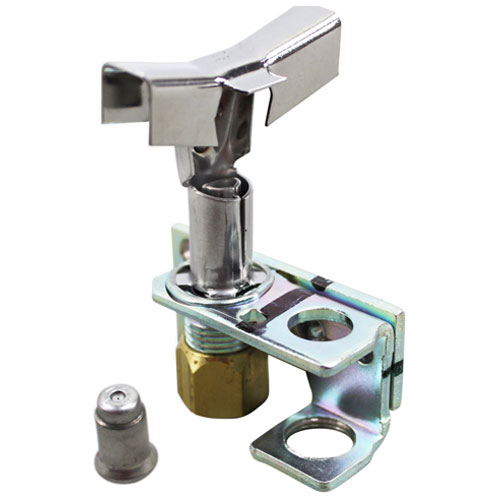

Cecilware F180A 1/4" Tube NAT/LP Pilot, 3 Way Flame

SKU: F180A 1-F180A Brand:
Cecilware
Availability:
In Stock
(0)
$54.39 Price reduced from $70.64
Save $16.25
Have a Question? +1 (866) 863-0907

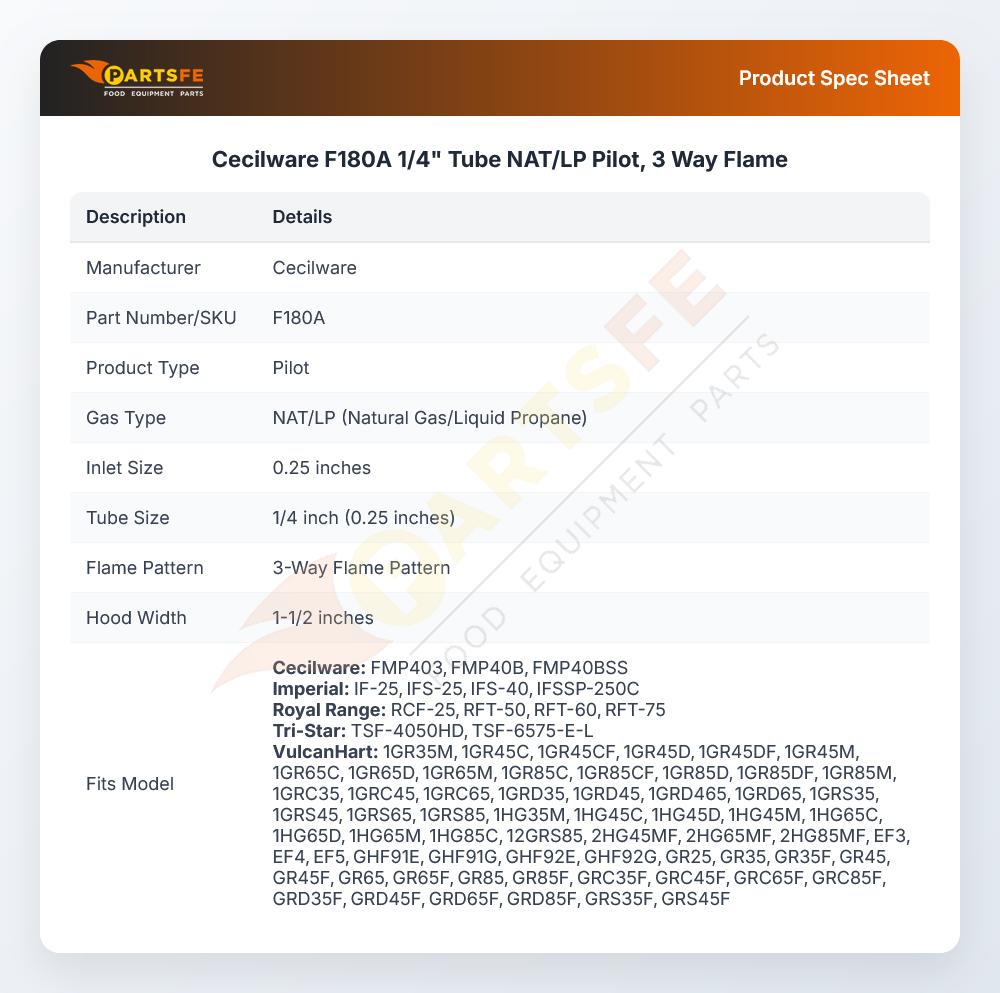

Specifications:

  • Nat/Lp Pilot, Factory # 6Ch14-10, 1830-491
  • Tube Size 1/4", Flame Pattern 3 Way, Hood Width 1-1/2"
  • Nat Orifice Pre-Installed # 26-1555, .018
  • Lp Orifice Included # 26-1554, .010
  • Cecilware Fryer Fmp 30, 40B, 403, 65, Fms 30, 54
  • Imperial Fryer Series: If, Ihr, Ir.
  • Vulcan Hart
  • Fryer Gf(91G,92G), Hf91G, Hf92G (Old 7891G & 7892G),Tk-35,
  • Series: 7400, 7500, 7800 (Depending On Date Of
  • Model). Series: Ef
  • 1Gr45M, 1Gr65M, 1Gr85M, 1Grc35, 1Grc45, 1Grc65, 1Grd45,
  • 1Grd65, 1Grs35, 1Grs45, 1Grs65, Ef3, Ef4, Ef5, Gr35, Gr35F,
  • Gr45, Gr45F, Gr65, Gr65F, Gr85, Gr85F, Grc35F, Grc45F,
  • Grc65F, Grc85F, Grd35F, Grd45F, Grd65F, Grd85F, Grs35F,
  • Grs45F, Grs65F, Grs85F

Description

The Cecilware F180A Pilot Natural Gas/LP provides a small, constant flame which lights the main burner when the gas flow is turned on. It directs gas along a small orifice to the pilot tip where the flame is kept burning to allow the burner to start up consistently during use. This pilot assembly is placed close to the appliance burner and is placed in such a way that the flame is able to directly light the primary gas supply during normal heating or cooking operations.

Dimensions:

  • Weight: 0.2 lbs
  • Length: 1.75 in
  • Height: 2.5 in
  • Width: 2 in

CECILWARE:

F179A F179A/F180A F179F F180F GMF180A GMF180F

GRINDMASTER:

180A F179A F179A/F180A F179F F180F

HOBART:

00-412212-00001 00-412212-00002 00-412212-00007 00-412212-1/2/7 00-721028-00001 112212-1 112212-2 21028-1 412212-00001 412212-00002 412212-00007 412212-1 412212-1/2/7 412212-2 412212-7 511467 721028-00001 721028-1

IMPERIAL:

0310 1095-16 1095-26 IMP1095-16 IMP1095-26

ROYAL RANGE:

3231 3232

TRI-STAR:

300231 TRS300231 TS-1095-16 TS-1095-26

U-LINE:

1830-491 6CH14-10

VULCAN HART:

00-412212-00001 00-412212-00002 00-412212-00007 00-412212-1/2/7 00-4212212-00002 00-721028-00001 112212-1 112212-2 21028-1 412212-00001 412212-00002 412212-00007 412212-1 412212-1/2/7 412212-2 412212-7 721028-00001 721028-1 VH112212-1 VH112212-2 VH412212-1 VH412212-2 VH412212-7
