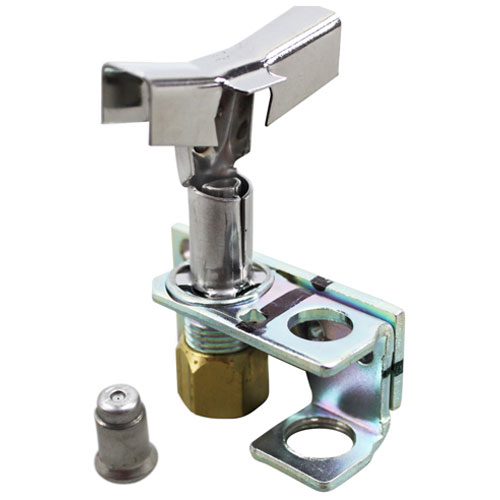

Vulcan Hart 00-412212-00007 NAT/LP Pilot 3-Way Flame 1/4" Tube

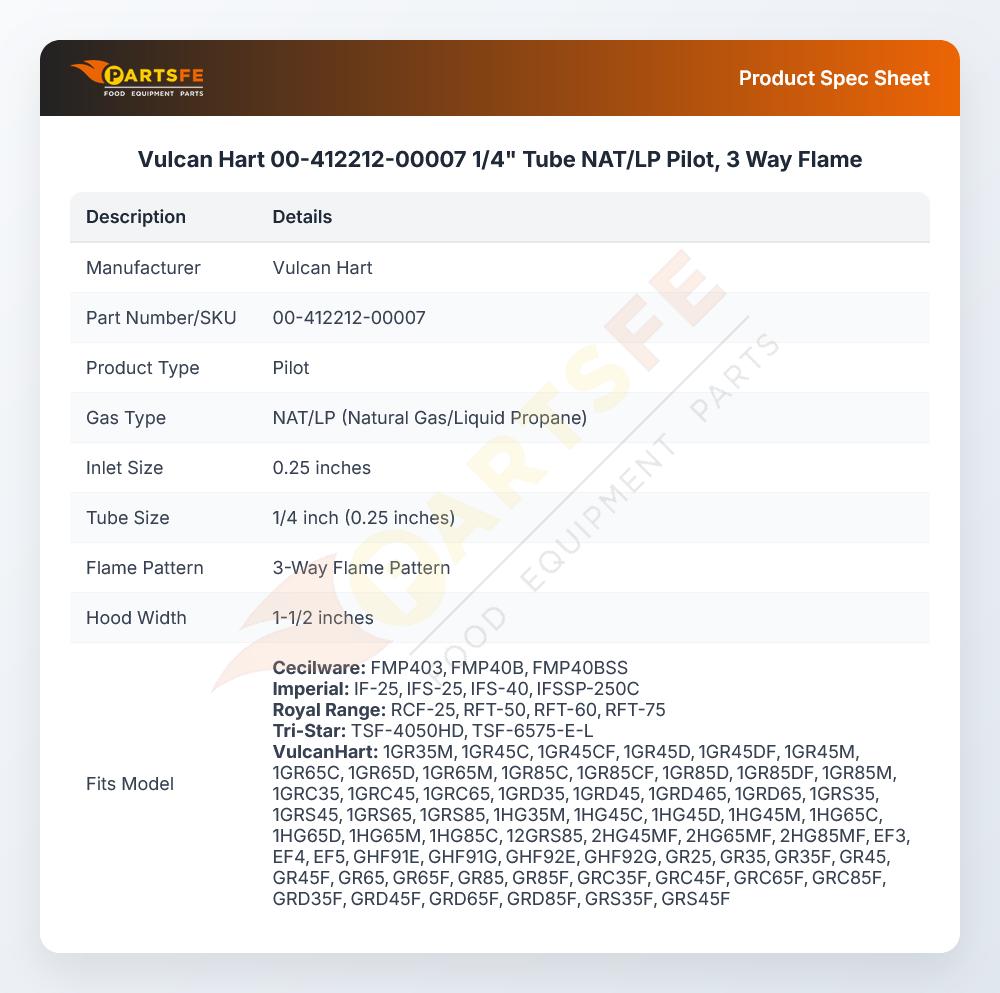

Specifications:
- Nat/Lp Pilot, Factory # 6Ch14-10, 1830-491
- Tube Size 1/4", Flame Pattern 3 Way, Hood Width 1-1/2"
- Nat Orifice Pre-Installed # 26-1555, .018
- Lp Orifice Included # 26-1554, .010
- Cecilware Fryer Fmp 30, 40B, 403, 65, Fms 30, 54
- Imperial Fryer Series: If, Ihr, Ir.
- Vulcan Hart
- Fryer Gf(91G,92G), Hf91G, Hf92G (Old 7891G & 7892G),Tk-35,
- Series: 7400, 7500, 7800 (Depending On Date Of
- Model). Series: Ef
- 1Gr45M, 1Gr65M, 1Gr85M, 1Grc35, 1Grc45, 1Grc65, 1Grd45,
- 1Grd65, 1Grs35, 1Grs45, 1Grs65, Ef3, Ef4, Ef5, Gr35, Gr35F,
- Gr45, Gr45F, Gr65, Gr65F, Gr85, Gr85F, Grc35F, Grc45F,
- Grc65F, Grc85F, Grd35F, Grd45F, Grd65F, Grd85F, Grs35F,
- Grs45F, Grs65F, Grs85F
Description
Dimensions:
- Weight: 0.2 lbs
- Length: 1.75 in
- Height: 2.5 in
- Width: 2 in
HOBART:
00-412212-00001 00-412212-00002 00-412212-1/2/7 00-721028-00001 112212-1 112212-2 21028-1 412212-00001 412212-00002 412212-00007 412212-1 412212-1/2/7 412212-2 412212-7 511467 721028-00001 721028-1
TRI-STAR:
300231 TRS300231 TS-1095-16 TS-1095-26
U-LINE:
1830-491 6CH14-10
VULCAN HART:
00-412212-00001 00-412212-00002 00-412212-1/2/7 00-4212212-00002 00-721028-00001 112212-1 112212-2 21028-1 412212-00001 412212-00002 412212-00007 412212-1 412212-1/2/7 412212-2 412212-7 721028-00001 721028-1 VH112212-1 VH112212-2 VH412212-1 VH412212-2 VH412212-7
Step1: Shut off gas supply and ensure the equipment is completely cool before starting.
Step2: Disconnect the tubing from the old pilot assembly using a wrench.
Step3: Remove mounting screws to detach the existing pilot burner.
Step4: Secure the new pilot in place, ensuring the way flame is properly oriented toward the burner.
Step5: Tighten the gas line connection and check for leaks using a soapy water solution.
-
What maintenance is required for the Vulcan Hart 00-412212-00007 Pilot?
Shut off gas supply before servicing and inspect the pilot tube for blockages regularly. Clean carbon buildup to maintain steady flame performance. Ensure proper alignment and secure fittings to prevent gas leaks and ignition issues.
-
What are common issues with the Vulcan Hart 00-412212-00007 Pilot?
- Weak or inconsistent pilot flame.
- Clogged tube restricting gas flow.
- Delayed ignition or failure to light.
- Loose fittings causing gas leakage.
- Uneven flame pattern impacting heating performance.
