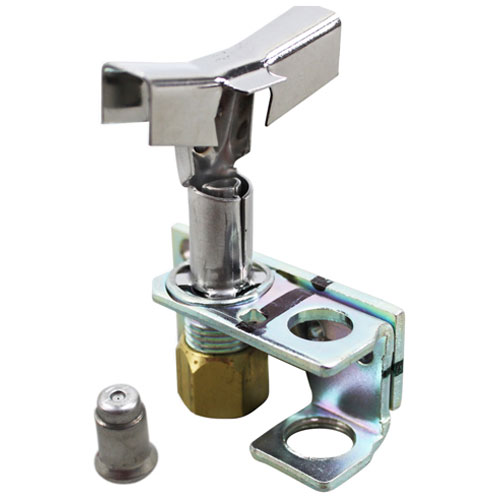

Imperial 0310 3-Way Flame Pilot NAT/LP 1/4" Tube

The gas pilot burner assembly, designed for use in commercial fryers, is responsible for generating a stable ignition flame to activate the main burner system. It incorporates a 3-way flame pattern that distributes the pilot flame evenly, thereby enhancing ignition reliability across multiple burner points. The assembly is equipped with a 1/4-inch tube connection and is supplied with both natural gas and LP orifices, enabling flexible installation based on the fuel type required by the equipment. Reliable pilot flame performance is critical for safe and efficient fryer operation, as it ensures proper burner ignition and maintains consistent heat output. This pilot assembly is typically installed in restaurant fryers and heavy-duty cooking equipment. If the pilot becomes weak, clogged, or inconsistent, replacement can restore proper ignition, minimize downtime, and promote uninterrupted kitchen operations.

Equipment Compatibility:
Frequently used with Imperial 3-way flame pilot systems, this component is suitable for commercial fryers operating on natural or LP gas. This flame pilot 0310 is compatible with commercial equipment from leading brands such as Imperial, Vulcan Hart, Cecilware, Royal Range, and Tri-Star, and more, where consistent pilot flame ignition is required for reliable fryer performance.

Brand Compatibility:
Replaces multiple part numbers used across Imperial, Vulcan Hart, Cecilware, Hobart, and other brands. Full cross-reference details are provided separately for accurate compatibility verification.

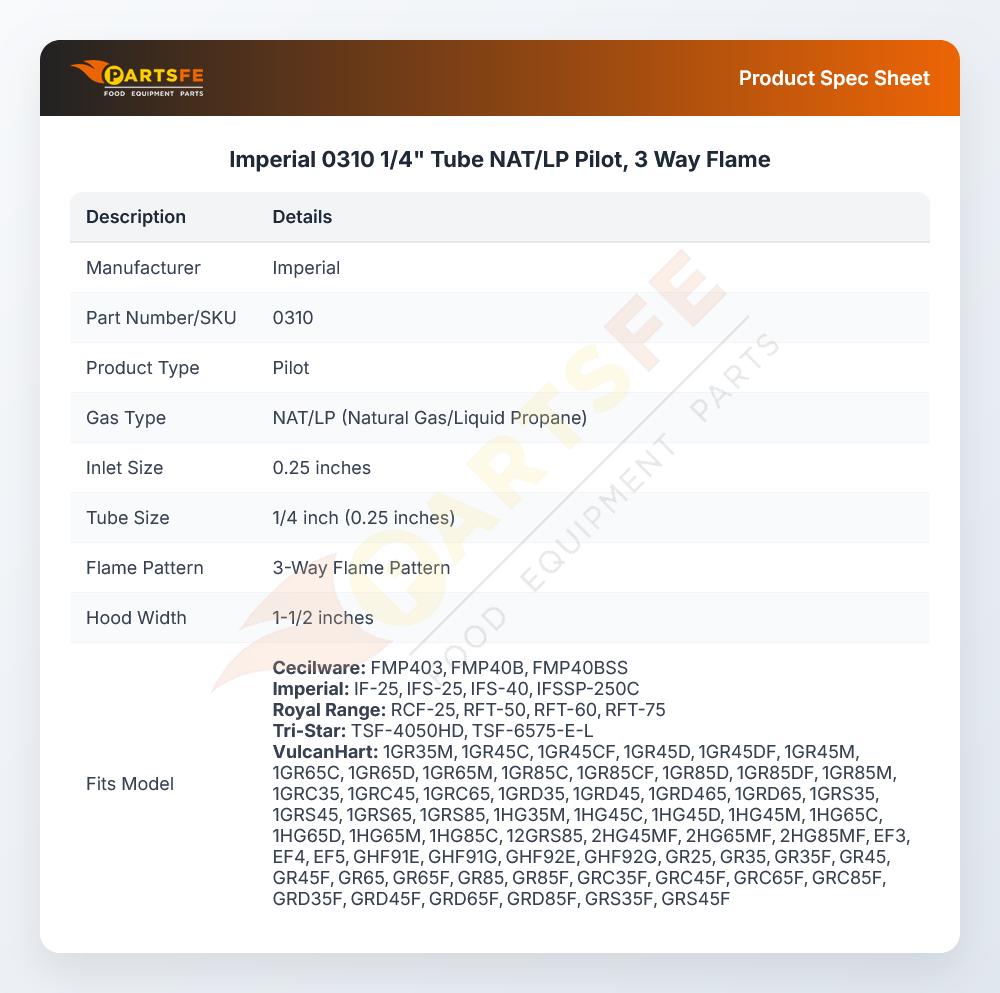

Product Specifications:
Product Type: Flame Pilot Assembly
Manufacturer: Imperial
SKU: 0310
Fuel Type: Natural Gas / LP (convertible)
Tube Size: 1/4 inch
Flame Pattern: 3-way
Hood Width: 1-1/2 inch
Natural Gas Orifice: #26-1555 (.018) pre-installed
LP Gas Orifice: #26-1554 (.010) included

Key Features:

• Provides a steady 3-way pilot flame that improves burner ignition and supports even heat distribution.
• Includes both natural gas and LP orifices, allowing flexible use across different fuel systems.
• 1/4-inch tube connection ensures proper gas flow and easy integration into fryer assemblies.
• Pre-installed natural gas orifice (.018) and included LP orifice (.010) help match the correct fuel requirements for safe operation.
• 1-1/2 inch hood width helps protect and direct the pilot flame for consistent ignition performance.

"After replacement, the pilot flame became more consistent, helping the burners ignite more reliably."

Step1: Turn off the gas supply before starting installation.

Step2: Locate the pilot assembly within the appliance.

Step3: Disconnect gas line and mounting bracket carefully.

Step4: Remove the old pilot from its position.

Step5: Install the new pilot in the same location.

Step6: Reconnect the gas line securely.

Step7: Restore gas supply slowly.

Step8: Check pilot flame for proper operation.

• How does the pilot assembly contribute to the safety of commercial fryers?

  The pilot assembly enhances safety by incorporating a thermocouple that automatically shuts off the gas if the flame extinguishes. This feature prevents potential hazards in the kitchen.

• How quickly does the pilot assembly facilitate the ignition of commercial fryers?

  The pilot assembly ensures quick and efficient ignition, contributing to the prompt start-up of commercial fryers. This feature is crucial for maintaining a smooth workflow in a busy kitchen.

• How does the pilot assembly contribute to consistent heat distribution in commercial fryers?

  The pilot assembly plays a key role in ensuring consistent heat distribution, contributing to even cooking results. This feature is essential for achieving high-quality fried food.

• What maintenance is required for the Imperial 0310 Pilot Tube?

  Inspect the pilot tube regularly for clogs, corrosion, or soot buildup. Clean gently with a soft brush or compressed air. Ensure proper alignment and secure connections to maintain consistent flame ignition. Regular checks prevent performance issues and ensure safety.

• What are common issues with the Imperial 0310 Pilot Tube?

  • Difficulty igniting the pilot flame.
  • Soot buildup is affecting the flame.
  • Gas flow obstruction.
  • Loose or misaligned connections.
