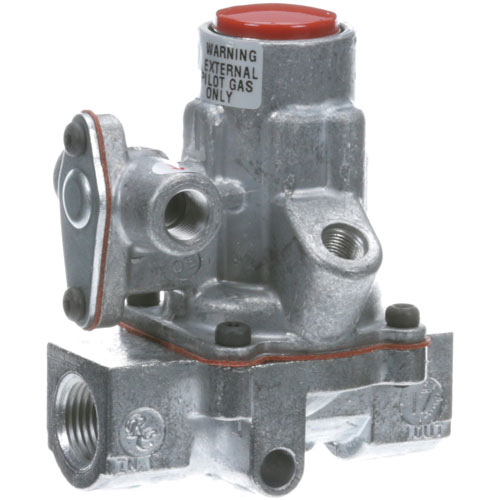

Hobart 00-720719-00001 Pilot Safety Valve 3/8"

SKU: 00-720719-00001 1-00-720719-00001 Brand:
Hobart
Availability:
In Stock
(0)
$310.36 Price reduced from $495.00
Save $184.64
Have a Question? +1 (866) 863-0907

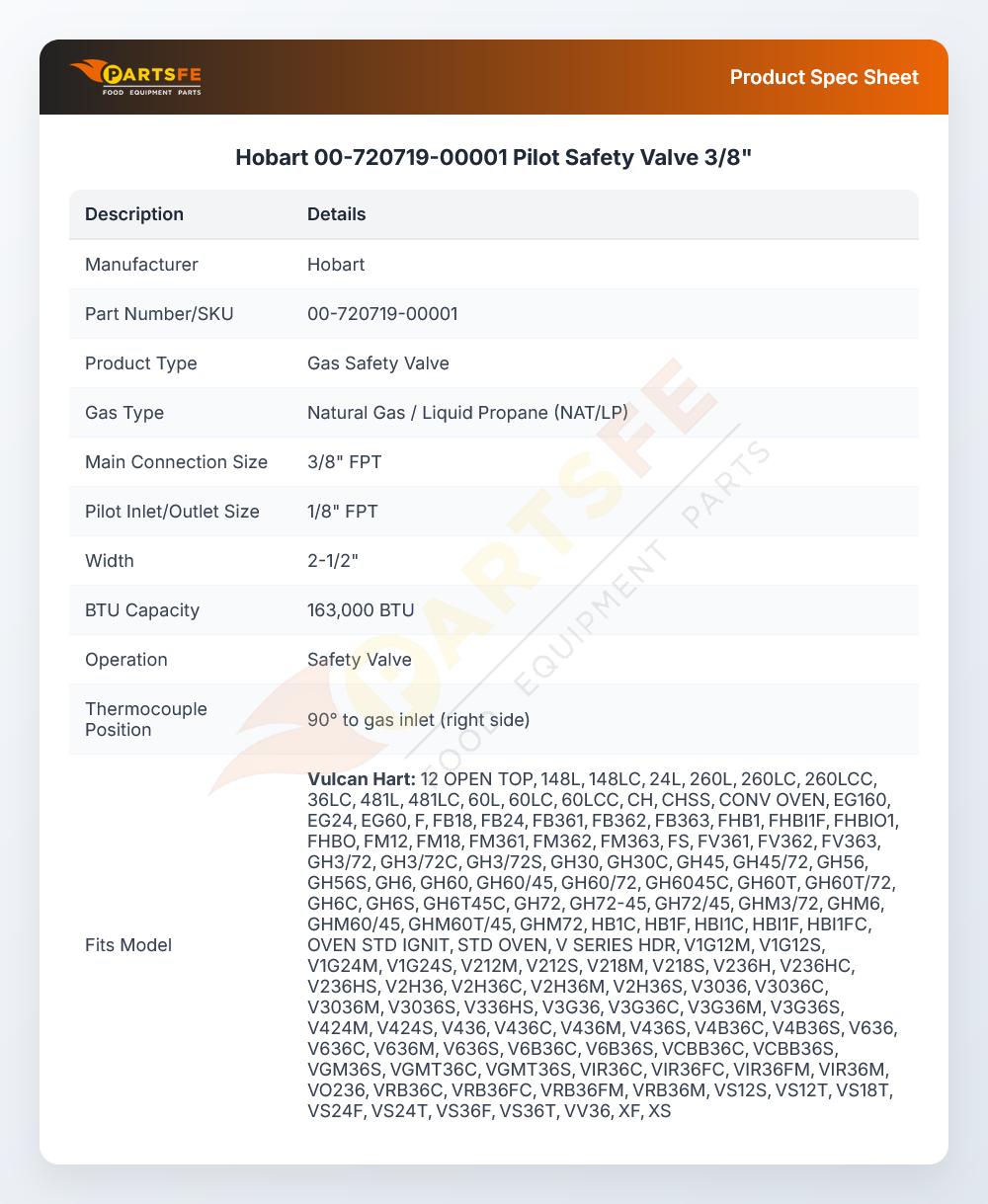

Specifications:

  • [Nat/Lp ] [ 3/8" Fpt] [ Safety ] [ 1/8" Fpt Pilot In/Out ]
  • [ Width 2-1/2" ] [ 163,000 Btu ][ Brand Baso ]
  • [ Mfg# H15Ar-3 ]
  • Vulcan/Wolf
  • Oven Ch & Chss (From 1980-89) Gh, F, Fs.
  • New Style Has Thermocouple Inlet 90 Degrees To Gas In/Out.
  • Product Change: Baso Has Changed This Valve.
  • They Turned The Thermocouple Hole 90 Deg.
  • It Now Is On The Right Side When Facing The Gas Inlet.
  • - Not On The End.

Description

The Hobart 00-720719-00001 Pilot Safety Valve is a gas control component that regulates fuel flow based on flame status in commercial cooking equipment. It operates by working with a thermocouple that detects heat from the pilot flame, and keeps the valve open during normal operation. If the flame is extinguished the valve automatically stops gas flow to the burner system. Installed within the gas supply assembly using 3/8-inch connections it supports consistent ignition performance, assists in ensuring secure operating conditions, and reduces the possibility of unburned gas entering the equipment.

Dimensions:

  • Weight: 0.8 lbs
  • Length: 3.25 in
  • Height: 2.25 in
  • Width: 3 in

HOBART:

00-497765-00001 00-705025-0000A 15003 20719 497765-00001 497765-1 5025-A 5025A 705025-0000A 705025-A 715003 720719-00001 720719-1

JOHNSON CONTROLS:

H15AR-3C

VULCAN HART:

00-497765-00001 00-705025-0000A 00-962067-00001 15003 20719 497765-00001 497765-1 5025-A 5025A 705025-0000A 705025-A 705025A 715003 720719 720719-00001 720719-1 962067-00001 962067-1 VH20719 VH497765-1 VH5025-A VH5025A VH705025-A VH705025A VH715003 VH720719
