Hobart 715003 Pilot Safety Valve 3/8"

SKU: 715003 1-715003 Brand:
Hobart
Availability:
In Stock
(0)
$310.36 Price reduced from $495.00
Save $184.64
Have a Question? +1 (866) 863-0907

Specifications:

  • [Nat/Lp ] [ 3/8" Fpt] [ Safety ] [ 1/8" Fpt Pilot In/Out ]
  • [ Width 2-1/2" ] [ 163,000 Btu ][ Brand Baso ]
  • [ Mfg# H15Ar-3 ]
  • Vulcan/Wolf
  • Oven Ch & Chss (From 1980-89) Gh, F, Fs.
  • New Style Has Thermocouple Inlet 90 Degrees To Gas In/Out.
  • Product Change: Baso Has Changed This Valve.
  • They Turned The Thermocouple Hole 90 Deg.
  • It Now Is On The Right Side When Facing The Gas Inlet.
  • - Not On The End.

Description

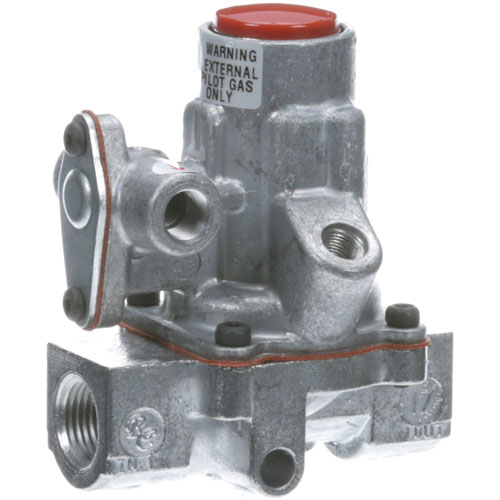

The Hobart 715003 Pilot Safety Valve 3/8" is a flame safety component designed for commercial gas-fired appliances. It regulates the flow of gas to the pilot burner and stops the flow of gas when the pilot flame is not lit. It uses a safety sensing system to ensure the internal valve opens only when the flame is ignited. Installed in the pilot gas line between the gas supply and pilot assembly with a 3/8" connection. It is designed to assist in the controlled pilot operation and to improve the safety of the burner ignition and operation of the system.

Dimensions:

  • Weight: 0.8 lbs
  • Length: 3.25 in
  • Height: 2.25 in
  • Width: 3 in

HOBART:

00-497765-00001 00-705025-0000A 00-720719-00001 15003 20719 497765-00001 497765-1 5025-A 5025A 705025-0000A 705025-A 720719-00001 720719-1

JOHNSON CONTROLS:

H15AR-3C

VULCAN HART:

00-497765-00001 00-705025-0000A 00-720719-00001 00-962067-00001 15003 20719 497765-00001 497765-1 5025-A 5025A 705025-0000A 705025-A 705025A 720719 720719-00001 720719-1 962067-00001 962067-1 VH20719 VH497765-1 VH5025-A VH5025A VH705025-A VH705025A VH715003 VH720719
