Hobart 5025-A Pilot Safety Valve 3/8"

SKU: 5025-A 1-5025-A Brand:
Hobart
Availability:
In Stock
(0)
$310.36 Price reduced from $495.00
Save $184.64
Have a Question? +1 (866) 863-0907

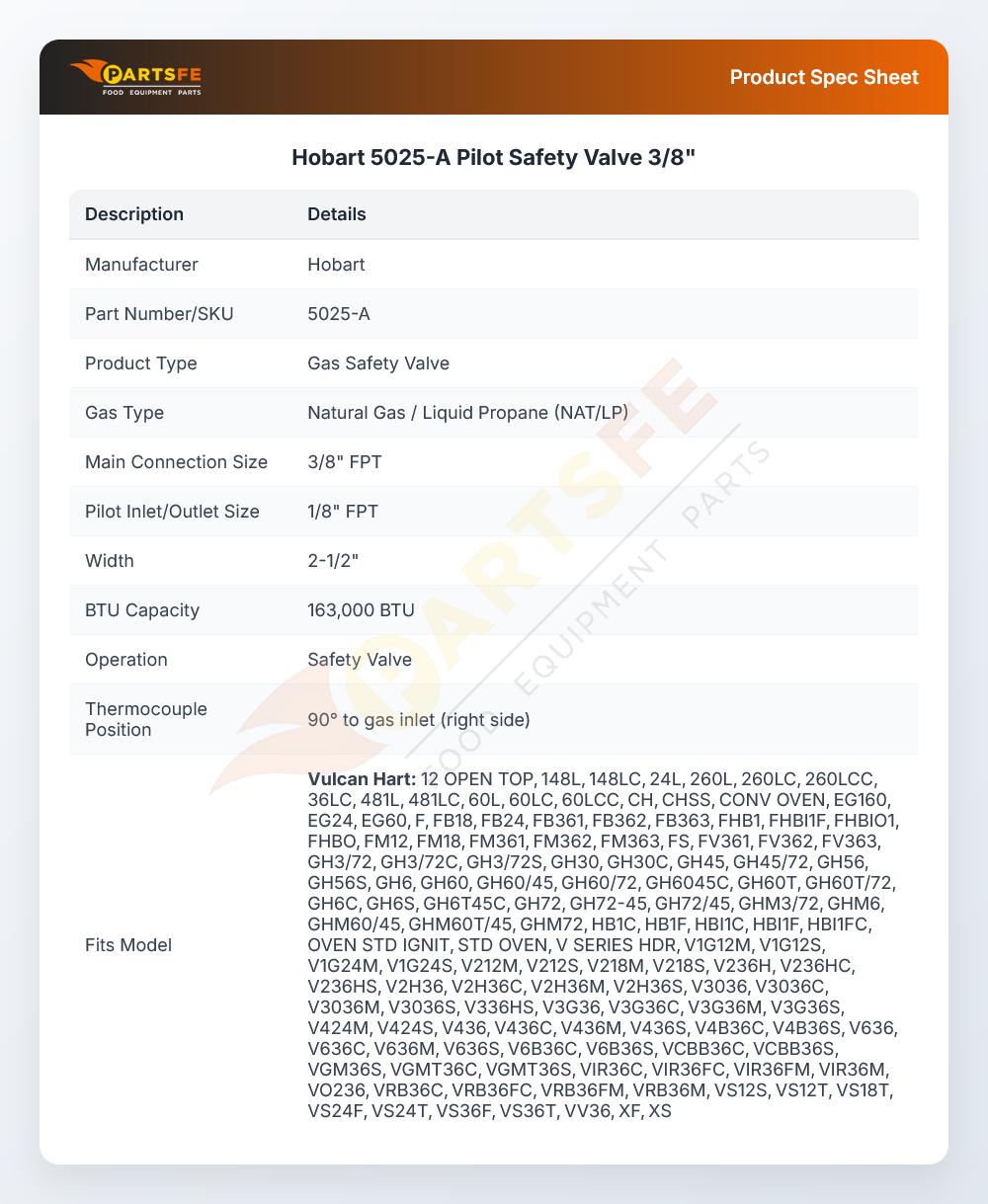

Specifications:

  • [Nat/Lp ] [ 3/8" Fpt] [ Safety ] [ 1/8" Fpt Pilot In/Out ]
  • [ Width 2-1/2" ] [ 163,000 Btu ][ Brand Baso ]
  • [ Mfg# H15Ar-3 ]
  • Vulcan/Wolf
  • Oven Ch & Chss (From 1980-89) Gh, F, Fs.
  • New Style Has Thermocouple Inlet 90 Degrees To Gas In/Out.
  • Product Change: Baso Has Changed This Valve.
  • They Turned The Thermocouple Hole 90 Deg.
  • It Now Is On The Right Side When Facing The Gas Inlet.
  • - Not On The End.

Description

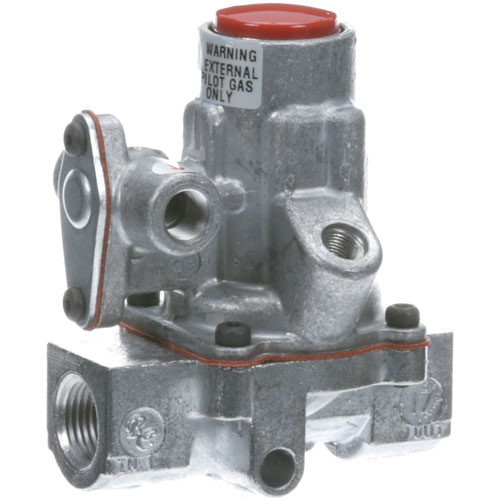

The Hobart 5025-A Pilot Safety Valve is a gas control mechanism that manages fuel flow according to flame status in commercial cooking systems. Its thermocouple-operated mechanism senses heat from the pilot flame and allows gas to pass only while the flame remains active. The valve automatically closes to interrupt the gas flow. Installed within the gas supply system using 3/8-inch connections, it supports accurate ignition performance provides secure operation, and minimizes the risk of unburned gas accumulation.

Dimensions:

  • Weight: 0.8 lbs
  • Length: 3.25 in
  • Height: 2.25 in
  • Width: 3 in

HOBART:

00-497765-00001 00-705025-0000A 00-720719-00001 15003 20719 497765-00001 497765-1 5025A 705025-0000A 705025-A 715003 720719-00001 720719-1

JOHNSON CONTROLS:

H15AR-3C

VULCAN HART:

00-497765-00001 00-705025-0000A 00-720719-00001 00-962067-00001 15003 20719 497765-00001 497765-1 5025A 705025-0000A 705025-A 705025A 715003 720719 720719-00001 720719-1 962067-00001 962067-1 VH20719 VH497765-1 VH5025-A VH5025A VH705025-A VH705025A VH715003 VH720719
