Hobart 705025-A Pilot Safety Valve 3/8"

SKU: 705025-A 1-705025-A Brand:
Hobart
Availability:
In Stock
(0)
$310.36 Price reduced from $495.00
Save $184.64
Have a Question? +1 (866) 863-0907

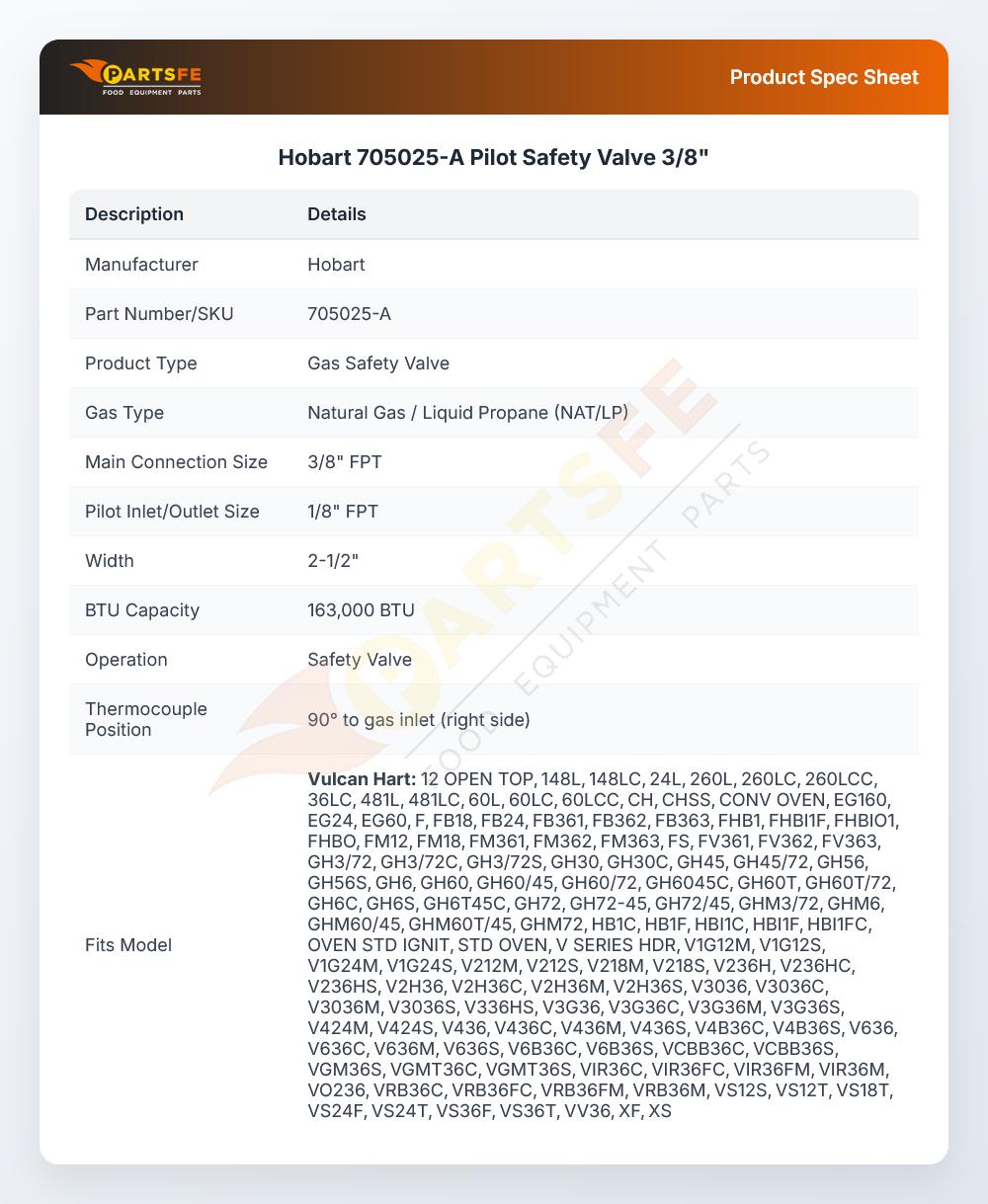

Specifications:

  • [Nat/Lp ] [ 3/8" Fpt] [ Safety ] [ 1/8" Fpt Pilot In/Out ]
  • [ Width 2-1/2" ] [ 163,000 Btu ][ Brand Baso ]
  • [ Mfg# H15Ar-3 ]
  • Vulcan/Wolf
  • Oven Ch & Chss (From 1980-89) Gh, F, Fs.
  • New Style Has Thermocouple Inlet 90 Degrees To Gas In/Out.
  • Product Change: Baso Has Changed This Valve.
  • They Turned The Thermocouple Hole 90 Deg.
  • It Now Is On The Right Side When Facing The Gas Inlet.
  • - Not On The End.

Description

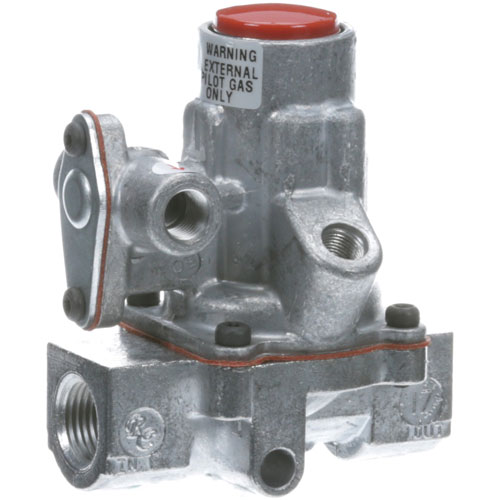

The Hobart 705025-A Pilot Safety Valve 3/8" is a pilot gas regulation component designed for commercial gas equipment. It provides gas to the pilot burner and includes a safety feature that shuts off gas if the pilot flame goes out. Its valve is designed to open when the pilot flame is properly lit and to shut when the pilot flame is out by means of an integral safety mechanism. It is mounted in the gas piping assembly of the system and is wired to the pilot burner circuit. It is used to control the flow of pilot gas and ensure secure operating conditions during ignition.

Dimensions:

  • Weight: 0.8 lbs
  • Length: 3.25 in
  • Height: 2.25 in
  • Width: 3 in

HOBART:

00-497765-00001 00-705025-0000A 00-720719-00001 15003 20719 497765-00001 497765-1 5025-A 5025A 705025-0000A 715003 720719-00001 720719-1

JOHNSON CONTROLS:

H15AR-3C

VULCAN HART:

00-497765-00001 00-705025-0000A 00-720719-00001 00-962067-00001 15003 20719 497765-00001 497765-1 5025-A 5025A 705025-0000A 705025A 715003 720719 720719-00001 720719-1 962067-00001 962067-1 VH20719 VH497765-1 VH5025-A VH5025A VH705025-A VH705025A VH715003 VH720719
