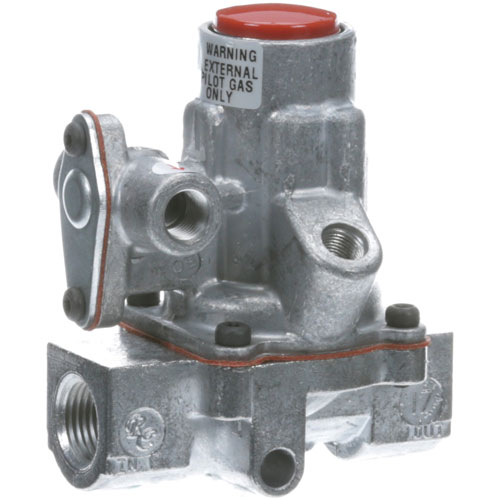

Hobart 497765-1 Pilot Safety Valve 3/8"

SKU: 497765-1 1-497765-1 Brand:
Hobart
Availability:
In Stock
(0)
$310.36 Price reduced from $495.00
Save $184.64
Have a Question? +1 (866) 863-0907

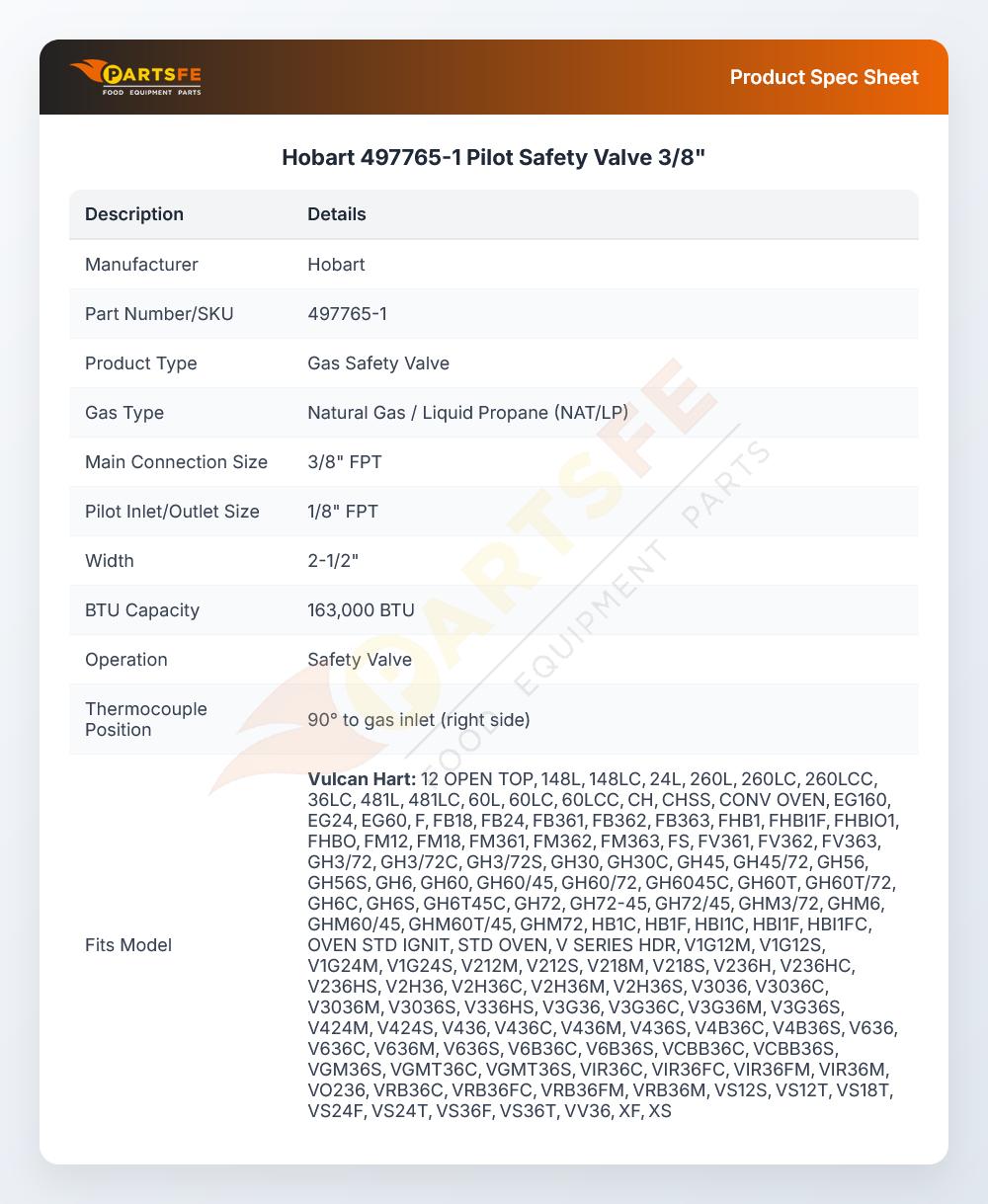

Specifications:

  • [Nat/Lp ] [ 3/8" Fpt] [ Safety ] [ 1/8" Fpt Pilot In/Out ]
  • [ Width 2-1/2" ] [ 163,000 Btu ][ Brand Baso ]
  • [ Mfg# H15Ar-3 ]
  • Vulcan/Wolf
  • Oven Ch & Chss (From 1980-89) Gh, F, Fs.
  • New Style Has Thermocouple Inlet 90 Degrees To Gas In/Out.
  • Product Change: Baso Has Changed This Valve.
  • They Turned The Thermocouple Hole 90 Deg.
  • It Now Is On The Right Side When Facing The Gas Inlet.
  • - Not On The End.

Description

The Hobart 497765-1 Pilot Safety Valve is a gas safety control component designed to monitor pilot flame operation and regulate fuel delivery in commercial gas equipment. It works through a thermocouple-based system that keeps the valve open when the pilot flame is present and automatically shuts off gas flow if the flame is lost. Installed within the gas control assembly using 3/8-inch fittings, it ensures maintaining proper ignition conditions, supports efficient burner operation and assists in preventing unwanted gas flow during equipment use.

Dimensions:

  • Weight: 0.8 lbs
  • Length: 3.25 in
  • Height: 2.25 in
  • Width: 3 in

HOBART:

00-497765-00001 00-705025-0000A 00-720719-00001 15003 20719 497765-00001 5025-A 5025A 705025-0000A 705025-A 715003 720719-00001 720719-1

JOHNSON CONTROLS:

H15AR-3C

VULCAN HART:

00-497765-00001 00-705025-0000A 00-720719-00001 00-962067-00001 15003 20719 497765-00001 5025-A 5025A 705025-0000A 705025-A 705025A 715003 720719 720719-00001 720719-1 962067-00001 962067-1 VH20719 VH497765-1 VH5025-A VH5025A VH705025-A VH705025A VH715003 VH720719
