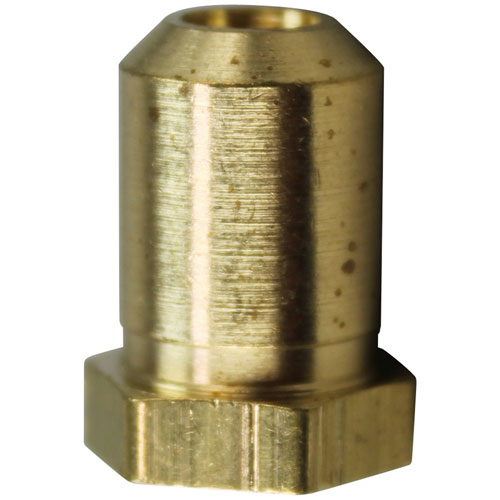

Garland 223242-50 Char Broiler Orifice #50 3/8"-27 X 1/2" High

SKU: 223242-50 1-223242-50 Brand:
Garland
Availability:
Out of Stock
(0)
$6.00
Have a Question? +1 (866) 863-0907

Specifications:

  • Brass Hood Orifice,
  • 3/8"-27 X 1/2" High X #50
  • American Range Broiler Aecb
  • Garland / Us Range Oven 836 Cuisine (Lp)
  • Imperial Broiler Series: Eba, Irb.
  • Oven Series: Icv, Icvd. (Lp)
  • Star Broiler Where Applicable. Fryer 630F
  • Us Range Broiler Pma/Rb-36, Rb-26.
  • Series: 1000 Front Burner, Rba (Used For Nat Gas).
  • Fryer Rcf-(2424,2448).
  • Oven Series: 836 Cuisine Standard Ovens,
  • Performer Ii Convection Ovens With S/N Beginning With "V".
  • Range Sp-1855 Small Burner, Tr H Shaped Burner.

Description

The Garland 223242-50 Char Broiler Orifice with brass hood is a gas metering device that is used to regulate the amount of fuel used in commercial cooking appliances. It operates by maintaining the level of gas supplied by the valve to the burner at a precise level so that the flame performance remains constant throughout the operation. This opening is fitted to ranges and ovens that take liquid propane, and it is directly inserted into the burner assembly. In the gas system of the appliance it is vital for the proper combustion process.

Dimensions:

  • Weight: 0.02 lbs
  • Length: 0.75 in
  • Height: 0.75 in
  • Width: 0.25 in

AMERICAN RANGE:

11050 A29004

APW WYOTT:

2066850 AS-2066850

ATOSA:

301040007

GARLAND:

1020850 M8-50

GLASS MAID:

8-50

HOBART:

00-418051-00050 00-719951-00050 19951-50 418051-00050 418051-50 719951-00050 719951-50 71995150

IMPERIAL:

1700-50 2065

ROYAL RANGE:

1121-50 1122-50

SOUTHBEND:

1006450 1008750

STAR MFG:

2J-Z3033 E6-Y9943 Y9943 Z3033

STERO:

STA2J-Z3033 STAZ3033

VULCAN HART:

00-418051-00050 00-719951-00050 19951-50 418051-00050 418051-50 719951-00050 719951-50 71995150 VH19951-50 VH719951-50

Step1: Turn off the main gas supply before starting.

Step2: Remove the old orifice from the burner assembly.

Step3: Clean the orifice port and surrounding area to remove debris.

Step4: Install the new orifice in the same orientation, ensuring a snug fit.

Step5: Reconnect gas lines and tighten fittings securely.

Step6: Turn on gas slowly and test burner flame for proper operation.

  • What maintenance is required for the Garland 223242-50 Orifice?

    Regularly inspect and clean the orifice to remove debris that could block gas flow. Proper care assists in maintaining consistent flame output and stable operation.

  • What are common issues with the Garland 223242-50 Orifice?

    • Blockages reduce gas flow.
    • Irregular or weak flame output.
    • Orifice wear is affecting accuracy.
    • Gas pressure inconsistencies.
    • Debris accumulation inside the opening.
    • Performance fluctuations during use.
