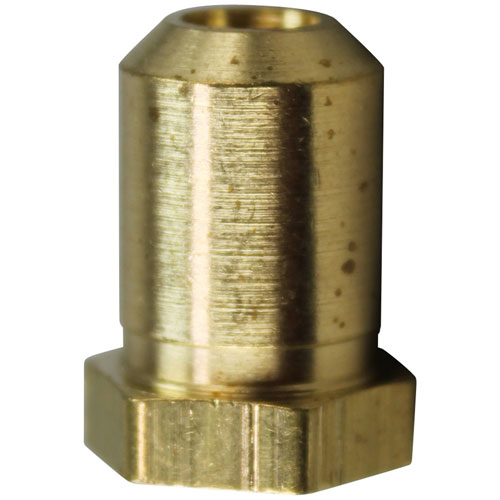

Southbend 1006450 Hood Orifice Brass #50 3/8"-27 X 1/2" High

SKU: 1006450 1-1006450 Brand:
Southbend
Availability:
Out of Stock
(0)
$6.00
Have a Question? +1 (866) 863-0907

Specifications:

  • Brass Hood Orifice,
  • 3/8"-27 X 1/2" High X #50
  • American Range Broiler Aecb
  • Garland / Us Range Oven 836 Cuisine (Lp)
  • Imperial Broiler Series: Eba, Irb.
  • Oven Series: Icv, Icvd. (Lp)
  • Star Broiler Where Applicable. Fryer 630F
  • Us Range Broiler Pma/Rb-36, Rb-26.
  • Series: 1000 Front Burner, Rba (Used For Nat Gas).
  • Fryer Rcf-(2424,2448).
  • Oven Series: 836 Cuisine Standard Ovens,
  • Performer Ii Convection Ovens With S/N Beginning With "V".
  • Range Sp-1855 Small Burner, Tr H Shaped Burner.

Description

The Southbend 1006450 Hood Orifice Brass #50 3/8"-27 X 1/2" High component regulates gas flow within compatible commercial cooking equipment by directing fuel, through a calibrated opening toward the burner assembly. It operates as part of the gas distribution system, allowing controlled flame output during heating and cooking processes. The orifice is installed between the gas supply connection and burner section where it supports, measured fuel delivery for coordinated combustion conditions. Its role within the system contributes to stable gas regulation, balanced burner operation and consistent heating performance in commercial kitchen applications.

Dimensions:

  • Weight: 0.02 lbs
  • Length: 0.75 in
  • Height: 0.75 in
  • Width: 0.25 in

Controls and meters gas flow to the burner in commercial cooking equipment, helping maintain the fuel supply required for proper flame operation. The Southbend 1006450 Gas Orifice features a No. 50 precision opening with a brass hood, 3/8"-27 threaded connection, and 1/2" height for the specified burner configuration. An incorrect, clogged, or damaged orifice can affect gas flow, flame consistency, and heating performance. Installing the correct orifice can help restore proper fuel delivery and reliable burner operation.

Equipment Compatibility:
Designed for use with commercial cooking equipment requiring a No. 50 gas orifice with a 3/8"-27 connection and 1/2" height, including compatible applications from APW, American Range, Atosa, Garland, Imperial, Royal Range, Southbend, Star Mfg, and Vulcan Hart.

Brand Compatibility:
Compatible with equipment from American Range, APW Wyott, Atosa, Garland, Glass Maid, Hobart, Imperial, Royal Range, Southbend, Star Mfg, Stero, and Vulcan Hart using the specified orifice.

Product Specifications:
SKU: 1006450
Manufacturer: Southbend
Product Type: Gas Orifice
Orifice Size: 50
Material: Brass Hood
Connection Size: 3/8"-27
Height: 1/2"

Key Features:

  • Meters gas flow to the burner for controlled fuel delivery.
  • Features a No. 50 precision metering opening.
  • Includes a brass hood with a 3/8"-27 threaded connection.
  • Measures 1/2" in height for the specified burner configuration.
  • Supports consistent fuel delivery and burner operation.
  • Customer Feedback:
  • Uneven flame performance improved after the incorrect or worn orifice was replaced, and the burner maintained more consistent gas flow during operation.

AMERICAN RANGE:

11050 A29004

APW WYOTT:

2066850 AS-2066850

ATOSA:

301040007

GARLAND:

1020850 223242-50 M8-50

GLASS MAID:

8-50

HOBART:

00-418051-00050 00-719951-00050 19951-50 418051-00050 418051-50 719951-00050 719951-50 71995150

IMPERIAL:

1700-50 2065

ROYAL RANGE:

1121-50 1122-50

SOUTHBEND:

1008750

STAR MFG:

2J-Z3033 E6-Y9943 Y9943 Z3033

STERO:

STA2J-Z3033 STAZ3033

VULCAN HART:

00-418051-00050 00-719951-00050 19951-50 418051-00050 418051-50 719951-00050 719951-50 71995150 VH19951-50 VH719951-50
