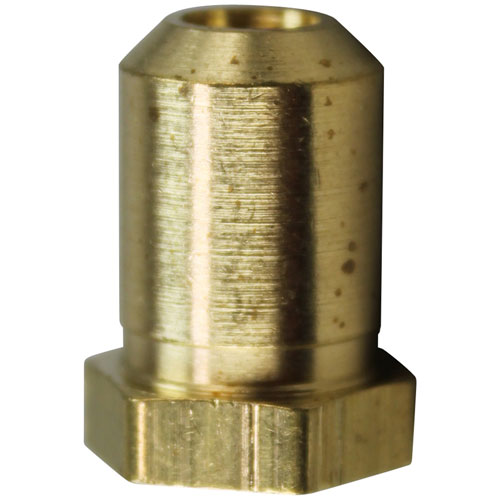

Star Mfg 2J-Z3033 Char Broiler Burner Orifice LP #50 3/8"-27 X 1/2"

SKU: 2J-Z3033 1-2J-Z3033 Brand:
Star Mfg
Availability:
In Stock
(0)
$17.60
Have a Question? +1 (866) 863-0907

Specifications:

  • Brass Hood Orifice,
  • 3/8"-27 X 1/2" High X #50
  • American Range Broiler Aecb
  • Garland / Us Range Oven 836 Cuisine (Lp)
  • Imperial Broiler Series: Eba, Irb.
  • Oven Series: Icv, Icvd. (Lp)
  • Star Broiler Where Applicable. Fryer 630F
  • Us Range Broiler Pma/Rb-36, Rb-26.
  • Series: 1000 Front Burner, Rba (Used For Nat Gas).
  • Fryer Rcf-(2424,2448).
  • Oven Series: 836 Cuisine Standard Ovens,
  • Performer Ii Convection Ovens With S/N Beginning With "V".
  • Range Sp-1855 Small Burner, Tr H Shaped Burner.

Description

Star Mfg 2J-Z3033 Char Broiler Burner Orifice 50 with brass hood is a gas metering element that is used in commercial broilers that are fed on propane. It works by regulating the amount of fuel that passes through the gas valve to the burner to control the intensity of the flames and the amount of heat emitted during cooking. This opening is attached to the burner assembly of compatible Star broilers, and this provides a fit with the appliance. In the gas delivery system, it is essential to ensure proper combustion of gas and ensure even heating.

Dimensions:

  • Weight: 0.02 lbs
  • Length: 0.75 in
  • Height: 0.75 in
  • Width: 0.25 in

AMERICAN RANGE:

11050 A29004

APW WYOTT:

2066850 AS-2066850

ATOSA:

301040007

GARLAND:

1020850 223242-50 M8-50

GLASS MAID:

8-50

HOBART:

00-418051-00050 00-719951-00050 19951-50 418051-00050 418051-50 719951-00050 719951-50 71995150

IMPERIAL:

1700-50 2065

ROYAL RANGE:

1121-50 1122-50

SOUTHBEND:

1006450 1008750

STAR MFG:

E6-Y9943 Y9943 Z3033

STERO:

STA2J-Z3033 STAZ3033

VULCAN HART:

00-418051-00050 00-719951-00050 19951-50 418051-00050 418051-50 719951-00050 719951-50 71995150 VH19951-50 VH719951-50

Step1: Turn off gas and electrical power supply for safety.

Step2: Remove appliance front access panel carefully.

Step3: Unscrew and remove old orifice using correct tool.

Step4: Inspect burner, seat, and threads for damage or debris.

Step5: Install new orifice and tighten securely.

Step6: Check alignment, ensure proper seating and gas line connections.

Step7: Restore gas supply, test for leaks with soapy water, then ignite safely.

  • What maintenance is required for the Star Mfg 2J-Z3033 Orifice?

    • Inspect the orifice and hood for clogging or wear regularly build-up.
    • Clean with proper solvents and ensure proper fuel flow alignment checks performed.
    • Regular inspection can maintain better efficient burner operation overall consistently.

  • What are common issues with the Star Mfg 2J-Z3033 Orifice?

    • Uneven gas flow or flame instability.
    • Clogging due to carbon or grease buildup.
    • Thread damage causing poor fitting or leaks.
    • Wear or corrosion of hood affecting performance.
