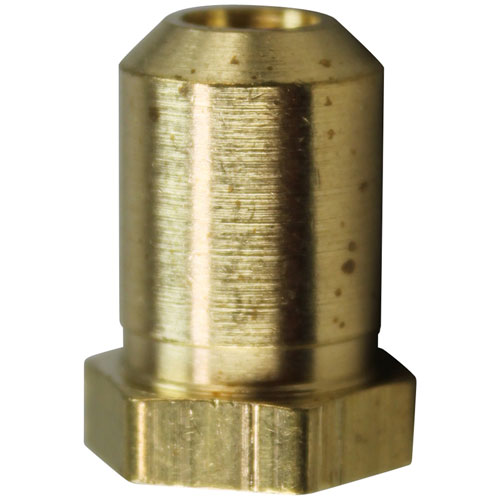

Imperial 2065 Charbroiler Burner Orifice #50 3/8"-27 X 1/2" High

SKU: 2065 1-2065 Brand:
Imperial
Availability:
In Stock
(1)
$14.63
Have a Question? +1 (866) 863-0907

Specifications:

  • Brass Hood Orifice,
  • 3/8"-27 X 1/2" High X #50
  • American Range Broiler Aecb
  • Garland / Us Range Oven 836 Cuisine (Lp)
  • Imperial Broiler Series: Eba, Irb.
  • Oven Series: Icv, Icvd. (Lp)
  • Star Broiler Where Applicable. Fryer 630F
  • Us Range Broiler Pma/Rb-36, Rb-26.
  • Series: 1000 Front Burner, Rba (Used For Nat Gas).
  • Fryer Rcf-(2424,2448).
  • Oven Series: 836 Cuisine Standard Ovens,
  • Performer Ii Convection Ovens With S/N Beginning With "V".
  • Range Sp-1855 Small Burner, Tr H Shaped Burner.

Description

The Imperial 2065 Charbroiler Burner Orifice #50 meters natural gas flow to a burner by limiting fuel flow through a small aperture in the fuel flow and assists features in that application. The gas passes through the calibrated hole, which determines the volume that passes at a certain pressure to assemble the combustion hood properly to cooking equipment where the 3/8 in.-27 inlet and 1/2 in. Height requirements are compatible, this hood outlet is compatible with systems to be used in that particular #50 configuration in commercial ranges and ovens.

Dimensions:

  • Weight: 0.02 lbs
  • Length: 0.75 in
  • Height: 0.75 in
  • Width: 0.25 in

AMERICAN RANGE:

11050 A29004

APW WYOTT:

2066850 AS-2066850

ATOSA:

301040007

GARLAND:

1020850 223242-50 M8-50

GLASS MAID:

8-50

HOBART:

00-418051-00050 00-719951-00050 19951-50 418051-00050 418051-50 719951-00050 719951-50 71995150

IMPERIAL:

1700-50

ROYAL RANGE:

1121-50 1122-50

SOUTHBEND:

1006450 1008750

STAR MFG:

2J-Z3033 E6-Y9943 Y9943 Z3033

STERO:

STA2J-Z3033 STAZ3033

VULCAN HART:

00-418051-00050 00-719951-00050 19951-50 418051-00050 418051-50 719951-00050 719951-50 71995150 VH19951-50 VH719951-50

Step1: Turn off gas supply and allow appliance to cool and disconnect power if applicable.

Step2: Remove burner assembly access panel.

Step3: Unscrew existing orifice from manifold using correct tool.

Step4: Install new orifice securely, hand-tight then torque.

Step5: Reassemble burner components and ensure alignment.

Step6: Restore gas, test ignition and check for leaks with soap solution ensure no leaks before use.

  • What maintenance is required for the Imperial 2065 Orifice?

    Clean the orifice opening regularly to prevent carbon buildup and gas flow restriction. Inspect the hood for wear or corrosion during regular service. Proper maintenance ensures consistent flame performance and better operation of the appliance.

  • What are common issues with the Imperial 2065 Orifice?

    • Hood loosening leading to unstable gas flow.
    • Carbon buildup reducing efficiency and ignition accuracy.
    • Incorrect gas flow resulting in inconsistent heating performance.
    • Clogged orifice causing uneven flame or weak burner output.

Customer Reviews

5 Based on 1 reviews
5 ★
1
4 ★
0
3 ★
0
2 ★
0
1 ★
0
1 review
  • Excellent Reliability
    Jeff —

    Effective and efficient, works well
