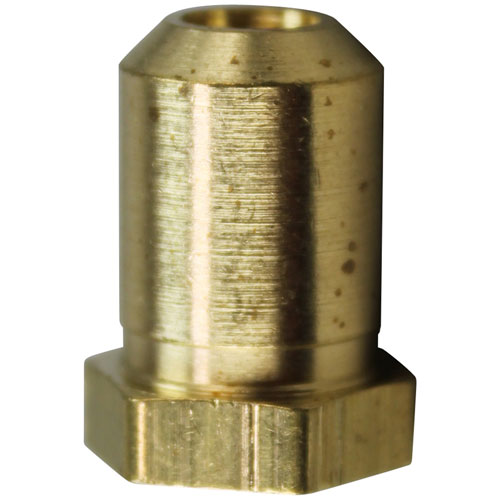

American Range A29004 Orifice Hood Brass #50

SKU: A29004 1-A29004 Brand:
American Range
Availability:
In Stock
(0)
$6.22
Have a Question? +1 (866) 863-0907

Specifications:

  • Brass Hood Orifice,
  • 3/8"-27 X 1/2" High X #50
  • American Range Broiler Aecb
  • Garland / Us Range Oven 836 Cuisine (Lp)
  • Imperial Broiler Series: Eba, Irb.
  • Oven Series: Icv, Icvd. (Lp)
  • Star Broiler Where Applicable. Fryer 630F
  • Us Range Broiler Pma/Rb-36, Rb-26.
  • Series: 1000 Front Burner, Rba (Used For Nat Gas).
  • Fryer Rcf-(2424,2448).
  • Oven Series: 836 Cuisine Standard Ovens,
  • Performer Ii Convection Ovens With S/N Beginning With "V".
  • Range Sp-1855 Small Burner, Tr H Shaped Burner.

Description

The American Range A29004 Orifice Hood Brass #50 is used to control the quantity of gas that goes to the burner by flowing the fuel through a hole of a specific size. It is made of brass to ensure proper gas flow to aid proper air and fuel mixture during combustion. It is connected to the burner assembly at the specified point of connection, and it is positioned accordingly with the manifold. In the range system, it assists in the stable flame properties, controlled fuel distribution, and assists in the uniform cooking performance of commercial kitchen equipment.

Dimensions:

  • Weight: 0.02 lbs
  • Length: 0.75 in
  • Height: 0.75 in
  • Width: 0.25 in

AMERICAN RANGE:

11050

APW WYOTT:

2066850 AS-2066850

ATOSA:

301040007

GARLAND:

1020850 223242-50 M8-50

GLASS MAID:

8-50

HOBART:

00-418051-00050 00-719951-00050 19951-50 418051-00050 418051-50 719951-00050 719951-50 71995150

IMPERIAL:

1700-50 2065

ROYAL RANGE:

1121-50 1122-50

SOUTHBEND:

1006450 1008750

STAR MFG:

2J-Z3033 E6-Y9943 Y9943 Z3033

STERO:

STA2J-Z3033 STAZ3033

VULCAN HART:

00-418051-00050 00-719951-00050 19951-50 418051-00050 418051-50 719951-00050 719951-50 71995150 VH19951-50 VH719951-50

Step1: Turn off gas supply and allow appliance to cool.

Step2: Remove burner assembly carefully using correct tools.

Step3: Unscrew old orifice from manifold.

Step4: Inspect threads and clean debris.

Step5: Install orifice hand-tight, then secure.

Step6: Reassemble burner components.

Step7: Turn gas on, check for leaks with soapy water.

  • What maintenance is required for the American Range A29004 Orifice?

    Inspect the orifice regularly for grease buildup and clogging. Clean using a soft brush and proper degreaser to maintain consistent gas flow. Ensure tight threading to prevent leaks and check burner performance periodically for safety.

  • What are common issues with the American Range A29004 Orifice?

    • Irregular gas flow causing uneven flame.
    • Thread wear leading to gas leaks.
    • Incorrect sizing causing poor combustion.
    • Partial blockage reducing burner efficiency.
    • Loose fitting causing intermittent operation.
