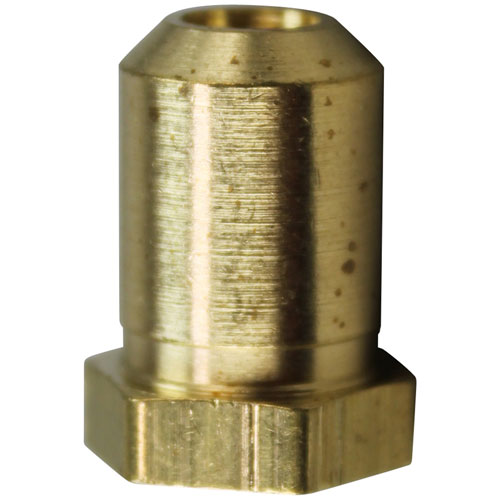

ATOSA 301040007 Charbroiler Orifice #50

SKU: 301040007 1-301040007 Brand:
ATOSA
Availability:
Out of Stock
(1)
$6.00
Have a Question? +1 (866) 863-0907

Specifications:

  • Brass Hood Orifice,
  • 3/8"-27 X 1/2" High X #50
  • American Range Broiler Aecb
  • Garland / Us Range Oven 836 Cuisine (Lp)
  • Imperial Broiler Series: Eba, Irb.
  • Oven Series: Icv, Icvd. (Lp)
  • Star Broiler Where Applicable. Fryer 630F
  • Us Range Broiler Pma/Rb-36, Rb-26.
  • Series: 1000 Front Burner, Rba (Used For Nat Gas).
  • Fryer Rcf-(2424,2448).
  • Oven Series: 836 Cuisine Standard Ovens,
  • Performer Ii Convection Ovens With S/N Beginning With "V".
  • Range Sp-1855 Small Burner, Tr H Shaped Burner.

Description

The ATOSA 301040007 Charbroiler Orifice #50 is a part that regulates the flow of gas to burner ports. The calibrated opening and shape of the brass hood control the amount and direction of gas that is introduced to the burner to maintain, the size and level of the flame and the amount of heat generated. It enters the burner manifold or jet holder and matches with the combustion ports. It assists in the maintenance of a proper flow of gas.

Dimensions:

  • Weight: 0.02 lbs
  • Length: 0.75 in
  • Height: 0.75 in
  • Width: 0.25 in

AMERICAN RANGE:

11050 A29004

APW WYOTT:

2066850 AS-2066850

GARLAND:

1020850 223242-50 M8-50

GLASS MAID:

8-50

HOBART:

00-418051-00050 00-719951-00050 19951-50 418051-00050 418051-50 719951-00050 719951-50 71995150

IMPERIAL:

1700-50 2065

ROYAL RANGE:

1121-50 1122-50

SOUTHBEND:

1006450 1008750

STAR MFG:

2J-Z3033 E6-Y9943 Y9943 Z3033

STERO:

STA2J-Z3033 STAZ3033

VULCAN HART:

00-418051-00050 00-719951-00050 19951-50 418051-00050 418051-50 719951-00050 719951-50 71995150 VH19951-50 VH719951-50

Step1: Turn off gas supply and electrical power; allow appliance to fully cool before starting.

Step2: Remove burner assembly carefully, then unscrew existing orifice using correct tool.

Step3: Install new orifice, ensuring threads are properly aligned before tightening.

Step4: Tighten securely without over-tightening to prevent damage to components.

Step5: Reassemble burner components and verify alignment for proper gas flow operation.

Step6: Turn gas back on slowly and test all connections using soap solution for leaks.

  • What maintenance is required for the ATOSA 301040007 Orifice?

    Clean the orifice regularly to prevent carbon buildup and gas flow restriction. Ensure tight and proper installation to maintain stable performance. Always turn off the gas supply before performing any maintenance for safety.

  • What are common issues with the ATOSA 301040007 Orifice?

    • Blocked orifice causing weak or uneven flame output.
    • Gas leakage from improper fitting or loose installation.
    • Corrosion of brass affecting performance stability.
    • Irregular combustion leading to ignition delays or flame fluctuations.
