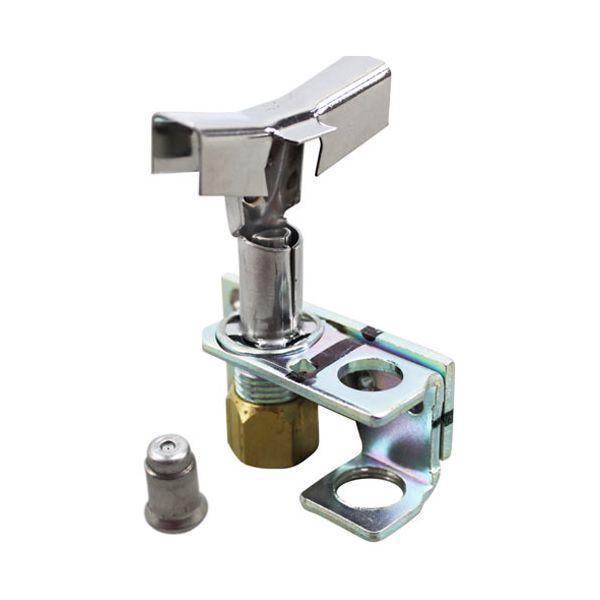

main product photo

ROYAL RANGE 3232 Fryer NAT/LP Pilot 3-Way Flame 1/4" Tube

Be the first to review this product
Special Price $28.50 Regular Price $37.01
In stock
SKU
3232
Add to Wish List
Griddle & Grill Parts, Pilot Burners,
Manufacturer:
The ROYAL‍ RANGE 3232 Fryer Pilot 3-Way Flame 1/4" Tube is an essential assembly designed for use in commercial equipment operating with either natural gas or li‌qui‌d propane systems. This compone‍nt‍ controls and directs to support a stable ignition and‌ consistent burner operation within the unit. Installed as part of‍ the system it distributes flow to maintain prope‍r performance during‍ cooking operations. It is commonly used in restaurant kitchens, food service stations and commercial kitchen conditions where stable heat control and‍ continuous performance are required for food prepara‍tio‍n requirements.

Dimensions

  • Length: 1.75 In
  • Width: 2 In
  • Height: 2.5 In
  • Weight: 0.2 lbs
https://partsfe.com/media/catalog/product/r/o/royal-range-3232-1-4-tube-nat-lp-pilot-3-way-flame-63398-2.jpg

Product Notes

  • Nat/Lp Pilot, Factory # 6Ch14-10, 1830-491
  • Tube Size 1/4", Flame Pattern 3 Way, Hood Width 1-1/2"
  • Nat Orifice Pre-Installed # 26-1555, .018
  • Lp Orifice Included # 26-1554, .010
  • Cecilware Fryer Fmp 30, 40B, 403, 65, Fms 30, 54
  • Imperial Fryer Series: If, Ihr, Ir.
  • Vulcan Hart
  • Fryer Gf(91G,92G), Hf91G, Hf92G (Old 7891G & 7892G),Tk-35,
  • Series: 7400, 7500, 7800 (Depending On Date Of
  • Model). Series: Ef
  • 1Gr45M, 1Gr65M, 1Gr85M, 1Grc35, 1Grc45, 1Grc65, 1Grd45,
  • 1Grd65, 1Grs35, 1Grs45, 1Grs65, Ef3, Ef4, Ef5, Gr35, Gr35F,
  • Gr45, Gr45F, Gr65, Gr65F, Gr85, Gr85F, Grc35F, Grc45F,
  • Grc65F, Grc85F, Grd35F, Grd45F, Grd65F, Grd85F, Grs35F,
  • Grs45F, Grs65F, Grs85F

A commercial-grade pilot burner assembly designed to support consistent ignition performance in gas fryer systems, this component ensures reliable flame stability for everyday kitchen operations. It is designed with a 3-way flame configuration that promotes uniform heat spread at the ignition point, ensuring smoother startup and stable burner operation. The integrated configuration is suitable for natural and liquid propane systems, making it a flexible replacement option across a wide range of fryer equipment used in professional kitchens. With a 1/4" tube connection and a compact hood width design of 1-1/2", this pilot assembly is engineered to deliver controlled flame output for dependable burner operation. It plays an important role in maintaining safe and efficient fryer performance, especially in systems where ignition irregularities or weak pilot flames can affect cooking consistency. Replacing a worn or clogged pilot assembly can help restore proper ignition response, reduce downtime, and support stable fryer operation in busy food service environments.

Equipment Compatibility:
For fryer ignition and pilot flame applications in commercial cooking systems, the ROYAL RANGE Pilot Burner 3232 is commonly used across a variety of gas fryer equipment setups. This Pilot Burner 3232 is compatible with commercial equipment from leading brands such as Cecilware, Imperial, Royal Range, Tri-Star, Vulcan Hart, and more, where stable pilot ignition and controlled flame performance are required for reliable operation.

Brand Compatibility:
This part replaces pilot burner components used in equipment from Cecilware, Grindmaster, Hobart, Imperial, Royal Range, Tri-Star, U-Line, Vulcan Hart, and more. Complete cross-reference details are provided separately for accurate identification.

Product Specifications:
Product Type: Fryer Pilot Burner Assembly
Manufacturer: Royal Range
SKU: 3232
Fuel Compatibility: Natural gas/propane
Connection: 1/4" tube
Flame Pattern: 3-way
Hood Width: 1-1/2"
Application: Commercial fryer ignition systems

Key Features:

  • 3-way flame design helps the fryer light up evenly and reliably.
  • Works with both natural gas and propane systems.
  • 1/4" tube connection gives a secure and steady gas flow.
  • Compact design helps keep the flame stable during use.
  • Helps fix weak or uneven pilot flames in fryers.
  • Improves safe and smooth fryer operation in busy kitchens.

“After replacing the pilot burner, the fryer lights up properly every time. The startup is much more reliable now.”

Replaces Parts
IMPERIAL:
0310, 1095-16, 1095-26, IMP1095-16, IMP1095-26
ROYAL RANGE:
TRI-STAR:
U-LINE:
1830-491, 6CH14-10
Reviews
Write Your Own Review
You're reviewing:ROYAL RANGE 3232 Fryer NAT/LP Pilot 3-Way Flame 1/4" Tube
Your Rating
FAQS
Customer Questions
What is the Best Electric Griddle?

Electric Griddle is an electronic equipment that uses an electric element as its heat source. It has a large cooking surface often made up of nonstick material. Electric Griddle has a surface which you do not find in the regular stovetop cookware. ...

Read More
What maintenance is required for the ROYAL RANGE 3232 Pilot?

Inspect the pilot assembly regularly for carbon buildup or blockages and clean gently to maintain proper gas flow. Ensure secure tubing connections and verify flame stability during operation. Routine maintenance helps prevent ignition issues and supports efficient combustion. Always shut off gas before servicing.

What are common issues with the ROYAL RANGE 3232 Pilot?

  • Inconsistent or flickering flame.
  • Failure to ignite burner properly.
  • Gas pressure irregularities.
  • Loose or leaking tube connections.
  • Pilot flame extinguishing unexpectedly.
  • Carbon buildup affecting performance.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Turn off main gas supply and allow unit to cool.

Step2: Remove existing pilot carefully and inspect area.

Step3: Position new pilot in mounting bracket securely.

Step4: Connect gas line securely and ensure proper fit.

Step5: Tighten fittings and check alignment of flame ports.

Step6: Restore gas and test flame pattern at low setting.
