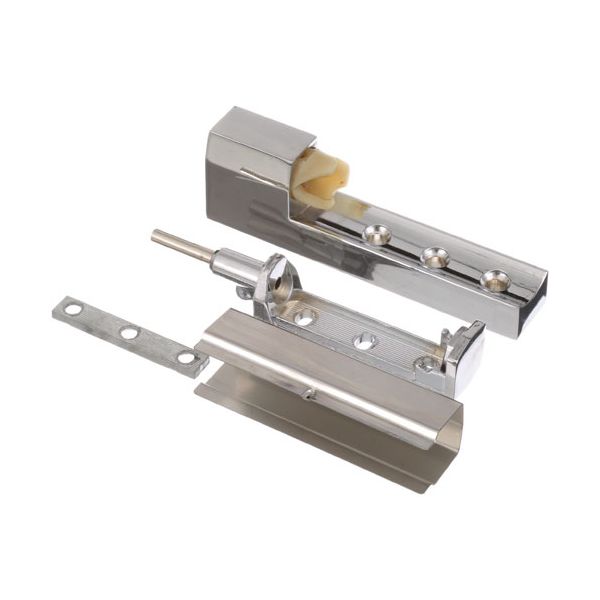

Delfield 3234750 Edgemount Cam Lift Hinge

Be the first to review this product
$18.22
In stock
SKU
3234750
Add to Wish List
Electrical & Hardware, Hinge Parts,
Manufacturer:
The Delfield 3234750 Edgemount Cam Lift Hinge is a mechanism that allows a door to open with a slight raise to decrease the drag, and it will swing smoothly. It is meant to be fitted on the side of compatible refrigeration or foodservice equipment doors, where it aids in routine opening and closing activities. This is a vital spare part to sustain proper operation of the doors in a high-pressure commercial kitchen setting and provides accurate movement and stable fixing instead of disrupting the normal operations.

Dimensions

  • Length: 6 In
  • Width: 2 In
  • Height: 1 In
  • Weight: 0.92 lbs
https://partsfe.com/media/catalog/product/d/e/delfield-3234750-edgemount-cam-lift-hinge-80086-2.jpg

Product Notes

  • Edgemount Cam Lift Hinge, Chrome, 1-5/8" Offset
  • 5-3/4" Long X 1-1/16" Wide X Frt To Back 1-3/4",
  • Screw Centers 1-1/16". Outside Mount Hole Centers 2-1/8",
  • Series 2850-1013
  • Beverage Air Dp119, Dp41, Dp46, Dp67, Dp93, Ef24, Ef24-1Ahs,
  • Ef241Ah 0001Rcn, Ef48, Ef74, Er24, Er48, Er74, Pf24, Pf48,
  • Pf74, Pfi1, Pfi2, Pr24, Pr48, Pr74, Prd24, Prd48, Prd74,
  • Prf12-12, Prf24-24, Prf48-24, Pri1, Pri2, Prt1, Prt2, Pw24,
  • Pw48, Pwd24, Pwd48, Pwi1, Pwi2, Sp27, Sp48, Sp60, Sp72, Uc,
  • Ucf27, Ucf27A, Ucf48, Ucr20, Ucr34, Wt, Wtf27, Wtf27A,Wtf48
  • Delfield, Randell, Traulsen
  • Victory Pt-40, Pt-64, Pt-88, Series 6, Series 7,
  • Ur-3, Ur-4, Ur-5, V-Series, Vpt-119, Vpt-46, Vpt-88
More Information
Disable SaleableNo
Replaces Parts
BEVERAGE AIR:
00C34-031D-01, 00C34031D01, 401-239B, 401-657B, 401657B, BEV401-239B, BEV401-657B
FOGEL:
HUSSMANN:
Reviews
Write Your Own Review
You're reviewing:Delfield 3234750 Edgemount Cam Lift Hinge
Your Rating
FAQS
Customer Questions
What maintenance is required for the Delfield 3234750 Hinge?

Inspect hinges for wear, rust, or loose screws. Lubricate pivot points to ensure smooth opening and closing. Tighten all fasteners to maintain proper door alignment and prevent misoperation.

What are common issues with the Delfield 3234750 Hinge?

  • Hinge sticking or binding.
  • Loose or stripped screws.
  • Misaligned doors are causing uneven closure.
  • Rust or corrosion affecting movement.
  • Noise during operation or squeaking.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Remove the existing hinge carefully, noting the mounting positions.

Step2: Align the new hinge with the door and frame mounting holes.

Step3: Insert screws or bolts and tighten them securely without over-torquing.

Step4: Ensure the hinge allows smooth pivoting of the door without obstruction.

Step5: Test the door operation fully, checking for alignment and clearance.

Step6: Make small adjustments as needed to ensure proper fit and operation.
