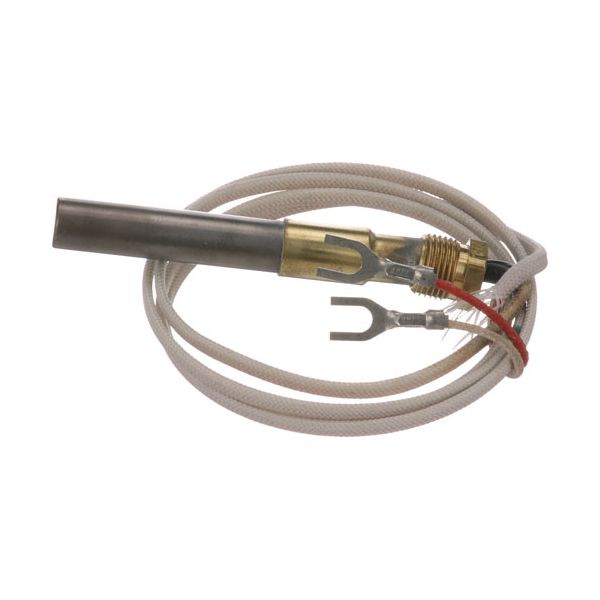

Cecilware F178AL Thermopile 2 Lead 36" 250-750 MV
Special Price $64.48 Regular Price $83.75
In stock
SKU
F178AL
Manufacturer:
The Cecilware F178AL Thermopile transforms the heat of a flame into electrical voltage, and it generates a current that measures the temperature to use in gas control systems. It has two leads and produces 250-750 millivolts that facilitate the work of burners and safety. This thermopile has a length of 36" and is intended to be installed in ovens, burners, or other gas appliances so that it can reach the source of heat and then be connected to the control circuitry. Its long shape fits well in assemblies without disrupting other components around.
Dimensions
- Length: 3.5 In
- Width: 2.5 In
- Height: 1 In
- Weight: 0.2 lbs
Product Notes
- 36" 2 Lead, Thermopile, 250-750 Mv, Robertshaw 1950-53B
- Cecilware Fryer Fmp 30, 40B, 403, 65, Fms 30, 54
- Cleveland Boiler Gas Steam Generators: W/O Probes (100,000
- Btu - 2 Burners~
- 150,000 - 3 Burners)~
- W/3 Probes (160,000
- Btu - 3 Burners~
- 200,000 - 4 Burners
- Groen Braising Pan Hfp/2. Series: Chfp, Nhfp.
- Imperial Fryer Series: If, Ihr, Ir.
- Keating Griddle Model 48Bfld
- Southbend Fryer Gfs, 4Fr-45
- Star Fryer 404A, 615Fa, 630Fa
- Tri-Star Fryer Tsf-3540, Tsf-4050, Tsf-6575
- Vulcan Fryer: Tk, Rs, Ghf (Old Hf) Gr, Grd, Grc,Grs,
- Wells Grill, Gas
- Wolf Fryer Wtf-35,
