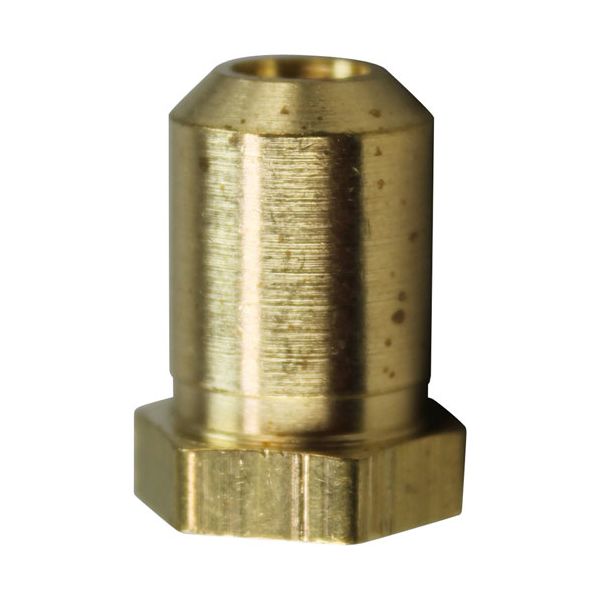

American Range A29004 Orifice Hood Brass #50

SKU: A29004 1-A29004 Brand:
American Range
Availability:
In Stock
(0)
$6.22
Have a Question? +1 (866) 863-0907

Specifications:

  • Brass Hood Orifice,
  • 3/8"-27 X 1/2" High X #50
  • American Range Broiler Aecb
  • Garland / Us Range Oven 836 Cuisine (Lp)
  • Imperial Broiler Series: Eba, Irb.
  • Oven Series: Icv, Icvd. (Lp)
  • Star Broiler Where Applicable. Fryer 630F
  • Us Range Broiler Pma/Rb-36, Rb-26.
  • Series: 1000 Front Burner, Rba (Used For Nat Gas).
  • Fryer Rcf-(2424,2448).
  • Oven Series: 836 Cuisine Standard Ovens,
  • Performer Ii Convection Ovens With S/N Beginning With "V".
  • Range Sp-1855 Small Burner, Tr H Shaped Burner.

Description

The American Range A29004 Orifice Hood Brass #50 is used to control the quantity of gas that goes to the burner by flowing the fuel through a hole of a specific size. It is made of brass to ensure proper gas flow to aid proper air and fuel mixture during combustion. It is connected to the burner assembly at the specified point of connection, and it is positioned accordingly with the manifold. In the range system, it assists in the stable flame properties, controlled fuel distribution, and assists in the uniform cooking performance of commercial kitchen equipment.

Dimensions:

  • Weight: 0.02 lbs
  • Length: 0.75 in
  • Height: 0.75 in
  • Width: 0.25 in

This Part Fits the Following Models

100 models
American Range ADJ American Range ADJF American Range AECB American Range AERB American Range AMSQ American Range ARB American Range ARCM American Range ARRB American Range ARSM American Range ARSM-24 American Range ARSM-36 APW GGM-18H APW GGM-18I APW GGM-24H APW GGM-24I APW GGM-36H APW GGM-36I APW GGM-48H APW GGM-48I APW GGT-18H APW GGT-18I APW GGT-36H Atosa ATCB-24 Atosa ATCB-36 Atosa ATCB-48 Atosa ATRC-24 Atosa ATRC-36 Atosa ATRC-48 Garland GXRN48 Garland H/P-280 Garland HP-280 SERIES Garland MCO-ED-10 Garland MCO-ED-10-S Garland MCO-ED-20 Garland MCO-ED-20-S Garland MCO-ES-10 Garland MCO-ES-10-S Garland MCO-ES-20 Garland MCO-ES-20-S Garland MCO-GD-10 Garland MCO-GD-10-S Garland MCO-GD-20 Garland MCO-GD-20-S Garland MCO-GS-10 Garland MCO-GS-10-S Garland MCO-GS-20 Garland MCO-GS-20-S Garland SP-1844-2F Garland SP-1844-2S Imperial EBA SERIES Imperial GD SERIES Imperial ICRA-1 Imperial ICRA-2 Imperial ICRA-3 Imperial ICRA-4 Imperial ICRA-5 Imperial ICV Imperial IDR-37 Imperial IDR-49 Imperial IDR-61 Imperial IGT SERIES Imperial IHR Diamond Imperial IHR-6-C Imperial IHR-G24-2-C Imperial IR SERIES Imperial IR-24 Imperial IR-36 Imperial IR-48 Imperial IR-60 Imperial IR-72 Imperial IRB-72 Imperial ISPA-18 Imperial ISPA-18-2 Imperial ISPA-18W Imperial ISPA-18W-2 Royal Range RCOS Royal Range RCOS-2 Royal Range RR-10 Royal Range RR-10G12 Royal Range RR-12 Royal Range RR-24RB-120 Royal Range RR-2G12 Royal Range RR-2G24 Royal Range RR-2G36 Royal Range RR-2G48 Royal Range RR-2G60 Royal Range RR-36RB-126 Royal Range RR-4 Royal Range RR-4-36 Royal Range RR-48RB-126 Royal Range RR-4G12 Royal Range RR-4G24 Royal Range RR-4G36 Royal Range RR-4G48 Royal Range RR4RG12 Royal Range RR-4SU Royal Range RR-6 Royal Range RR-6G12 Royal Range RR-6G24 Royal Range RR-6G36
Showing of 100.0

AMERICAN RANGE:

11050

APW WYOTT:

2066850 AS-2066850

ATOSA:

301040007

GARLAND:

1020850 223242-50 M8-50

GLASS MAID:

8-50

HOBART:

00-418051-00050 00-719951-00050 19951-50 418051-00050 418051-50 719951-00050 719951-50 71995150

IMPERIAL:

1700-50 2065

ROYAL RANGE:

1121-50 1122-50

SOUTHBEND:

1006450 1008750

STAR MFG:

2J-Z3033 E6-Y9943 Y9943 Z3033

STERO:

STA2J-Z3033 STAZ3033

VULCAN HART:

00-418051-00050 00-719951-00050 19951-50 418051-00050 418051-50 719951-00050 719951-50 71995150 VH19951-50 VH719951-50

Step1: Turn off gas supply and allow appliance to cool.

Step2: Remove burner assembly carefully using correct tools.

Step3: Unscrew old orifice from manifold.

Step4: Inspect threads and clean debris.

Step5: Install orifice hand-tight, then secure.

Step6: Reassemble burner components.

Step7: Turn gas on, check for leaks with soapy water.

  • What maintenance is required for the American Range A29004 Orifice?

    Inspect the orifice regularly for grease buildup and clogging. Clean using a soft brush and proper degreaser to maintain consistent gas flow. Ensure tight threading to prevent leaks and check burner performance periodically for safety.

  • What are common issues with the American Range A29004 Orifice?

    • Irregular gas flow causing uneven flame.
    • Thread wear leading to gas leaks.
    • Incorrect sizing causing poor combustion.
    • Partial blockage reducing burner efficiency.
    • Loose fitting causing intermittent operation.
