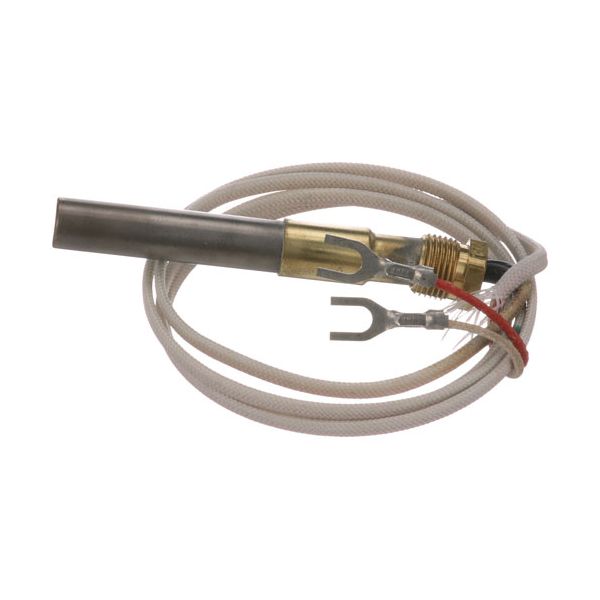

Keating 022770 Fryer Thermopile 36" 2 Lead 250-750 MV

Rating:
5 5 1
1  Review Add Your Review
Special Price $64.48 Regular Price $83.75
In stock
SKU
022770
Add to Wish List
Fryer Parts, Deep Fryer Temperature Controls,
Manufacturer:
The Keating 022770 Fryer Thermopile 36" 2 Lead 250-750 is used for a temperature-to-voltage sensing component that generates a sm‍all millivolt sign‍al by convertin‌g heat energy into electrical output‌ through a series of thermocouples connected in sequence. It supplies a continuous low-voltage signal t‍o control gas flow systems by maintaining the saf‍ety and ignitio‍n circuit fe‍edbac‍k within furnace burner assemblies enabling proper monitoring of pilot flame presence during operation. It is typically positioned within commercial gas fryer burner compartments, a pilot assembly inside the combustion chamber where the thermopile‌ connect to the control valve system in foodservice frying equipment.

Dimensions

  • Length: 3.5 In
  • Width: 2.5 In
  • Height: 1 In
  • Weight: 0.2 lbs
https://partsfe.com/media/catalog/product/k/e/keating-022770-36-thermopile-2-lead-250-750-mv-40354-2.jpg

Product Notes

  • 36" 2 Lead, Thermopile, 250-750 Mv, Robertshaw 1950-53B
  • Cecilware Fryer Fmp 30, 40B, 403, 65, Fms 30, 54
  • Cleveland Boiler Gas Steam Generators: W/O Probes (100,000
  • Btu - 2 Burners~
  • 150,000 - 3 Burners)~
  • W/3 Probes (160,000
  • Btu - 3 Burners~
  • 200,000 - 4 Burners
  • Groen Braising Pan Hfp/2. Series: Chfp, Nhfp.
  • Imperial Fryer Series: If, Ihr, Ir.
  • Keating Griddle Model 48Bfld
  • Southbend Fryer Gfs, 4Fr-45
  • Star Fryer 404A, 615Fa, 630Fa
  • Tri-Star Fryer Tsf-3540, Tsf-4050, Tsf-6575
  • Vulcan Fryer: Tk, Rs, Ghf (Old Hf) Gr, Grd, Grc,Grs,
  • Wells Grill, Gas
  • Wolf Fryer Wtf-35,
ADCRAFT:
AMERICAN RANGE:
A11102, AMRA11102
ATOSA:
BLOOMFIELD:
CLEVELAND:
20410, CLE20410
ENTR?E:
400043-1
GRINDMASTER:
IMPERIAL:
1096, IMP1096
JADE RANGE:
KEATING:
022770, 22567, 22770, 4186, KEA22567, KEA22770, KEA4186
MARKET FORGE:
SOUTHBEND:
STERO:
STA2T-42195, STA2T42195, STA42195
TRI-STAR:
300157, AS-300157, TRS300157
U-LINE:
1950-532, 1950-53B
Reviews 1
Write Your Own Review
You're reviewing:Keating 022770 Fryer Thermopile 36" 2 Lead 250-750 MV
Your Rating
FAQS
Customer Questions
What maintenance is required for the Keating 022770 Thermopile?

Periodically inspect the thermopile for dust, soot, or corrosion on contacts. Clean gently with a soft, dry cloth and ensure proper electrical connections. Proper maintenance ensures accurate temperature sensing and prevents flame detection or operational errors.

What are the common issues with the Keating 022770 Thermopile?

  • Inconsistent or inaccurate voltage output.
  • Failure to detect flame or heat.
  • Loose or corroded electrical connections.
  • damage or contamination on the sensor surface.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Shut off the gas supply and ensure the unit is cool before beginning.

Step2: Locate the thermopile near the pilot assembly.

Step3: Disconnect it from the gas valve connection.

Step4: Remove the old thermopile from its bracket.

Step5: Install the new thermopile in the same position.

Step6: Reconnect it securely to the gas valve.

Step7: Restore gas supply and test pilot operation.
