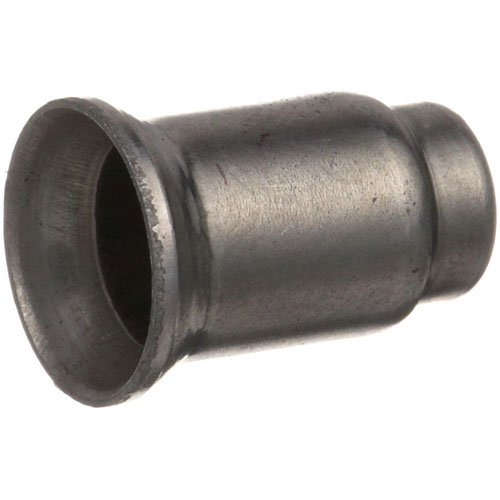

Wells 65352 LP Pilot Orifice

SKU: 65352 1-65352 Brand:
Wells
Availability:
In Stock
(0)
$8.94
Have a Question? +1 (866) 863-0907

Specifications:

  • Lp Pilot Orifice .010" Hole X 1/4",
  • .372" Dia X .530" Long
  • Blodgett Oven Series 900, Early Units Updated & Units Made
  • After 1-25-09.
  • Henny Penny Fryer 600, Og- 301,302,303
  • Imperial Fryer If, Ihr, Ir
  • Vulcan Oven
  • Wolf Fryer Wtf-35, Wtf-42
  • Wolf Grill

Description

The Wells 65352 LP Pilot Orifice is a component of the system that is to be used in the commercial cooking appliances compatible with the system to control the flow of liquid petroleum gas to the pilot burner. It works by controlling the flow of gas to pilot assembly and is able to maintain stability in the ignition and the presence of flame during the startup. This is a hole that is fitted into the burner system as a component of gas delivery. It assists in the appropriate combustion efficiency.

Dimensions:

  • Weight: 0.01 lbs
  • Length: 0.5 in
  • Height: 0.5 in
  • Width: 0.25 in

AMERICAN RANGE:

11002 11007 A11110 AMR11002 AMR11007 AMRA11110

ANETS:

P8903-52

BAKERS PRIDE:

2A-M1245A BKPM1245X M1245X

BLODGETT:

52090 BL52090

COMSTOCK CASTLE:

ORL10

DEAN:

810-0125 8100125

DYNAMIC COOKING SYSTEMS:

13028-10 DCS13028-10

FRYMASTER:

810-0125 8100125 FM810-0125 FM8100125

GARLAND:

1028203 1028207 1293001 227049-10 GL1028203 GL1028207 GL1293001 GL227049-10

HENNY PENNY:

32407 HEN32407

HOBART:

00-409839-00006 00-412787-00004 00-417146-00002 00-711339 00-712363 00-721086-00002 109839-6 112787-4 11339P 12363 21086-2 409839-00006 409839-6 412787-00004 412787-4 417146-00002 417146-2 711339 711339P 712363 721086-00002 721086-2

IMPERIAL:

1018 IMP1018

JADE RANGE:

46-237 460-237-000 460237000 4623700000

KEATING:

007766 007786 7786 KEA007786 KEA7786

LANG:

2A-80401-02 80401-02

MONTAGUE:

2191-1 2194-6 8-6 B34B3 MON2191-1 MON2194-6 MON8-6 MONB34B3 MONR34-4 MONSAL37A1 R34-4 SAL37A1

PITCO:

P6071665 P8903-52 PTP6071665

ROYAL RANGE:

1652

SOUTHBEND:

1171524 SOU1171524

STAR MFG:

2A-45352 2A-80401-02 2A45352 2A80401-02 2K-45357 2K45357 45352 45357 80401-02 WS-65352

STERO:

STA2A-45352 STA2A-80401-02 STA2A45352 STA2A80401-02 STA2K-45357 STA2K45357 STA45352 STA45357 STA65352 STA80401-02 WEL2A-45352 WEL2A45352

U-LINE:

10-114

VULCAN HART:

00-409839-00006 00-412787-00004 00-417146-00002 00-711339 00-712363 00-721086-00002 112787-4 11339P 12363 21086-2 409839-00006 412787-00004 412787-4 417146-00002 417146-2 711339 711339P 712363 721086-00002 721086-2 VH112787-4 VH11339P VH21086-2 VH412787-4 VH417146-2 VH711339 VH712363 VH721086-2

Step1: Turn off gas supply and disconnect power to the equipment before servicing.

Step2: Remove burner access panel to reach the pilot assembly.

Step3: Disconnect pilot tubing and unscrew the existing orifice fitting.

Step4: Inspect and clean the pilot line to ensure no debris remains.

Step5: Install the new pilot orifice, tightening securely into the connection.

Step6: Reconnect pilot tubing and verify proper alignment.

Step7: Reassemble panels, restore gas and power, and test ignition flame.

  • What maintenance is required for the Wells 65352 Pilot Orifice?

    Regularly inspect the pilot orifice for clogging from grease, carbon buildup, or dust that can restrict gas flow. Clean carefully using proper tools or compressed air to avoid enlarging the opening. Proper maintenance ensures stable pilot flame performance and better ignition accuracy.

  • What are common issues with the Wells 65352 Pilot Orifice?

    • Pilot flame failure or weak flame.
    • Clogging from grease or debris buildup.
    • Inconsistent ignition of main burner.
    • Restricted gas flow due to blockage.
    • Misfiring or delayed pilot light ignition.
    • Damage from improper cleaning enlarging orifice opening.
