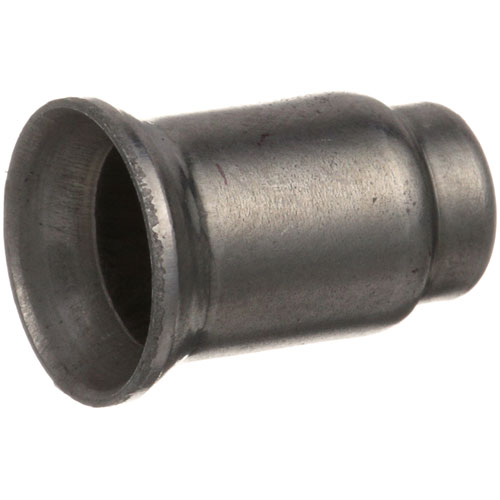

Southbend 1171524 Range Pilot Orifice LP 0.010" Hole
Specifications:
- Lp Pilot Orifice .010" Hole X 1/4",
- .372" Dia X .530" Long
- Blodgett Oven Series 900, Early Units Updated & Units Made
- After 1-25-09.
- Henny Penny Fryer 600, Og- 301,302,303
- Imperial Fryer If, Ihr, Ir
- Vulcan Oven
- Wolf Fryer Wtf-35, Wtf-42
- Wolf Grill
Description
Dimensions:
- Weight: 0.01 lbs
- Length: 0.5 in
- Height: 0.5 in
- Width: 0.25 in
ANETS:
COMSTOCK CASTLE:
DYNAMIC COOKING SYSTEMS:
13028-10 DCS13028-10
FRYMASTER:
HOBART:
00-409839-00006 00-412787-00004 00-417146-00002 00-711339 00-712363 00-721086-00002 109839-6 112787-4 11339P 12363 21086-2 409839-00006 409839-6 412787-00004 412787-4 417146-00002 417146-2 711339 711339P 712363 721086-00002 721086-2
IMPERIAL:
1018 IMP1018
JADE RANGE:
LANG:
MONTAGUE:
2191-1 2194-6 8-6 B34B3 MON2191-1 MON2194-6 MON8-6 MONB34B3 MONR34-4 MONSAL37A1 R34-4 SAL37A1
PITCO:
ROYAL RANGE:
SOUTHBEND:
STAR MFG:
2A-45352 2A-80401-02 2A45352 2A80401-02 2K-45357 2K45357 45352 45357 65352 80401-02 WS-65352
STERO:
STA2A-45352 STA2A-80401-02 STA2A45352 STA2A80401-02 STA2K-45357 STA2K45357 STA45352 STA45357 STA65352 STA80401-02 WEL2A-45352 WEL2A45352
U-LINE:
10-114
VULCAN HART:
00-409839-00006 00-412787-00004 00-417146-00002 00-711339 00-712363 00-721086-00002 112787-4 11339P 12363 21086-2 409839-00006 412787-00004 412787-4 417146-00002 417146-2 711339 711339P 712363 721086-00002 721086-2 VH112787-4 VH11339P VH21086-2 VH412787-4 VH417146-2 VH711339 VH712363 VH721086-2
Step1: Turn off gas supply and electrical power before servicing before proceeding.
Step2: Access pilot assembly and remove existing orifice carefully.
Step3: Clean pilot tube and inspect for debris or damage.
Step4: Thread and install new orifice securely, avoid cross-threading.
Step5: Reassemble burner components in reverse order.
Step6: Restore gas and check all connections using soapy water.
Step7: Test ignition and flame stability; ensure no leaks after installation.
-
What maintenance is required for the Southbend 1171524 Pilot Orifice?
Clean the pilot orifice periodically to remove dirt, grease, or residue using compressed air or a fine tool. Check for proper fit and alignment during installation. Regular control ensures steady gas flow and accurate pilot ignition performance.
-
What are common issues with the Southbend 1171524 Pilot Orifice?
- Orifice clogging leading to reduced or blocked gas flow.
- Inconsistent or weak pilot flame affecting burner ignition.
- Leaks caused by improper tightening or worn fittings.
- Flame instability due to misalignment or incorrect installation.
