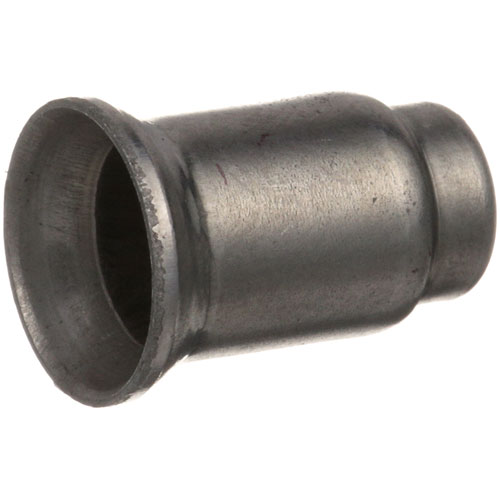

Jade Range 4623700000 Range LP Pilot Orifice

SKU: 4623700000 1-4623700000 Brand:
Jade Range
Availability:
In Stock
(0)
$8.94
Have a Question? +1 (866) 863-0907

Specifications:

  • Lp Pilot Orifice .010" Hole X 1/4",
  • .372" Dia X .530" Long
  • Blodgett Oven Series 900, Early Units Updated & Units Made
  • After 1-25-09.
  • Henny Penny Fryer 600, Og- 301,302,303
  • Imperial Fryer If, Ihr, Ir
  • Vulcan Oven
  • Wolf Fryer Wtf-35, Wtf-42
  • Wolf Grill

Description

The Jade Range 4623700000 Range LP Pilot Orifice works by limiting the amount of liquid propane that passes through a certain calibrated volume of gas required to maintain a steady pilot flame. This component directs the pressurized air via a tiny hole to sustain the required ignition source to the main burners. The opening is placed in the ignition light assembly, and it is threaded directly into the fuel supply line and above the heater head. This is a brass fitting that makes sure that the fuel-to-air ratio is appropriate to maintain constant combustion.

Dimensions:

  • Weight: 0.01 lbs
  • Length: 0.5 in
  • Height: 0.5 in
  • Width: 0.25 in

AMERICAN RANGE:

11002 11007 A11110 AMR11002 AMR11007 AMRA11110

ANETS:

P8903-52

BAKERS PRIDE:

2A-M1245A BKPM1245X M1245X

BLODGETT:

52090 BL52090

COMSTOCK CASTLE:

ORL10

DEAN:

810-0125 8100125

DYNAMIC COOKING SYSTEMS:

13028-10 DCS13028-10

FRYMASTER:

810-0125 8100125 FM810-0125 FM8100125

GARLAND:

1028203 1028207 1293001 227049-10 GL1028203 GL1028207 GL1293001 GL227049-10

HENNY PENNY:

32407 HEN32407

HOBART:

00-409839-00006 00-412787-00004 00-417146-00002 00-711339 00-712363 00-721086-00002 109839-6 112787-4 11339P 12363 21086-2 409839-00006 409839-6 412787-00004 412787-4 417146-00002 417146-2 711339 711339P 712363 721086-00002 721086-2

IMPERIAL:

1018 IMP1018

JADE RANGE:

46-237 460-237-000 460237000

KEATING:

007766 007786 7786 KEA007786 KEA7786

LANG:

2A-80401-02 80401-02

MONTAGUE:

2191-1 2194-6 8-6 B34B3 MON2191-1 MON2194-6 MON8-6 MONB34B3 MONR34-4 MONSAL37A1 R34-4 SAL37A1

PITCO:

P6071665 P8903-52 PTP6071665

ROYAL RANGE:

1652

SOUTHBEND:

1171524 SOU1171524

STAR MFG:

2A-45352 2A-80401-02 2A45352 2A80401-02 2K-45357 2K45357 45352 45357 65352 80401-02 WS-65352

STERO:

STA2A-45352 STA2A-80401-02 STA2A45352 STA2A80401-02 STA2K-45357 STA2K45357 STA45352 STA45357 STA65352 STA80401-02 WEL2A-45352 WEL2A45352

U-LINE:

10-114

VULCAN HART:

00-409839-00006 00-412787-00004 00-417146-00002 00-711339 00-712363 00-721086-00002 112787-4 11339P 12363 21086-2 409839-00006 412787-00004 412787-4 417146-00002 417146-2 711339 711339P 712363 721086-00002 721086-2 VH112787-4 VH11339P VH21086-2 VH412787-4 VH417146-2 VH711339 VH712363 VH721086-2

Step1: Turn off gas supply and allow unit to cool.

Step2: Ensure area is well ventilated and wear protective gloves.

Step3: Remove burner assembly carefully using appropriate tools.

Step4: Unscrew existing pilot orifice without stripping threads.

Step5: Inspect and clean fitting threads remove debris if present.

Step6: Install new orifice securely align properly before tightening.

Step7: Reassemble burner components ensure correct alignment.

Step8: Restore gas and test for leaks; check flame use soap solution.

  • What maintenance is required for the Jade Range 4623700000 Pilot Orifice?

    Inspect the pilot orifice regularly for clogs caused by grease or debris that can restrict gas flow. Clean the hole carefully using proper tools to avoid damage. Ensure the fitting remains tight and leak-free. Always shut off the gas supply before servicing.

  • What are common issues with the Jade Range 4623700000 Pilot Orifice?

    • Blockage from grease or carbon buildup restricting gas flow.
    • Weak or inconsistent pilot flame causing ignition issues.
    • Gas leakage from loose or damaged connections.
    • Irregular flame pattern due to improper orifice alignment.
