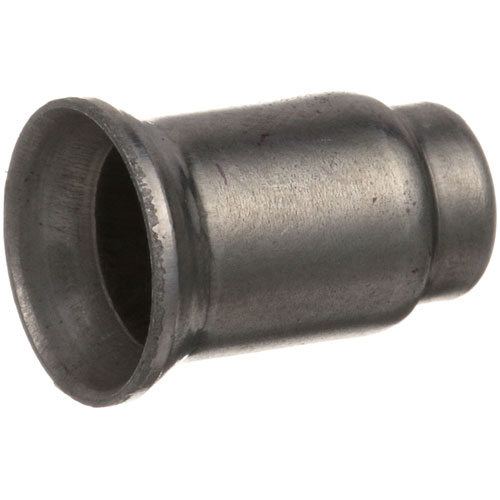

Vulcan Hart 00-417146-00002 Pilot Orifice LP 1/4" 0.372" DIA 0.010" Hole
Specifications:
- Lp Pilot Orifice .010" Hole X 1/4",
- .372" Dia X .530" Long
- Blodgett Oven Series 900, Early Units Updated & Units Made
- After 1-25-09.
- Henny Penny Fryer 600, Og- 301,302,303
- Imperial Fryer If, Ihr, Ir
- Vulcan Oven
- Wolf Fryer Wtf-35, Wtf-42
- Wolf Grill
Description
Dimensions:
- Weight: 0.01 lbs
- Length: 0.5 in
- Height: 0.5 in
- Width: 0.25 in
ANETS:
COMSTOCK CASTLE:
DYNAMIC COOKING SYSTEMS:
13028-10 DCS13028-10
FRYMASTER:
HOBART:
00-409839-00006 00-412787-00004 00-711339 00-712363 00-721086-00002 109839-6 112787-4 11339P 12363 21086-2 409839-00006 409839-6 412787-00004 412787-4 417146-00002 417146-2 711339 711339P 712363 721086-00002 721086-2
IMPERIAL:
1018 IMP1018
JADE RANGE:
LANG:
MONTAGUE:
2191-1 2194-6 8-6 B34B3 MON2191-1 MON2194-6 MON8-6 MONB34B3 MONR34-4 MONSAL37A1 R34-4 SAL37A1
PITCO:
ROYAL RANGE:
SOUTHBEND:
STAR MFG:
2A-45352 2A-80401-02 2A45352 2A80401-02 2K-45357 2K45357 45352 45357 65352 80401-02 WS-65352
STERO:
STA2A-45352 STA2A-80401-02 STA2A45352 STA2A80401-02 STA2K-45357 STA2K45357 STA45352 STA45357 STA65352 STA80401-02 WEL2A-45352 WEL2A45352
U-LINE:
10-114
Step1: Shut off main gas supply and allow appliance to cool completely.
Step2: Remove access panel and carefully extract the existing orifice assembly.
Step3: Verify configuration and confirm correct hole specification.
Step4: Install new orifice, tighten securely without over-torquing threads.
Step5: Reassemble unit and check all gas connections for leaks using soap solution.
Step6: Test ignition, verify proper flame, and ensure stable burner operation.
-
What maintenance is required for the Vulcan Hart 00-417146-00002 Pilot Orifice?
Inspect the orifice regularly for clogging or carbon buildup that can restrict gas flow. Clean gently using compressed air or approved fine cleaning tools to maintain proper flame performance.
-
What are common issues with the Vulcan Hart 00-417146-00002 Pilot Orifice?
- Weak or unstable pilot flame.
- Orifice blockage from grease or debris.
- Gas flow restriction causing ignition failure.
- Improper flame size due to damaged opening.
- Gas leakage from loose fittings.
