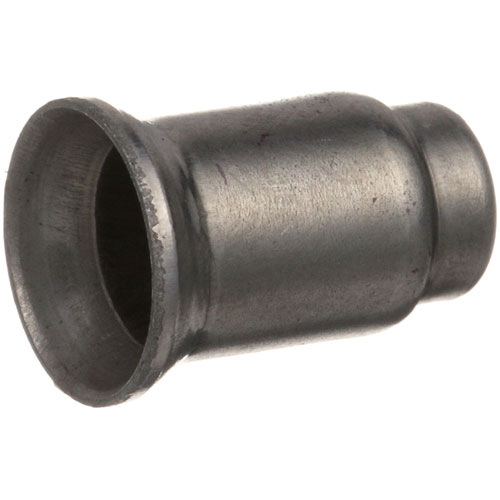

Vulcan Hart 00-712363 Gas Griddle Pilot Orifice LP

SKU: 00-712363 1-00-712363 Brand:
Vulcan Hart
Availability:
In Stock
(0)
$8.94
Have a Question? +1 (866) 863-0907

Specifications:

  • Lp Pilot Orifice .010" Hole X 1/4",
  • .372" Dia X .530" Long
  • Blodgett Oven Series 900, Early Units Updated & Units Made
  • After 1-25-09.
  • Henny Penny Fryer 600, Og- 301,302,303
  • Imperial Fryer If, Ihr, Ir
  • Vulcan Oven
  • Wolf Fryer Wtf-35, Wtf-42
  • Wolf Grill

Description

The Vulcan Hart 00-712363 Gas Griddle Pilot Orifice LP Systems is used to control the flow of propane to the pilot assembly, so that the ignition source remains consistent. This hole is fitted in the pilot system of commercial gas griddles that are widely used in restaurants, cafeterias and foodservice kitchens. It allows for maintaining consistent burner start-up and consistent heating operation during regular cooking operations by regulating, the amount of gas fed to the pilot flame. The fact that it has fine flow control assists in the overall efficiency and safety of the appliance.

Dimensions:

  • Weight: 0.01 lbs
  • Length: 0.5 in
  • Height: 0.5 in
  • Width: 0.25 in

AMERICAN RANGE:

11002 11007 A11110 AMR11002 AMR11007 AMRA11110

ANETS:

P8903-52

BAKERS PRIDE:

2A-M1245A BKPM1245X M1245X

BLODGETT:

52090 BL52090

COMSTOCK CASTLE:

ORL10

DEAN:

810-0125 8100125

DYNAMIC COOKING SYSTEMS:

13028-10 DCS13028-10

FRYMASTER:

810-0125 8100125 FM810-0125 FM8100125

GARLAND:

1028203 1028207 1293001 227049-10 GL1028203 GL1028207 GL1293001 GL227049-10

HENNY PENNY:

32407 HEN32407

HOBART:

00-409839-00006 00-412787-00004 00-417146-00002 00-711339 00-721086-00002 109839-6 112787-4 11339P 12363 21086-2 409839-00006 409839-6 412787-00004 412787-4 417146-00002 417146-2 711339 711339P 712363 721086-00002 721086-2

IMPERIAL:

1018 IMP1018

JADE RANGE:

46-237 460-237-000 460237000 4623700000

KEATING:

007766 007786 7786 KEA007786 KEA7786

LANG:

2A-80401-02 80401-02

MONTAGUE:

2191-1 2194-6 8-6 B34B3 MON2191-1 MON2194-6 MON8-6 MONB34B3 MONR34-4 MONSAL37A1 R34-4 SAL37A1

PITCO:

P6071665 P8903-52 PTP6071665

ROYAL RANGE:

1652

SOUTHBEND:

1171524 SOU1171524

STAR MFG:

2A-45352 2A-80401-02 2A45352 2A80401-02 2K-45357 2K45357 45352 45357 65352 80401-02 WS-65352

STERO:

STA2A-45352 STA2A-80401-02 STA2A45352 STA2A80401-02 STA2K-45357 STA2K45357 STA45352 STA45357 STA65352 STA80401-02 WEL2A-45352 WEL2A45352

U-LINE:

10-114

VULCAN HART:

00-409839-00006 00-412787-00004 00-417146-00002 00-711339 00-721086-00002 112787-4 11339P 12363 21086-2 409839-00006 412787-00004 412787-4 417146-00002 417146-2 711339 711339P 712363 721086-00002 721086-2 VH112787-4 VH11339P VH21086-2 VH412787-4 VH417146-2 VH711339 VH712363 VH721086-2

Step1: Turn off gas and allow equipment to cool completely before servicing.

Step2: Remove access panel and carefully detach pilot orifice assembly.

Step3: Install new orifice ensuring correct alignment and threading.

Step4: Tighten fitting without over-torquing to avoid damage.

Step5: Restore gas supply and check for leaks using solution.

Step6: Test ignition for proper flame pattern and stability.

  • What maintenance is required for the Vulcan Hart 00-712363 Pilot Orifice?

    Regularly inspect the pilot orifice for carbon buildup or debris that can restrict gas flow. Clean gently using compressed air or cleaning tools. Ensure proper alignment and tight fittings to maintain consistent ignition and safe operation.

  • What are common issues with the Vulcan Hart 00-712363 Pilot Orifice?

    • Blocked orifice restricting gas flow.
    • Irregular flame or weak ignition.
    • Carbon buildup causing inconsistent performance.
    • Misalignment leading to poor burner operation.
    • Orifice damage affecting gas distribution.
