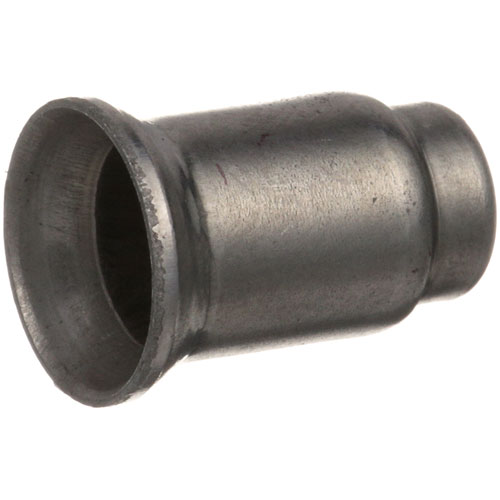

Lang 80401-02 LP Pilot Orifice

SKU: 80401-02 1-80401-02 Brand:
Lang
Availability:
In Stock
(0)
$8.94
Have a Question? +1 (866) 863-0907

Specifications:

  • Lp Pilot Orifice .010" Hole X 1/4",
  • .372" Dia X .530" Long
  • Blodgett Oven Series 900, Early Units Updated & Units Made
  • After 1-25-09.
  • Henny Penny Fryer 600, Og- 301,302,303
  • Imperial Fryer If, Ihr, Ir
  • Vulcan Oven
  • Wolf Fryer Wtf-35, Wtf-42
  • Wolf Grill

Description

The Lang 80401-02 LP Pilot Orifice controls the supply of liquid propane into the initial burner assembly by forcing the gas through an internal opening of a calibration. This is a regulated flow that maintains a constant flame size that is required to ignite the main heating system. The component is directly threaded into the starter gas line connection that is found in the combustion chamber of the furnace. The flame should be held steady and in place by proper installation with reference to the thermocouple or igniter.

Dimensions:

  • Weight: 0.01 lbs
  • Length: 0.5 in
  • Height: 0.5 in
  • Width: 0.25 in

AMERICAN RANGE:

11002 11007 A11110 AMR11002 AMR11007 AMRA11110

ANETS:

P8903-52

BAKERS PRIDE:

2A-M1245A BKPM1245X M1245X

BLODGETT:

52090 BL52090

COMSTOCK CASTLE:

ORL10

DEAN:

810-0125 8100125

DYNAMIC COOKING SYSTEMS:

13028-10 DCS13028-10

FRYMASTER:

810-0125 8100125 FM810-0125 FM8100125

GARLAND:

1028203 1028207 1293001 227049-10 GL1028203 GL1028207 GL1293001 GL227049-10

HENNY PENNY:

32407 HEN32407

HOBART:

00-409839-00006 00-412787-00004 00-417146-00002 00-711339 00-712363 00-721086-00002 109839-6 112787-4 11339P 12363 21086-2 409839-00006 409839-6 412787-00004 412787-4 417146-00002 417146-2 711339 711339P 712363 721086-00002 721086-2

IMPERIAL:

1018 IMP1018

JADE RANGE:

46-237 460-237-000 460237000 4623700000

KEATING:

007766 007786 7786 KEA007786 KEA7786

LANG:

2A-80401-02

MONTAGUE:

2191-1 2194-6 8-6 B34B3 MON2191-1 MON2194-6 MON8-6 MONB34B3 MONR34-4 MONSAL37A1 R34-4 SAL37A1

PITCO:

P6071665 P8903-52 PTP6071665

ROYAL RANGE:

1652

SOUTHBEND:

1171524 SOU1171524

STAR MFG:

2A-45352 2A-80401-02 2A45352 2A80401-02 2K-45357 2K45357 45352 45357 65352 WS-65352

STERO:

STA2A-45352 STA2A-80401-02 STA2A45352 STA2A80401-02 STA2K-45357 STA2K45357 STA45352 STA45357 STA65352 STA80401-02 WEL2A-45352 WEL2A45352

U-LINE:

10-114

VULCAN HART:

00-409839-00006 00-412787-00004 00-417146-00002 00-711339 00-712363 00-721086-00002 112787-4 11339P 12363 21086-2 409839-00006 412787-00004 412787-4 417146-00002 417146-2 711339 711339P 712363 721086-00002 721086-2 VH112787-4 VH11339P VH21086-2 VH412787-4 VH417146-2 VH711339 VH712363 VH721086-2

Step1: Turn off gas and electrical supply and allow unit to cool completely before service.

Step2: Remove burner access panel to reach existing pilot orifice assembly.

Step3: Unscrew old orifice carefully and avoid damaging surrounding gas fittings.

Step4: Install new LP pilot orifice and tighten securely without over-torquing.

Step5: Restore gas supply, check for leaks, and test ignition operation.

Step6: Ensure proper ventilation and use leak detection solution for safety.

  • What maintenance is required for the Lang 80401-02 LP Pilot Orifice?

    Regularly inspect the orifice for grease, dust, or carbon buildup that can restrict LP gas flow. Clean gently with appropriate orifice cleaning tools or compressed air. Ensure proper alignment and secure fitting. Replace if corrosion or deformation appears.

  • What are common issues with the Lang 80401-02 LP Pilot Orifice?

    • Clogging from carbon buildup affecting gas flow.
    • Irregular flame or weak pilot ignition.
    • Orifice wear or enlargement causing improper fuel mixture.
    • Corrosion leading to restricted or unstable gas deliver.y
    • Misalignment causing inconsistent pilot performance.
