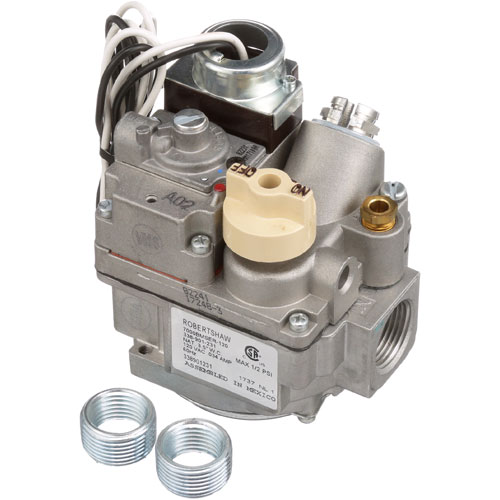

Dean 806-1452SP Natural Gas Combination Safety Valve 120V 3/4" FPT In/Out

SKU: 806-1452SP 1-806-1452SP Brand:
Dean
Availability:
In Stock
(0)
$276.13 Price reduced from $541.00
Save $264.87
Have a Question? +1 (866) 863-0907

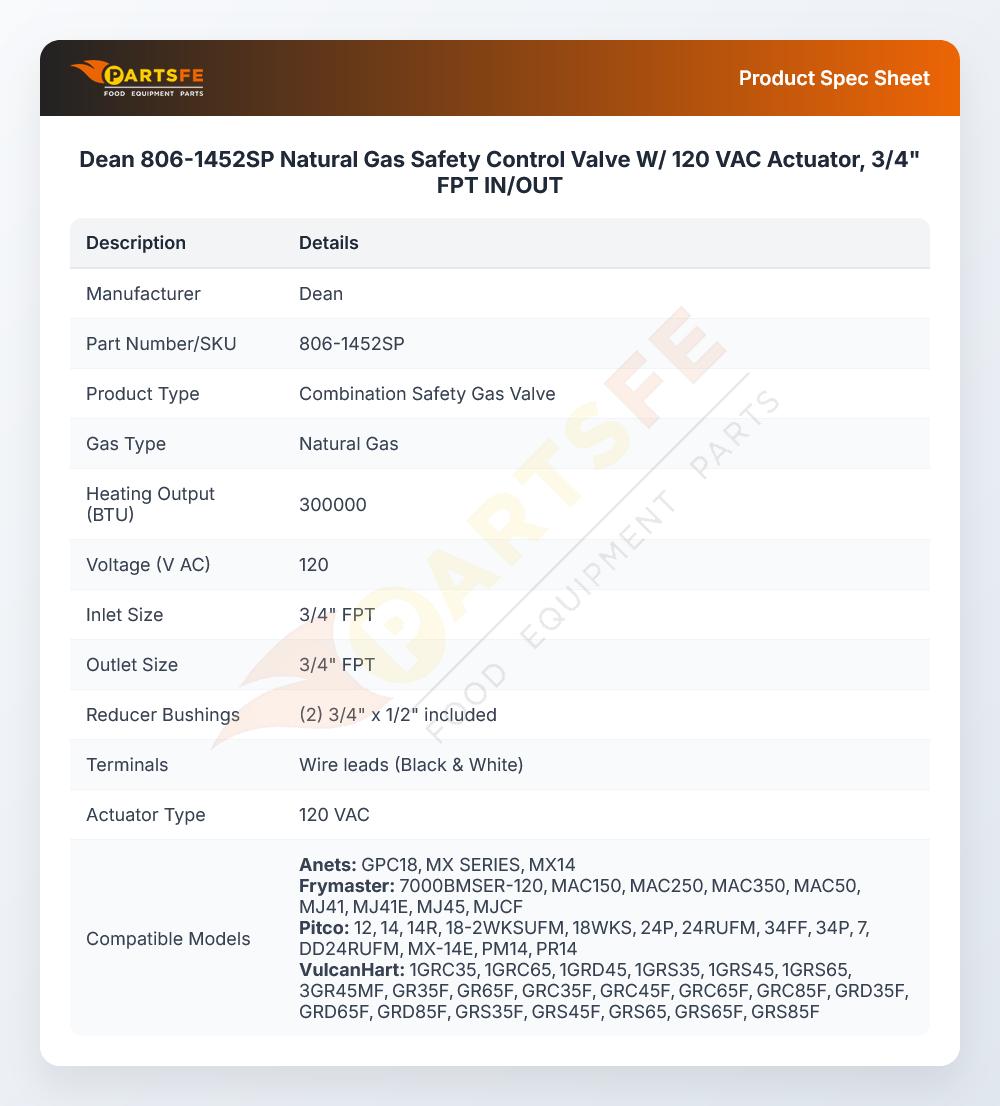

Specifications:

  • Nat Gas Safety, 3/4" Fpt In/Out, 300.000 Btu, (2) 3/4" X
  • 1/2" Reducer Bushings, 120 Vac Actuator, Blk & Wht Wires,
  • W/Eco Slotted Thermopile Magnet, Model 7000 Bmser-120
  • Thermopile, H231, T-103, # 51-1122, Screw In Type, 7/16-27
  • Brass Pile Holding Nut, 3/8-32 Thread, For Magnet, 750Mv,
  • 500Mv Under Load ,
  • Thermopile, Push On, For Frymaster, # 51-1348.
  • Frymaster Fryer Mac(50,150,250,350), Mj(41,41E,45), Mjcf,
  • Mjcfe. Series: Fm, Mac50.Fmcfe, Fmcfec, J3F, J65X, Jcfx,
  • Kj3Fc,
  • Pitco Fryer Gas Fryers Which Are Rated @ Over 100,000 Btu.
  • Models:24R, 18Wks, 14F

Description

The Dean 806-1452SP Combination Safety Valve is an electrically controlled spout that regulates the flow of natural gas. It uses a 120 VAC input and automatically shuts off the gas when necessary by the safety system or operating sequence. This component is installed on the gas train of commercial cooking equipment where fuel flow must be controlled. It is compatible with gas piping and has 3/4" inlet and outlet ports and is part of the ignition and fuel management of the equipment.

Dimensions:

  • Weight: 2.4 lbs
  • Length: 5.75 in
  • Height: 3.5 in
  • Width: 4.5 in

ANETS:

P5045650 P5045650-C P5045651 P5045651-C

DEAN:

806-1452 8061452 8061452SP 807-0308 8070308

FRYMASTER:

806-1452 8061452 8061452SP 807-0308 8070308 FM806-1452 FM806-1452SP FM8061452 FM8061452SP FM807-0308 FM8070308

PITCO:

P5045650 P5045650-C P5045651 P5045651-C P5045657 PTP5045657

U-LINE:

700-470

VULCAN HART:

470841-3 VH470841-3
