Dean 807-0308 Natural Gas Combination Safety Valve 120V 3/4" FPT In/Out

SKU: 807-0308 1-807-0308 Brand:
Dean
Availability:
In Stock
(0)
$276.13 Price reduced from $541.00
Save $264.87
Have a Question? +1 (866) 863-0907

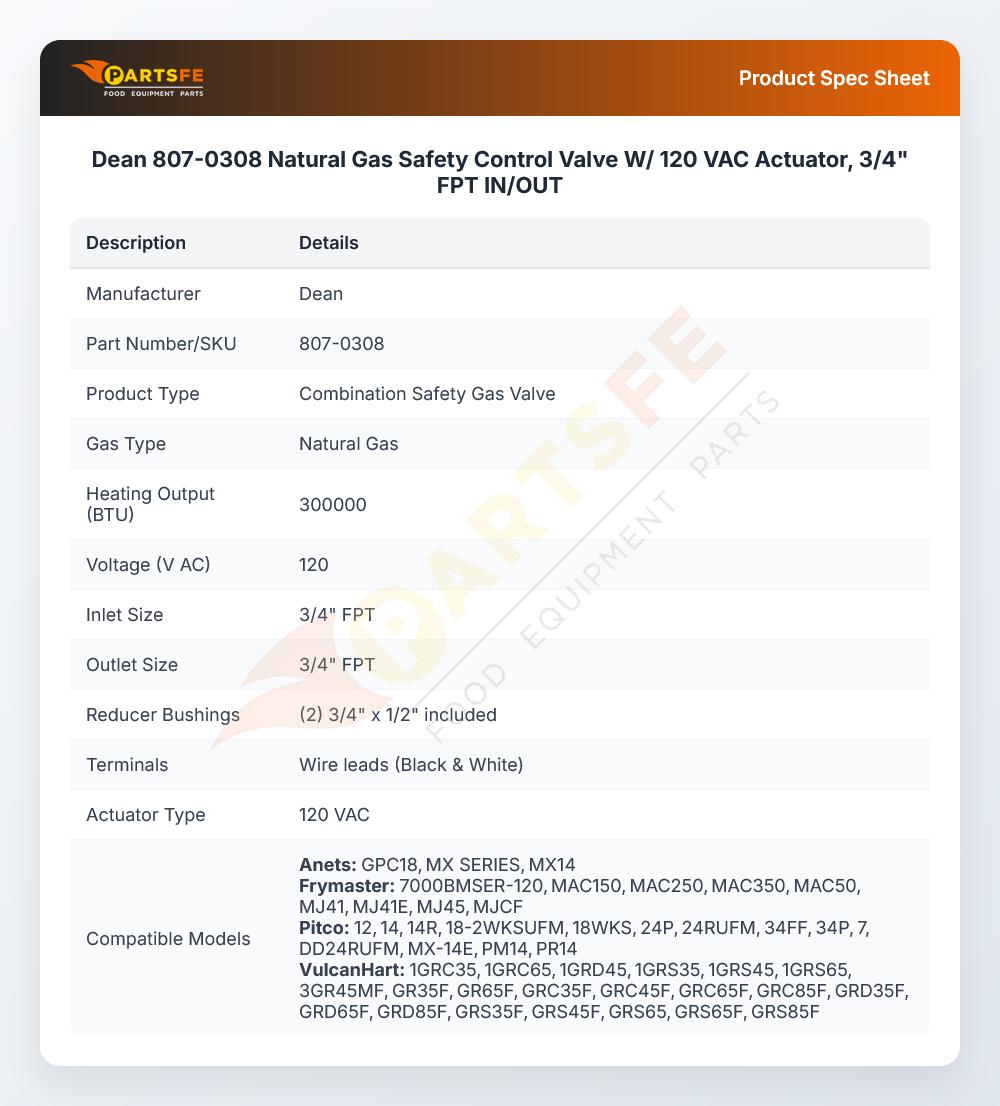

Specifications:

  • Nat Gas Safety, 3/4" Fpt In/Out, 300.000 Btu, (2) 3/4" X
  • 1/2" Reducer Bushings, 120 Vac Actuator, Blk & Wht Wires,
  • W/Eco Slotted Thermopile Magnet, Model 7000 Bmser-120
  • Thermopile, H231, T-103, # 51-1122, Screw In Type, 7/16-27
  • Brass Pile Holding Nut, 3/8-32 Thread, For Magnet, 750Mv,
  • 500Mv Under Load ,
  • Thermopile, Push On, For Frymaster, # 51-1348.
  • Frymaster Fryer Mac(50,150,250,350), Mj(41,41E,45), Mjcf,
  • Mjcfe. Series: Fm, Mac50.Fmcfe, Fmcfec, J3F, J65X, Jcfx,
  • Kj3Fc,
  • Pitco Fryer Gas Fryers Which Are Rated @ Over 100,000 Btu.
  • Models:24R, 18Wks, 14F

Description

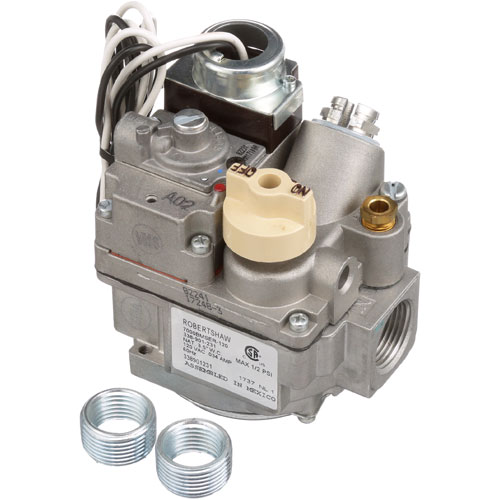

The Dean 807-0308 Combination Safety Valve is a natural gas controller that is opened and closed in response to signals from the appliance control system. It is powered by 120 VAC and features a safety circuit that will stop fuel flow if the particular operating conditions are not met. This valve is typically part of the gas supply assembly of commercial cooking systems. It is designed with 3/4" female pipe thread In/Out connections on either end and is used to connect with gas piping to facilitate burner operation and fuel control operations.

Dimensions:

  • Weight: 2.4 lbs
  • Length: 5.75 in
  • Height: 3.5 in
  • Width: 4.5 in

ANETS:

P5045650 P5045650-C P5045651 P5045651-C

DEAN:

806-1452 806-1452SP 8061452 8061452SP 8070308

FRYMASTER:

806-1452 806-1452SP 8061452 8061452SP 8070308 FM806-1452 FM806-1452SP FM8061452 FM8061452SP FM807-0308 FM8070308

PITCO:

P5045650 P5045650-C P5045651 P5045651-C P5045657 PTP5045657

U-LINE:

700-470

VULCAN HART:

470841-3 VH470841-3
