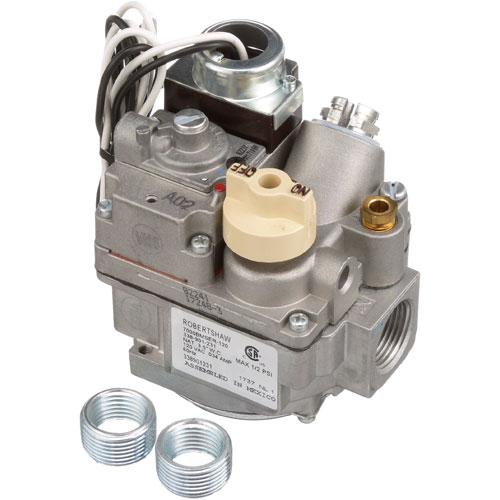

Pitco P5045657 Fryer Natural Gas Combination Safety Valve 120V 3/4" FPT In/Out

SKU: P5045657 1-P5045657 Brand:
Pitco
Availability:
In Stock
(0)
$276.13 Price reduced from $541.00
Save $264.87
Have a Question? +1 (866) 863-0907

Specifications:

  • Nat Gas Safety, 3/4" Fpt In/Out, 300.000 Btu, (2) 3/4" X
  • 1/2" Reducer Bushings, 120 Vac Actuator, Blk & Wht Wires,
  • W/Eco Slotted Thermopile Magnet, Model 7000 Bmser-120
  • Thermopile, H231, T-103, # 51-1122, Screw In Type, 7/16-27
  • Brass Pile Holding Nut, 3/8-32 Thread, For Magnet, 750Mv,
  • 500Mv Under Load ,
  • Thermopile, Push On, For Frymaster, # 51-1348.
  • Frymaster Fryer Mac(50,150,250,350), Mj(41,41E,45), Mjcf,
  • Mjcfe. Series: Fm, Mac50.Fmcfe, Fmcfec, J3F, J65X, Jcfx,
  • Kj3Fc,
  • Pitco Fryer Gas Fryers Which Are Rated @ Over 100,000 Btu.
  • Models:24R, 18Wks, 14F

Description

The Pitco P5045657 Combination Safety Valve controls the flow of gas through the use of a 120 VAC actuator which operates the valve mechanism based on the controls on the appliance. It is opened to permit natural gas to flow to the burner system during heating and closed when the burner system is not running or conditions dictate that gas be interrupted. Placed on the gas supply line to the system it is connected by 3/4" FPT inlet and outlet ports. The assembly operates in conjunction with the fuel control system of the fryer and assists in transferring the gas to the heating elements.

Dimensions:

  • Weight: 2.4 lbs
  • Length: 5.75 in
  • Height: 3.5 in
  • Width: 4.5 in

ANETS:

P5045650 P5045650-C P5045651 P5045651-C

DEAN:

806-1452 806-1452SP 8061452 8061452SP 807-0308 8070308

FRYMASTER:

806-1452 806-1452SP 8061452 8061452SP 807-0308 8070308 FM806-1452 FM806-1452SP FM8061452 FM8061452SP FM807-0308 FM8070308

PITCO:

P5045650 P5045650-C P5045651 P5045651-C PTP5045657

U-LINE:

700-470

VULCAN HART:

470841-3 VH470841-3
