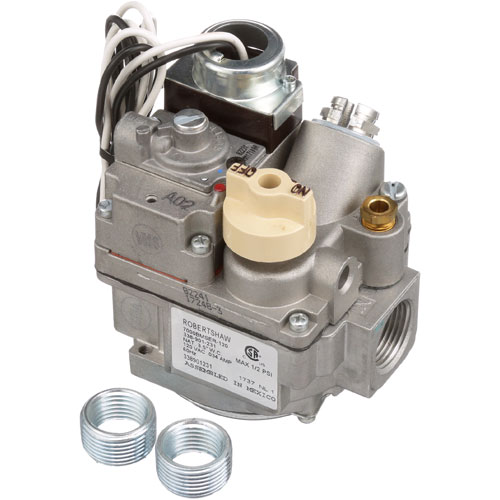

Pitco P5045650-C Fryer Natural Gas Combination Safety Valve 120V 3/4" FPT In/Out

SKU: P5045650-C 1-P5045650-C Brand:
Pitco
Availability:
In Stock
(0)
$276.13 Price reduced from $541.00
Save $264.87
Have a Question? +1 (866) 863-0907

Specifications:

  • Nat Gas Safety, 3/4" Fpt In/Out, 300.000 Btu, (2) 3/4" X
  • 1/2" Reducer Bushings, 120 Vac Actuator, Blk & Wht Wires,
  • W/Eco Slotted Thermopile Magnet, Model 7000 Bmser-120
  • Thermopile, H231, T-103, # 51-1122, Screw In Type, 7/16-27
  • Brass Pile Holding Nut, 3/8-32 Thread, For Magnet, 750Mv,
  • 500Mv Under Load ,
  • Thermopile, Push On, For Frymaster, # 51-1348.
  • Frymaster Fryer Mac(50,150,250,350), Mj(41,41E,45), Mjcf,
  • Mjcfe. Series: Fm, Mac50.Fmcfe, Fmcfec, J3F, J65X, Jcfx,
  • Kj3Fc,
  • Pitco Fryer Gas Fryers Which Are Rated @ Over 100,000 Btu.
  • Models:24R, 18Wks, 14F

Description

The Pitco P5045650-C Fryer Combination Safety Valve is a natural gas controller valve that is operated by a 120 VAC actuator which is activated by the electrical input from the control system. When it is activated, the valve allows the gas to flow to the burners and when the power is lost or the conditions change, the valve will close and stop the gas flow. The component is attached to the gas train in the fryer and is directly connected to the gas piping with 3/4" FPT inlet and outlet fittings. It acts as an essential component of the coordination of gas supply with the heating cycle of the fryer.

Dimensions:

  • Weight: 2.4 lbs
  • Length: 5.75 in
  • Height: 3.5 in
  • Width: 4.5 in

ANETS:

P5045650 P5045651 P5045651-C

DEAN:

806-1452 806-1452SP 8061452 8061452SP 807-0308 8070308

FRYMASTER:

806-1452 806-1452SP 8061452 8061452SP 807-0308 8070308 FM806-1452 FM806-1452SP FM8061452 FM8061452SP FM807-0308 FM8070308

PITCO:

P5045650 P5045651 P5045651-C P5045657 PTP5045657

U-LINE:

700-470

VULCAN HART:

470841-3 VH470841-3
