Frymaster FM806-1452 Natural Gas Combination Safety Valve 120V 3/4" FPT In/Out

SKU: FM806-1452 1-FM806-1452 Brand:
Frymaster
Availability:
In Stock
(0)
$276.13 Price reduced from $541.00
Save $264.87
Have a Question? +1 (866) 863-0907

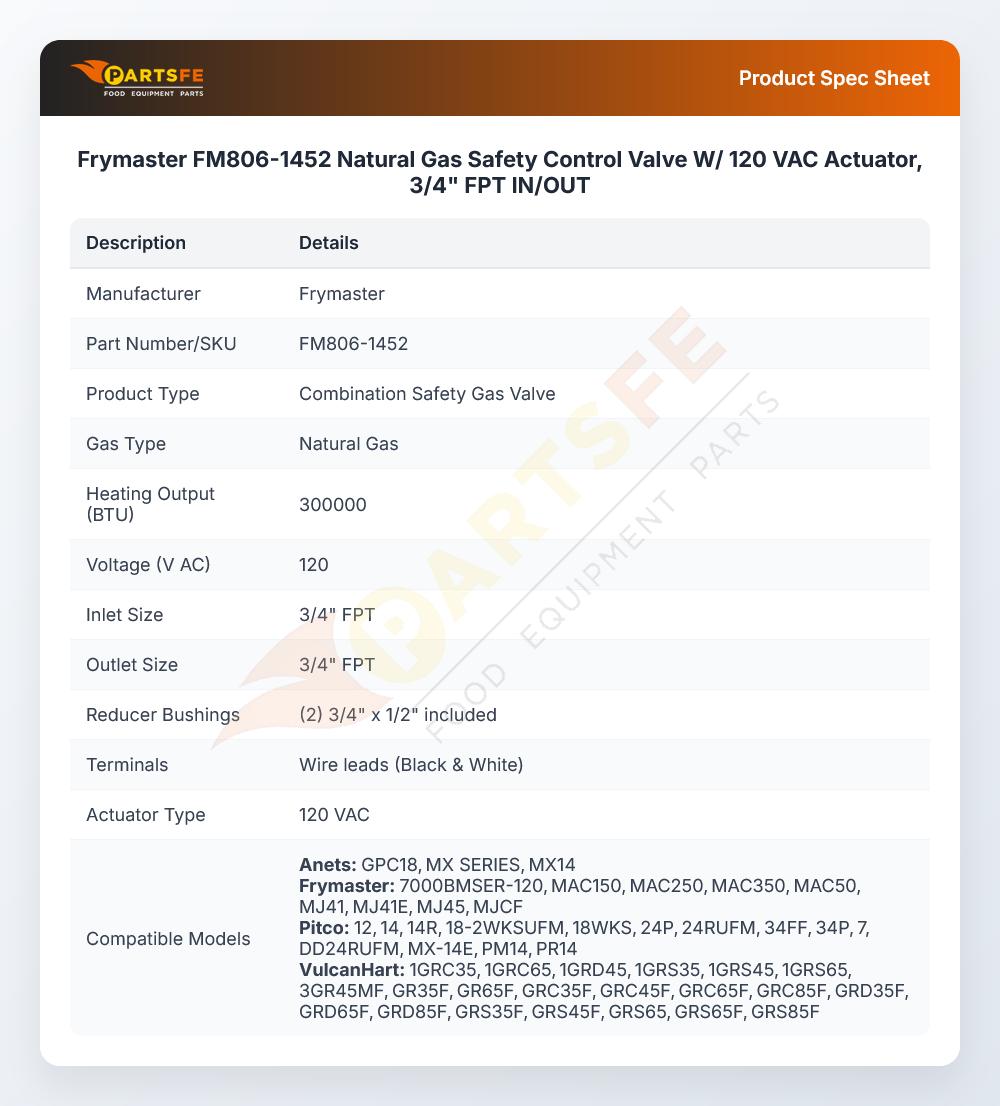

Specifications:

  • Nat Gas Safety, 3/4" Fpt In/Out, 300.000 Btu, (2) 3/4" X
  • 1/2" Reducer Bushings, 120 Vac Actuator, Blk & Wht Wires,
  • W/Eco Slotted Thermopile Magnet, Model 7000 Bmser-120
  • Thermopile, H231, T-103, # 51-1122, Screw In Type, 7/16-27
  • Brass Pile Holding Nut, 3/8-32 Thread, For Magnet, 750Mv,
  • 500Mv Under Load ,
  • Thermopile, Push On, For Frymaster, # 51-1348.
  • Frymaster Fryer Mac(50,150,250,350), Mj(41,41E,45), Mjcf,
  • Mjcfe. Series: Fm, Mac50.Fmcfe, Fmcfec, J3F, J65X, Jcfx,
  • Kj3Fc,
  • Pitco Fryer Gas Fryers Which Are Rated @ Over 100,000 Btu.
  • Models:24R, 18Wks, 14F

Description

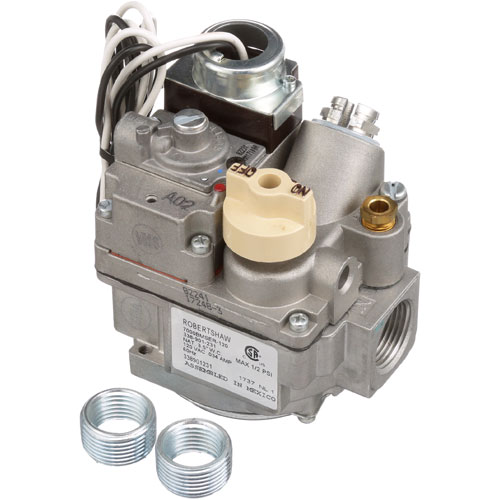

The Frymaster FM806-1452 Combination Safety Valve controls the flow of natural gas and is operated by a 120 VAC electrical signal that opens and closes the valve during appliance operation. It regulates gas flow to the burner system and acts as a response to the system control circuit for start-up and shutdown. This is usually fitted in the gas supply assembly of commercial gas systems, between the gas supply line and the burner manifold. It has 3/4" FPT inlet and outlet connections and is designed to fit the particular configuration gas system.

Dimensions:

  • Weight: 2.4 lbs
  • Length: 5.75 in
  • Height: 3.5 in
  • Width: 4.5 in

ANETS:

P5045650 P5045650-C P5045651 P5045651-C

DEAN:

806-1452 806-1452SP 8061452 8061452SP 807-0308 8070308

FRYMASTER:

806-1452 806-1452SP 8061452 8061452SP 807-0308 8070308 FM806-1452SP FM8061452 FM8061452SP FM807-0308 FM8070308

PITCO:

P5045650 P5045650-C P5045651 P5045651-C P5045657 PTP5045657

U-LINE:

700-470

VULCAN HART:

470841-3 VH470841-3
