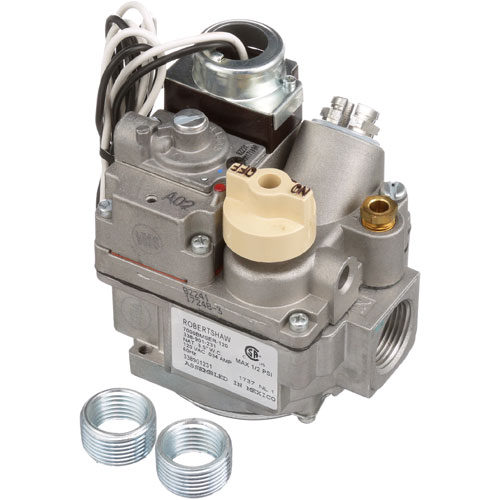

Dean 8061452 Natural Gas Combination Safety Valve 120V 3/4" FPT In/Out

SKU: 8061452 1-8061452 Brand:
Dean
Availability:
In Stock
(0)
$276.13 Price reduced from $541.00
Save $264.87
Have a Question? +1 (866) 863-0907

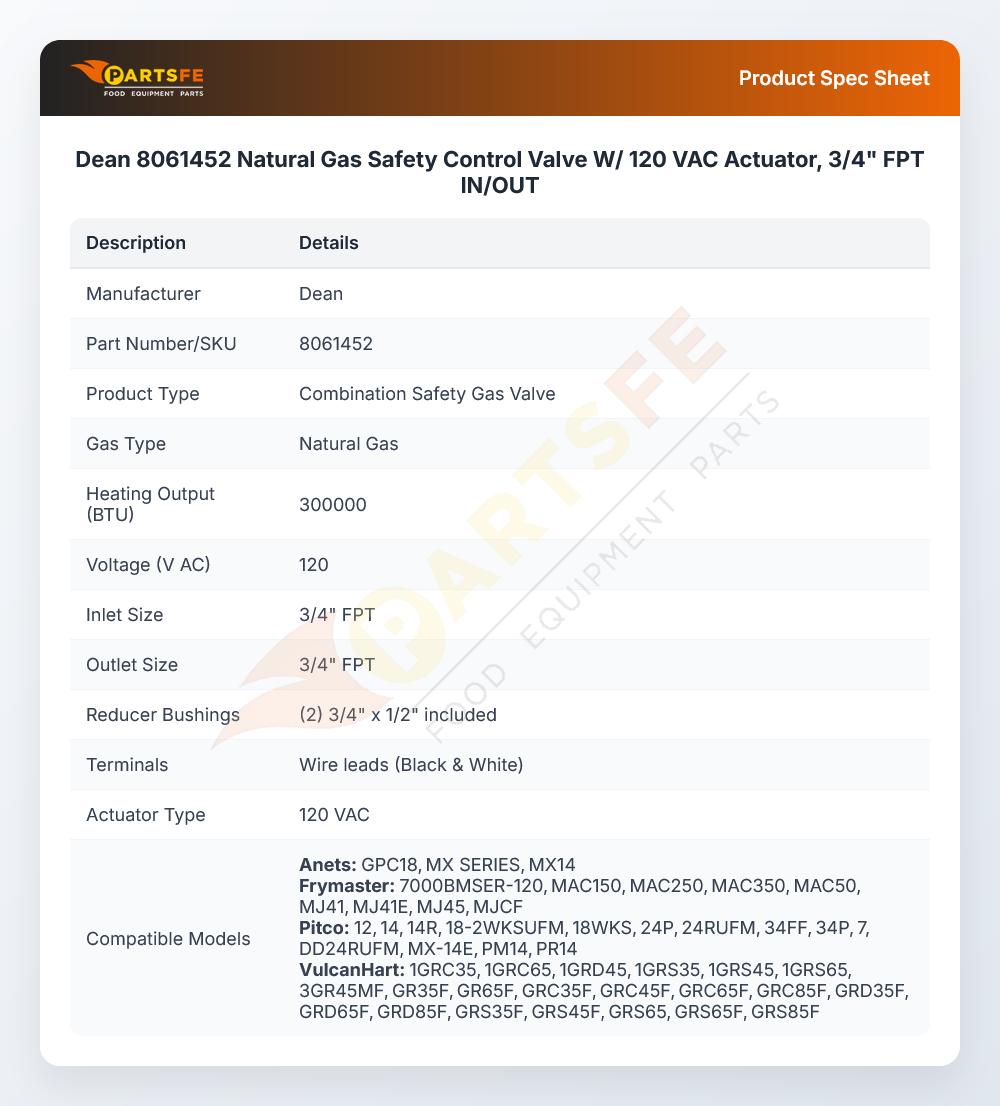

Specifications:

  • Nat Gas Safety, 3/4" Fpt In/Out, 300.000 Btu, (2) 3/4" X
  • 1/2" Reducer Bushings, 120 Vac Actuator, Blk & Wht Wires,
  • W/Eco Slotted Thermopile Magnet, Model 7000 Bmser-120
  • Thermopile, H231, T-103, # 51-1122, Screw In Type, 7/16-27
  • Brass Pile Holding Nut, 3/8-32 Thread, For Magnet, 750Mv,
  • 500Mv Under Load ,
  • Thermopile, Push On, For Frymaster, # 51-1348.
  • Frymaster Fryer Mac(50,150,250,350), Mj(41,41E,45), Mjcf,
  • Mjcfe. Series: Fm, Mac50.Fmcfe, Fmcfec, J3F, J65X, Jcfx,
  • Kj3Fc,
  • Pitco Fryer Gas Fryers Which Are Rated @ Over 100,000 Btu.
  • Models:24R, 18Wks, 14F

Description

The Dean 8061452 Combination Safety Valve 120 VAC regulates the flow of natural gas via an electrically operated mechanism that is linked to the appliances controls. It works by either allowing or restricting the flow of gas depending on the operating conditions and the safety conditions that are sensed during the use of the equipment. This type of valve is typically installed on the fuel supply side of gas-fired systems and other commercial kitchen equipment. The 3/4" female threaded In/Out connections allow for attachment of gas lines to allow controlled supply of fuel to the burner assembly during cooking operations.

Dimensions:

  • Weight: 2.4 lbs
  • Length: 5.75 in
  • Height: 3.5 in
  • Width: 4.5 in

ANETS:

P5045650 P5045650-C P5045651 P5045651-C

DEAN:

806-1452 806-1452SP 8061452SP 807-0308 8070308

FRYMASTER:

806-1452 806-1452SP 8061452SP 807-0308 8070308 FM806-1452 FM806-1452SP FM8061452 FM8061452SP FM807-0308 FM8070308

PITCO:

P5045650 P5045650-C P5045651 P5045651-C P5045657 PTP5045657

U-LINE:

700-470

VULCAN HART:

470841-3 VH470841-3
