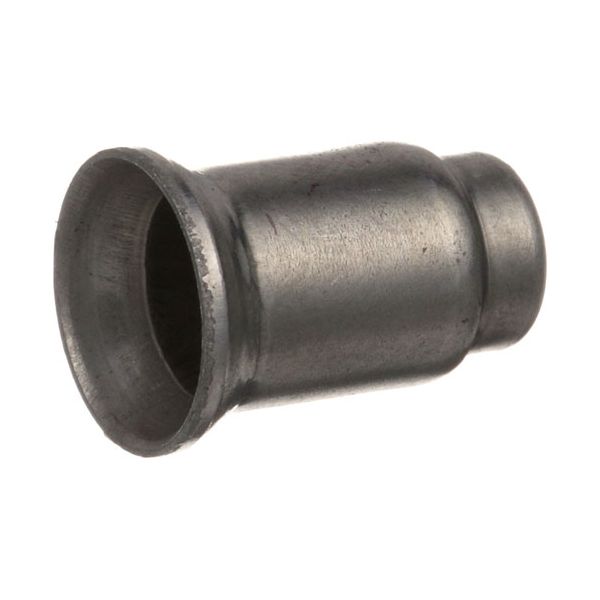

main product photo

Jade Range 4623700000 Range LP Pilot Orifice

Be the first to review this product
$8.50
In stock
SKU
4623700000
Add to Wish List
Griddle & Grill Parts, Gas Grill Orifices,
Manufacturer:
The Jade Range 4623700000 Range LP Pilot Orifice works by limiting the amount of liquid propane that passes through a certain calibrated volume of gas required to maintain a steady pilot flame. This component directs the pressurized air via a tiny hole to sustain the required ignition source to the main burners. The opening is placed in the ignition light assembly, and it is threaded directly into the fuel supply line and above the heater head. This is a brass fitting that makes sure that the fuel-to-air ratio is appropriate to maintain constant combustion.

Dimensions

  • Length: 0.5 In
  • Width: 0.25 In
  • Height: 0.5 In
  • Weight: 0.01 lbs
https://partsfe.com/media/catalog/product/j/a/jade-range-4623700000-372-dia-lp-pilot-orifice-010-hole-x-1-4-66494-2.jpg

Product Notes

  • Lp Pilot Orifice .010" Hole X 1/4",
  • .372" Dia X .530" Long
  • Blodgett Oven Series 900, Early Units Updated & Units Made
  • After 1-25-09.
  • Henny Penny Fryer 600, Og- 301,302,303
  • Imperial Fryer If, Ihr, Ir
  • Vulcan Oven
  • Wolf Fryer Wtf-35, Wtf-42
  • Wolf Grill
AMERICAN RANGE:
11002, 11007, A11110, AMR11002, AMR11007, AMRA11110
ANETS:
BAKERS PRIDE:
2A-M1245A, BKPM1245X, M1245X
BLODGETT:
COMSTOCK CASTLE:
DYNAMIC COOKING SYSTEMS:
13028-10, DCS13028-10
HENNY PENNY:
IMPERIAL:
1018, IMP1018
KEATING:
007766, 007786, 7786, KEA007786, KEA7786
ROYAL RANGE:
SOUTHBEND:
STERO:
STA2A-45352, STA2A-80401-02, STA2A45352, STA2A80401-02, STA2K-45357, STA2K45357, STA45352, STA45357, STA65352, STA80401-02, WEL2A-45352, WEL2A45352
U-LINE:
10-114
Reviews
Write Your Own Review
You're reviewing:Jade Range 4623700000 Range LP Pilot Orifice
Your Rating
FAQS
Customer Questions
What is the Best Electric Griddle?

Electric Griddle is an electronic equipment that uses an electric element as its heat source. It has a large cooking surface often made up of nonstick material. Electric Griddle has a surface which you do not find in the regular stovetop cookware. ...

Read More
What maintenance is required for the Jade Range 4623700000 Pilot Orifice?

Inspect the pilot orifice regularly for clogs caused by grease or debris that can restrict gas flow. Clean the hole carefully using proper tools to avoid damage. Ensure the fitting remains tight and leak-free. Always shut off the gas supply before servicing.

What are common issues with the Jade Range 4623700000 Pilot Orifice?

  • Blockage from grease or carbon buildup restricting gas flow.
  • Weak or inconsistent pilot flame causing ignition issues.
  • Gas leakage from loose or damaged connections.
  • Irregular flame pattern due to improper orifice alignment.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Turn off gas supply and allow unit to cool.

Step2: Ensure area is well ventilated and wear protective gloves.

Step3: Remove burner assembly carefully using appropriate tools.

Step4: Unscrew existing pilot orifice without stripping threads.

Step5: Inspect and clean fitting threads remove debris if present.

Step6: Install new orifice securely align properly before tightening.

Step7: Reassemble burner components ensure correct alignment.

Step8: Restore gas and test for leaks; check flame use soap solution.
