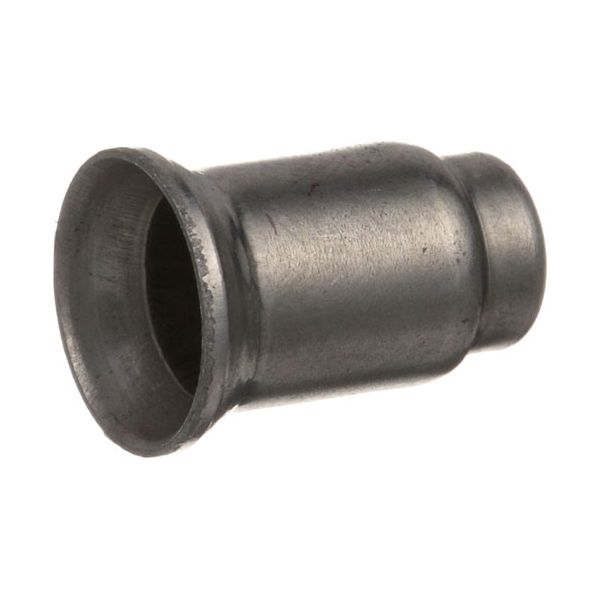

Functions as an integral part of propane-fired cooking equipment, this pilot orifice controls the flow of LP gas to the pilot assembly for reliable ignition and stable burner operation. Featuring a #10 orifice size with a 0.010-inch hole, a 1/4-inch connection, and dimensions of approximately 0.372-inch diameter by 0.530-inch length, it helps deliver the correct amount of propane to the pilot flame. Commonly used in cheesemelters, fryers, ovens, grills, and other commercial gas equipment, the orifice plays an important role in maintaining proper pilot performance and ignition consistency. A blocked, damaged, or worn pilot orifice can lead to weak pilot flames, ignition difficulties, or inconsistent burner operation. Replacing the component can help restore proper gas flow, dependable ignition performance, and efficient equipment operation.
Equipment Compatibility:
Replacement pilot gas control applications for Imperial pilot orifice assemblies include commercial fryers, ovens, cheesemelters, grills, and gas cooking equipment. This Pilot Orifice 1018 is compatible with commercial equipment from leading brands such as Imperial, Vulcan Hart, Pitco, Frymaster, Henny Penny, Garland, Blodgett, Bakers Pride, American Range, Royal Range, Lang, Montague, Anets, and more, where controlled pilot gas flow is required for proper equipment operation.
Brand Compatibility:
This pilot orifice replaces multiple part numbers used across compatible equipment models from brands such as Imperial, Vulcan Hart, Pitco, Frymaster, Henny Penny, Garland, Blodgett, Bakers Pride, American Range, Royal Range, Lang, Montague, and Anets. Complete cross-reference details are provided separately for identification and ordering purposes.
Product Specifications:
SKU: 1018
Manufacturer: Imperial
Product Type: Pilot Orifice
Gas Type: Propane (LP)
Orifice Size: #10
Hole Size: 0.010"
Connection Size: 1/4"
Diameter: 0.372"
Length: 0.530"
Application: Pilot Burner Gas Flow Control
Equipment Type: Commercial Gas Cooking Equipment
Key Features:
- Controls propane flow to pilot assemblies to help maintain proper pilot burner operation and gas distribution
- #10 orifice with 0.010-inch opening for accurate LP gas metering in compatible pilot systems
- Supports stable pilot flame performance for improved burner ignition and operational consistency
- Helps maintain consistent ignition operation by delivering the correct amount of propane to the pilot flame
- Designed for commercial gas-fired equipment used in foodservice and cooking applications
"Once the old orifice was replaced, the pilot stayed lit consistently, and burner ignition improved."
