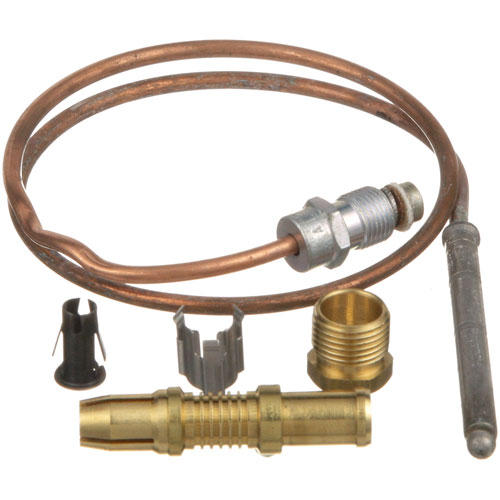

American Range 10485 Thermocouple 18" 20-30mV

SKU: 10485 1-10485 Brand:
American Range
Availability:
In Stock
(0)
$23.31 Price reduced from $37.00
Save $13.69
Have a Question? +1 (866) 863-0907

Specifications:

  • 1980 Series Snap Fit 18" Thermocouple, 20-30 Mv
  • American Permanent Ware Griddle Ggm, Ggt
  • Comstock Castle Oven Bake, Barbeque & Pizza Ovens.
  • Series: C, D, F, K.
  • Dynamic Cooking Systems Oven All
  • Garland Broiler 6-40/50S, 7-40/50S, 8-40/50S, 60-40/50R
  • Oven Series: H281, P280. Standard Oven From 03/99 In
  • Canada Only, Range: G20-Sph
  • Imperial Model?
  • Star Fryer M14, Mi4 (D,Dl), M18, Mi8(D,Dl), M43, 215B, 216,
  • 403 404
  • Us Range Oven P-4-20.
  • Wolf Oven Ch, Chssd, R

Description

The American Range 10485 Thermocouple 18" is a replacement component that has a production of 20-30 mV and can be used in commercial cooking equipment. It works in the sense that it detects the presence of a pilot flame and sends a small voltage signal to the gas valve so that the appliance can operate safely. This thermocouple is also used in ovens, ranges and other gas-powered appliances as a sure way of stopping the flow of gas when the pilot flame is out. It can be used for replacement or maintenance purposes to keep the appliances operational.

Dimensions:

  • Weight: 0.1 lbs
  • Length: 5 in
  • Height: 0.5 in
  • Width: 4 in

AMERICAN RANGE:

A11100 AMRA11100

ANETS:

ANEP8900-32 P8900-32

APW WYOTT:

1473103 AS-1473103

CECILWARE:

F002A F002F GMF002A GMF002F

COMSTOCK CASTLE:

17005 COM17005 COMT46 T46

DYNAMIC COOKING SYSTEMS:

13007 13007-01

GARLAND:

1019418 1029410 1307401 1415000 227002 227122 227183 4518817 G01575-1 GL1019418 GL1029410 GL1415000 GL227183 GLG01575-1

HOBART:

00-920325 14268 412788-1 714268 920325

IMPERIAL:

1121 30030 IMP1121

JADE RANGE:

460-126-000 4612600000 4620100000

ROYAL RANGE:

2175 2179

SOUTHBEND:

1163868 1683868 SOU1163868 SOU1683868

STAR MFG:

2J-6726 2J6726 6726 H456

STERO:

STA2J-6726 STA2J6726 STA6726 STAH456

TRI-STAR:

310210 TRS310210

U-LINE:

1980-018

VULCAN HART:

00-920325 14268 412788-1 714268 920325

Step1: Turn off gas and power let unit cool.

Step2: Remove access panel and old thermocouple.

Step3: Disconnect from safety valve carefully.

Step4: Install new thermocouple in same position and tighten.

Step5: Reconnect and secure wiring.

Step6: Restore gas/power and test flame safety.

  • What maintenance is required for the American Range 10485 Thermocouple?

    Inspect the thermocouple regularly to ensure proper positioning within the flame path for accurate sensing. Keep the tip clean from carbon buildup to maintain signal strength. Ensure secure electrical connections. Replace if response becomes inconsistent to maintain safe gas valve operation.

  • What are common issues with the American Range 10485 Thermocouple?

    • Inconsistent millivolt output.
    • Pilot flame not staying lit.
    • Thermocouple misalignment in flame.
    • Slow or failed gas valve response.
    • Carbon buildup affecting signal accuracy.
