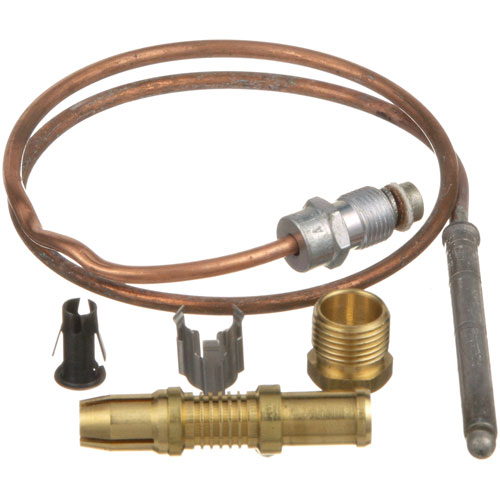

Southbend 1683868 Thermocouple 18" 20-30mV 1980 Series

SKU: 1683868 1-1683868 Brand:
Southbend
Availability:
In Stock
(0)
$68.67 Price reduced from $109.00
Save $40.33
Have a Question? +1 (866) 863-0907

Specifications:

  • 1980 Series Snap Fit 18" Thermocouple, 20-30 Mv
  • American Permanent Ware Griddle Ggm, Ggt
  • Comstock Castle Oven Bake, Barbeque & Pizza Ovens.
  • Series: C, D, F, K.
  • Dynamic Cooking Systems Oven All
  • Garland Broiler 6-40/50S, 7-40/50S, 8-40/50S, 60-40/50R
  • Oven Series: H281, P280. Standard Oven From 03/99 In
  • Canada Only, Range: G20-Sph
  • Imperial Model?
  • Star Fryer M14, Mi4 (D,Dl), M18, Mi8(D,Dl), M43, 215B, 216,
  • 403 404
  • Us Range Oven P-4-20.
  • Wolf Oven Ch, Chssd, R

Description

The Southbend 1683868 Thermocouple 18" 20-30mV 1980 Series is a temperature sensor that produces a small voltage signal when the sensing end of the system is hot, and the voltage is proportional to the temperature at the junction. When the temperature rises or falls, it generates a variation of millivoltage, which the control system uses to control the burner. It is installed in the flame or heat stream of compatible gas equipment, usually close to the pilot or main burner where precise temperature measurement is required. When it does not provide the signal range needed when used normally.

Dimensions:

  • Weight: 0.1 lbs
  • Length: 5 in
  • Height: 0.5 in
  • Width: 4 in

AMERICAN RANGE:

10485 A11100 AMRA11100

ANETS:

ANEP8900-32 P8900-32

APW WYOTT:

1473103 AS-1473103

CECILWARE:

F002A F002F GMF002A GMF002F

COMSTOCK CASTLE:

17005 COM17005 COMT46 T46

DYNAMIC COOKING SYSTEMS:

13007 13007-01

GARLAND:

1019418 1029410 1307401 1415000 227002 227122 227183 4518817 G01575-1 GL1019418 GL1029410 GL1415000 GL227183 GLG01575-1

HOBART:

00-920325 14268 412788-1 714268 920325

IMPERIAL:

1121 30030 IMP1121

JADE RANGE:

460-126-000 4612600000 4620100000

ROYAL RANGE:

2175 2179

SOUTHBEND:

1163868 SOU1163868 SOU1683868

STAR MFG:

2J-6726 2J6726 6726 H456

STERO:

STA2J-6726 STA2J6726 STA6726 STAH456

TRI-STAR:

310210 TRS310210

U-LINE:

1980-018

VULCAN HART:

00-920325 14268 412788-1 714268 920325

Step1: Turn off gas supply and disconnect power to the appliance.

Step2: Allow equipment to cool completely before starting.

Step3: Locate and remove the old thermocouple from the pilot assembly.

Step4: Install the new thermocouple in the same position, securing it firmly.

Step5: Connect the lead to the gas valve hand-tight, then snug gently.

Step6: Restore gas and power, then test the pilot for proper operation.

  • What maintenance is required for the Southbend 1683868 Thermocouple?

    Inspect the thermocouple for dirt, corrosion, or misalignment. Clean gently to maintain proper sensing. Ensure secure connections. Position correctly in the flame path for accurate temperature detection.

  • What are common issues with the Southbend 1683868 Thermocouple?

    • Thermocouple failing to detect flame.
    • Weak signal causing burner shutdown.
    • Corrosion affecting performance.
    • Loose connections interrupting operation.
    • Improper positioning reducing sensitivity.
