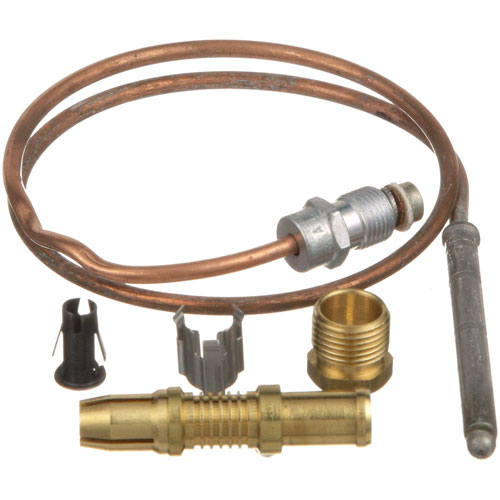

Garland 1019418 Range Thermocouple 18"L

SKU: 1019418 1-1019418 Brand:
Garland
Availability:
In Stock
(0)
$15.23 Price reduced from $27.20
Save $11.97
Have a Question? +1 (866) 863-0907

Specifications:

  • 1980 Series Snap Fit 18" Thermocouple, 20-30 Mv
  • American Permanent Ware Griddle Ggm, Ggt
  • Comstock Castle Oven Bake, Barbeque & Pizza Ovens.
  • Series: C, D, F, K.
  • Dynamic Cooking Systems Oven All
  • Garland Broiler 6-40/50S, 7-40/50S, 8-40/50S, 60-40/50R
  • Oven Series: H281, P280. Standard Oven From 03/99 In
  • Canada Only, Range: G20-Sph
  • Imperial Model?
  • Star Fryer M14, Mi4 (D,Dl), M18, Mi8(D,Dl), M43, 215B, 216,
  • 403 404
  • Us Range Oven P-4-20.
  • Wolf Oven Ch, Chssd, R

Description

The Garland 1019418 Range Thermocouple 18" is used to measure the heat of a pilot flame by producing a small electrical signal when hot. The signal also regulates the operation of the gas valve by ensuring the presence of flames. It is mounted close to the pilot burner and the sensing tip is placed in the flame stream. The lead is attached to the gas control valve. The thermocouple is mounted using hardware. It is placed in a way that facilitates adequate flame detection in the range ignition system.

Dimensions:

  • Weight: 0.1 lbs
  • Length: 5 in
  • Height: 0.5 in
  • Width: 4 in

AMERICAN RANGE:

10485 A11100 AMRA11100

ANETS:

ANEP8900-32 P8900-32

APW WYOTT:

1473103 AS-1473103

CECILWARE:

F002A F002F GMF002A GMF002F

COMSTOCK CASTLE:

17005 COM17005 COMT46 T46

DYNAMIC COOKING SYSTEMS:

13007 13007-01

GARLAND:

1029410 1307401 1415000 227002 227122 227183 4518817 G01575-1 GL1019418 GL1029410 GL1415000 GL227183 GLG01575-1

HOBART:

00-920325 14268 412788-1 714268 920325

IMPERIAL:

1121 30030 IMP1121

JADE RANGE:

460-126-000 4612600000 4620100000

ROYAL RANGE:

2175 2179

SOUTHBEND:

1163868 1683868 SOU1163868 SOU1683868

STAR MFG:

2J-6726 2J6726 6726 H456

STERO:

STA2J-6726 STA2J6726 STA6726 STAH456

TRI-STAR:

310210 TRS310210

U-LINE:

1980-018

VULCAN HART:

00-920325 14268 412788-1 714268 920325

Step1: Turn off the gas supply and allow the appliance to cool.

Step2: Remove the old thermocouple from the pilot assembly.

Step3: Inspect the pilot bracket and gas fittings for corrosion.

Step4: Insert the new thermocouple into the pilot flame bracket.

Step5: Secure it in place using the mounting screw.

Step6: Reconnect the thermocouple nut to the gas valve.

Step7: Turn on the gas and test the pilot flame.

Step8: Ensure the thermocouple properly shuts off gas when the flame is extinguished.

  • What maintenance is required for the Garland 1019418 Thermocouple?

    Inspect the thermocouple regularly for corrosion and soot buildup. Clean gently with a soft brush or cloth, and ensure connections are tight. Testing the voltage output periodically assists in confirming accurate operation. Handle to avoid bending or breaking the sensor.

  • What are the common issues with the Garland 1019418 Thermocouple?

    • Fails to detect or maintain flame.
    • Inconsistent temperature readings.
    • Corrosion or soot affecting performance.
    • Loose or faulty electrical connections.
