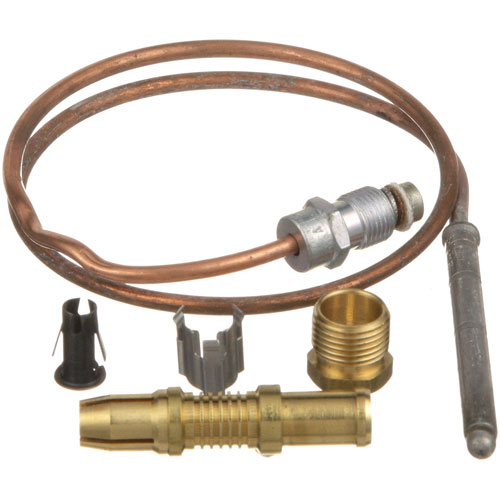

Jade Range 4620100000 Convection Oven Thermocouple 18" 20-30mV 1980 Series

SKU: 4620100000 1-4620100000 Brand:
Jade Range
Availability:
In Stock
(0)
$55.76 Price reduced from $72.41
Save $16.65
Have a Question? +1 (866) 863-0907

Specifications:

  • 1980 Series Snap Fit 18" Thermocouple, 20-30 Mv
  • American Permanent Ware Griddle Ggm, Ggt
  • Comstock Castle Oven Bake, Barbeque & Pizza Ovens.
  • Series: C, D, F, K.
  • Dynamic Cooking Systems Oven All
  • Garland Broiler 6-40/50S, 7-40/50S, 8-40/50S, 60-40/50R
  • Oven Series: H281, P280. Standard Oven From 03/99 In
  • Canada Only, Range: G20-Sph
  • Imperial Model?
  • Star Fryer M14, Mi4 (D,Dl), M18, Mi8(D,Dl), M43, 215B, 216,
  • 403 404
  • Us Range Oven P-4-20.
  • Wolf Oven Ch, Chssd, R

Description

The Jade Range 4620100000 Convection Oven Thermocouple 18 inch 20-30 mV 1980 Series produces a low-voltage electrical signal when the sensing tip is hot which is detected by the oven to ensure the presence of flames. It reaches the combustion area. This thermocouple is mounted in the burner chamber, and the sensing end is placed in the flame path with the lead being connected to the gas valve or control board. It is used as a flame detector in the safety system of the oven.

Dimensions:

  • Weight: 0.1 lbs
  • Length: 5 in
  • Height: 0.5 in
  • Width: 4 in

AMERICAN RANGE:

10485 A11100 AMRA11100

ANETS:

ANEP8900-32 P8900-32

APW WYOTT:

1473103 AS-1473103

CECILWARE:

F002A F002F GMF002A GMF002F

COMSTOCK CASTLE:

17005 COM17005 COMT46 T46

DYNAMIC COOKING SYSTEMS:

13007 13007-01

GARLAND:

1019418 1029410 1307401 1415000 227002 227122 227183 4518817 G01575-1 GL1019418 GL1029410 GL1415000 GL227183 GLG01575-1

HOBART:

00-920325 14268 412788-1 714268 920325

IMPERIAL:

1121 30030 IMP1121

JADE RANGE:

460-126-000 4612600000

ROYAL RANGE:

2175 2179

SOUTHBEND:

1163868 1683868 SOU1163868 SOU1683868

STAR MFG:

2J-6726 2J6726 6726 H456

STERO:

STA2J-6726 STA2J6726 STA6726 STAH456

TRI-STAR:

310210 TRS310210

U-LINE:

1980-018

VULCAN HART:

00-920325 14268 412788-1 714268 920325

Step1: Shut off gas supply and electrical power, then ensure the appliance is completely cool.

Step2: Open access panel and detach the old thermocouple from the gas valve and pilot assembly.

Step3: Position the new thermocouple so the tip sits directly in the pilot flame path.

Step4: Secure fittings tightly to the control valve and reassemble all removed components.

Step5: Restore gas, ignite pilot, and confirm stable flame and proper safety shutdown response.

  • What maintenance is required for the Jade Range 4620100000 Thermocouple?

    Inspect the thermocouple regularly for soot, corrosion, or physical damage. Clean the sensing tip to ensure accurate flame detection and stable voltage output. Confirm proper positioning in the pilot flame. Always shut off gas before handling to avoid leaks or accidental ignition.

  • What are common issues with the Jade Range 4620100000 Thermocouple?

    • Pilot flame not staying lit consistently.
    • Low or fluctuating millivolt output.
    • Improper flame contact with thermocouple tip.
    • Loose or worn connection fittings.
    • Heat damage or buildup affecting performance.
