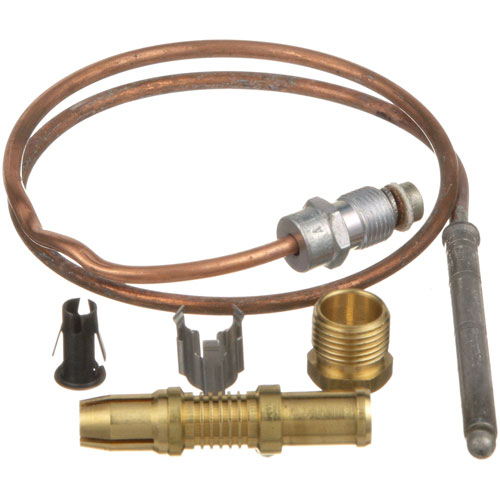

Dynamic Cooking Systems 13007-01 Thermocouple

SKU: 13007-01 1-13007-01 Brand:
Dynamic Cooking Systems
Availability:
In Stock
(0)
$18.28 Price reduced from $23.75
Save $5.47
Have a Question? +1 (866) 863-0907

Specifications:

  • 1980 Series Snap Fit 18" Thermocouple, 20-30 Mv
  • American Permanent Ware Griddle Ggm, Ggt
  • Comstock Castle Oven Bake, Barbeque & Pizza Ovens.
  • Series: C, D, F, K.
  • Dynamic Cooking Systems Oven All
  • Garland Broiler 6-40/50S, 7-40/50S, 8-40/50S, 60-40/50R
  • Oven Series: H281, P280. Standard Oven From 03/99 In
  • Canada Only, Range: G20-Sph
  • Imperial Model?
  • Star Fryer M14, Mi4 (D,Dl), M18, Mi8(D,Dl), M43, 215B, 216,
  • 403 404
  • Us Range Oven P-4-20.
  • Wolf Oven Ch, Chssd, R

Description

The Dynamic Cooking Systems 13007-01 Thermocouple is a flame-detecting system that is installed in commercial gas cooking equipment to detect the presence of pilot flames. It is placed next to the pilot assembly and produces a millivolt signal when hot enabling the gas valve to stay open during operation. This thermocouple is usually found in kitchen appliances where flame monitoring is required in a constant manner. The pilot flame terminates the signal and the flow of gas is stopped. The component is a part of the ignition safety system that assists in the stable operation.

Dimensions:

  • Weight: 0.1 lbs
  • Length: 5 in
  • Height: 0.5 in
  • Width: 4 in

AMERICAN RANGE:

10485 A11100 AMRA11100

ANETS:

ANEP8900-32 P8900-32

APW WYOTT:

1473103 AS-1473103

CECILWARE:

F002A F002F GMF002A GMF002F

COMSTOCK CASTLE:

17005 COM17005 COMT46 T46

DYNAMIC COOKING SYSTEMS:

13007

GARLAND:

1019418 1029410 1307401 1415000 227002 227122 227183 4518817 G01575-1 GL1019418 GL1029410 GL1415000 GL227183 GLG01575-1

HOBART:

00-920325 14268 412788-1 714268 920325

IMPERIAL:

1121 30030 IMP1121

JADE RANGE:

460-126-000 4612600000 4620100000

ROYAL RANGE:

2175 2179

SOUTHBEND:

1163868 1683868 SOU1163868 SOU1683868

STAR MFG:

2J-6726 2J6726 6726 H456

STERO:

STA2J-6726 STA2J6726 STA6726 STAH456

TRI-STAR:

310210 TRS310210

U-LINE:

1980-018

VULCAN HART:

00-920325 14268 412788-1 714268 920325

Step1: Shut off gas and electrical power completely and confirm appliance is cool before starting.

Step2: Open access panel and place the existing thermocouple and pilot assembly.

Step3: Carefully disconnect the old thermocouple from the gas valve and pilot bracket.

Step4: Route the new thermocouple along the original path, avoiding sharp bends or hot surfaces.

Step5: Secure the sensing tip in the pilot flame area for accurate signal generation.

Step6: Reconnect to the control valve, restore gas, and test pilot ignition and flame stability before full operation.

  • What maintenance is required for the Dynamic Cooking Systems 13007-01 Thermocouple?

    Regularly inspect the thermocouple for wear, corrosion, or loose connections. Keep the tip clean and properly positioned in the pilot flame. Ensure secure wiring to maintain accurate voltage output. Always turn off gas supply before servicing to ensure safety.

  • What are common issues with the Dynamic Cooking Systems 13007-01 Thermocouple?

    • Weak or inconsistent millivolt output.
    • Pilot light not staying lit.
    • Faulty or loose connections.
    • Corroded or worn thermocouple tip.
    • Improper positioning in flame.
    • Delayed burner ignition response.
