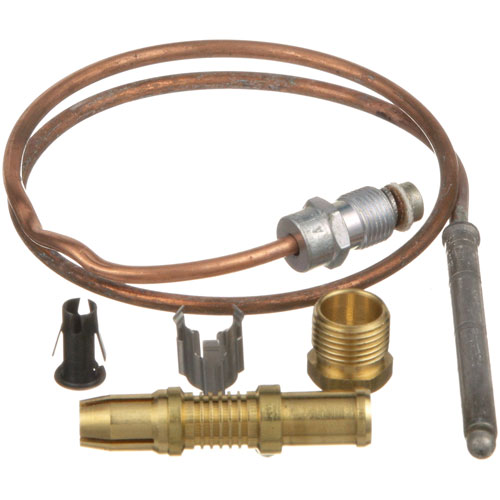

Imperial 30030 Thermocouple 18"

SKU: 30030 1-30030 Brand:
Imperial
Availability:
In Stock
(0)
$18.28 Price reduced from $23.75
Save $5.47
Have a Question? +1 (866) 863-0907

Specifications:

  • 1980 Series Snap Fit 18" Thermocouple, 20-30 Mv
  • American Permanent Ware Griddle Ggm, Ggt
  • Comstock Castle Oven Bake, Barbeque & Pizza Ovens.
  • Series: C, D, F, K.
  • Dynamic Cooking Systems Oven All
  • Garland Broiler 6-40/50S, 7-40/50S, 8-40/50S, 60-40/50R
  • Oven Series: H281, P280. Standard Oven From 03/99 In
  • Canada Only, Range: G20-Sph
  • Imperial Model?
  • Star Fryer M14, Mi4 (D,Dl), M18, Mi8(D,Dl), M43, 215B, 216,
  • 403 404
  • Us Range Oven P-4-20.
  • Wolf Oven Ch, Chssd, R

Description

The Imperial 30030 Thermocouple 18" is a flame sensor that is used in gas-powered commercial cooking systems. It is installed by the pilot assembly and detects heat and then produces a millivolt signal to hold the gas valve open as long as it is operating. In case of flame, the signal is terminated and the flow of the gas is turned off to avoid unsafe conditions. This thermocouple is widely applicable in ranges and broilers available in kitchens. The system is in the safety and ignition system of the appliance that aids in maintaining the same flame control and equipment.

Dimensions:

  • Weight: 0.1 lbs
  • Length: 5 in
  • Height: 0.5 in
  • Width: 4 in

AMERICAN RANGE:

10485 A11100 AMRA11100

ANETS:

ANEP8900-32 P8900-32

APW WYOTT:

1473103 AS-1473103

CECILWARE:

F002A F002F GMF002A GMF002F

COMSTOCK CASTLE:

17005 COM17005 COMT46 T46

DYNAMIC COOKING SYSTEMS:

13007 13007-01

GARLAND:

1019418 1029410 1307401 1415000 227002 227122 227183 4518817 G01575-1 GL1019418 GL1029410 GL1415000 GL227183 GLG01575-1

HOBART:

00-920325 14268 412788-1 714268 920325

IMPERIAL:

1121 IMP1121

JADE RANGE:

460-126-000 4612600000 4620100000

ROYAL RANGE:

2175 2179

SOUTHBEND:

1163868 1683868 SOU1163868 SOU1683868

STAR MFG:

2J-6726 2J6726 6726 H456

STERO:

STA2J-6726 STA2J6726 STA6726 STAH456

TRI-STAR:

310210 TRS310210

U-LINE:

1980-018

VULCAN HART:

00-920325 14268 412788-1 714268 920325

Step1: Turn off gas and power, cool appliance.

Step2: Remove access panel and disconnect old thermocouple from valve and pilot.

Step3: Route new thermocouple ensuring tip sits in pilot flame correctly.

Step4: Secure connection to gas valve and tighten mounting hardware.

Step5: Restore gas, ignite pilot, check stable flame and safety shutdown.

  • What maintenance is required for the Imperial 30030 Thermocouple?

    Check the thermocouple periodically for dirt, corrosion, or loose fittings that may affect performance. Clean the tip carefully to maintain proper flame sensing. Ensure it is correctly positioned in the pilot flame. Always turn off the gas supply before performing maintenance operation.

  • What are common issues with the Imperial 30030 Thermocouple?

    • Weak or inconsistent millivolt signal output.
    • Improper alignment with pilot flame.
    • Loose or damaged connection threads.
    • Heat damage or residue buildup on the sensor.
