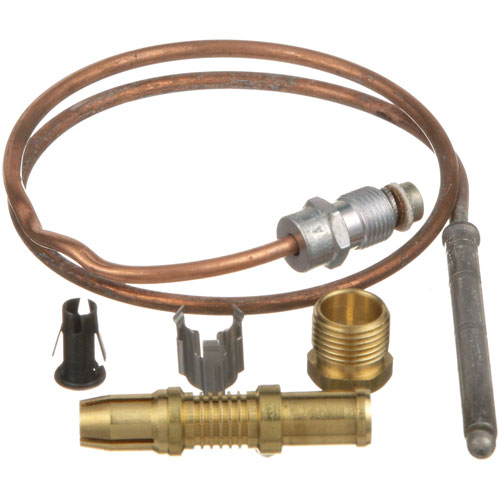

Vulcan Hart 00-920325 Thermocouple MGB/MGCB

SKU: 00-920325 1-00-920325 Brand:
Vulcan Hart
Availability:
In Stock
(0)
$61.22 Price reduced from $79.50
Save $18.28
Have a Question? +1 (866) 863-0907

Specifications:

  • 1980 Series Snap Fit 18" Thermocouple, 20-30 Mv
  • American Permanent Ware Griddle Ggm, Ggt
  • Comstock Castle Oven Bake, Barbeque & Pizza Ovens.
  • Series: C, D, F, K.
  • Dynamic Cooking Systems Oven All
  • Garland Broiler 6-40/50S, 7-40/50S, 8-40/50S, 60-40/50R
  • Oven Series: H281, P280. Standard Oven From 03/99 In
  • Canada Only, Range: G20-Sph
  • Imperial Model?
  • Star Fryer M14, Mi4 (D,Dl), M18, Mi8(D,Dl), M43, 215B, 216,
  • 403 404
  • Us Range Oven P-4-20.
  • Wolf Oven Ch, Chssd, R

Description

The Vulcan Hart 00-920325 Thermocouple MGB/MGCB is a flame-sensing system that is available in gas-powered commercial cooking apparatus. It is mounted close to the pilot burner on ranges and griddles to sense the presence of heat and send a millivolt signal which keeps the gas valve open when the system is operating normally. In case the pilot flame is extinguished, the signal is terminated, and the flow of the gas is cut off in order to maximize safety. The thermocouple is used in the ignition and safety system.

Dimensions:

  • Weight: 0.1 lbs
  • Length: 5 in
  • Height: 0.5 in
  • Width: 4 in

AMERICAN RANGE:

10485 A11100 AMRA11100

ANETS:

ANEP8900-32 P8900-32

APW WYOTT:

1473103 AS-1473103

CECILWARE:

F002A F002F GMF002A GMF002F

COMSTOCK CASTLE:

17005 COM17005 COMT46 T46

DYNAMIC COOKING SYSTEMS:

13007 13007-01

GARLAND:

1019418 1029410 1307401 1415000 227002 227122 227183 4518817 G01575-1 GL1019418 GL1029410 GL1415000 GL227183 GLG01575-1

HOBART:

14268 412788-1 714268 920325

IMPERIAL:

1121 30030 IMP1121

JADE RANGE:

460-126-000 4612600000 4620100000

ROYAL RANGE:

2175 2179

SOUTHBEND:

1163868 1683868 SOU1163868 SOU1683868

STAR MFG:

2J-6726 2J6726 6726 H456

STERO:

STA2J-6726 STA2J6726 STA6726 STAH456

TRI-STAR:

310210 TRS310210

U-LINE:

1980-018

VULCAN HART:

14268 412788-1 714268 920325

Step1: Turn off gas and electrical supply and allow equipment to cool completely before starting.

Step2: Remove access panel to reach the pilot assembly and existing thermocouple.

Step3: Disconnect the old thermocouple from the gas control valve.

Step4: Install the new thermocouple, routing to avoid sharp bends or heat damage.

Step5: Position sensing tip directly in steady pilot flame for proper millivolt output.

Step6: Restore gas and power, then test ignition and confirm stable flame operation.

  • What maintenance is required for the Vulcan Hart 00-920325 Thermocouple?

    Inspect the thermocouple for soot buildup, corrosion, or loose connections. Clean the sensing tip carefully to ensure proper flame detection. Verify it is correctly positioned in the pilot flame. Always shut off the gas supply before performing any maintenance for safety.

  • What are common issues with the Vulcan Hart 00-920325 Thermocouple?

    • Pilot light fails to remain lit.
    • Low or inconsistent millivolt output.
    • Misalignment with pilot flame.
    • Loose or damaged connection fittings.
    • Residue or corrosion affecting sensing tip.
