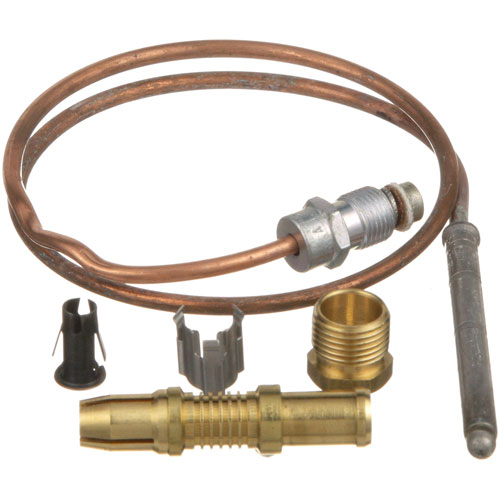

American Range A11100 Range Thermocouple 18" 182°C 20-30mV 1980 Series 42918
Specifications:
- 1980 Series Snap Fit 18" Thermocouple, 20-30 Mv
- American Permanent Ware Griddle Ggm, Ggt
- Comstock Castle Oven Bake, Barbeque & Pizza Ovens.
- Series: C, D, F, K.
- Dynamic Cooking Systems Oven All
- Garland Broiler 6-40/50S, 7-40/50S, 8-40/50S, 60-40/50R
- Oven Series: H281, P280. Standard Oven From 03/99 In
- Canada Only, Range: G20-Sph
- Imperial Model?
- Star Fryer M14, Mi4 (D,Dl), M18, Mi8(D,Dl), M43, 215B, 216,
- 403 404
- Us Range Oven P-4-20.
- Wolf Oven Ch, Chssd, R
Description
Dimensions:
- Weight: 0.1 lbs
- Length: 5 in
- Height: 0.5 in
- Width: 4 in
AMERICAN RANGE:
10485 AMRA11100
ANETS:
ANEP8900-32 P8900-32
APW WYOTT:
GARLAND:
1019418 1029410 1307401 1415000 227002 227122 227183 4518817 G01575-1 GL1019418 GL1029410 GL1415000 GL227183 GLG01575-1
JADE RANGE:
SOUTHBEND:
STERO:
STA2J-6726 STA2J6726 STA6726 STAH456
TRI-STAR:
310210 TRS310210
U-LINE:
1980-018
Step1: Turn off the gas supply and disconnect power to the appliance.
Step2: Remove the old thermocouple from the pilot assembly.
Step3: Inspect the pilot bracket and gas fittings for wear or corrosion.
Step4: Insert the new thermocouple into the pilot flame bracket.
Step5: Secure it with the mounting screw provided.
Step6: Attach the thermocouple nut to the gas valve inlet.
Step7: Turn on gas and test the pilot flame to ensure proper detection.
Step8: Confirm the thermocouple shuts off gas when the flame goes out.
-
What maintenance is required for the American Range A11100 Thermocouple?
Inspect the thermocouple regularly for soot, debris, or corrosion at the tip and connections. Gently clean with a soft cloth and ensure proper alignment. Regular checks support maintaining accurate flame sensing and prevent gas flow issues.
-
What are the common issues with the American Range A11100 Thermocouple?
- Failure to detect flame.
- Erratic gas shutoff.
- Corrosion or buildup on the sensor tip.
- Loose or damaged wiring.
