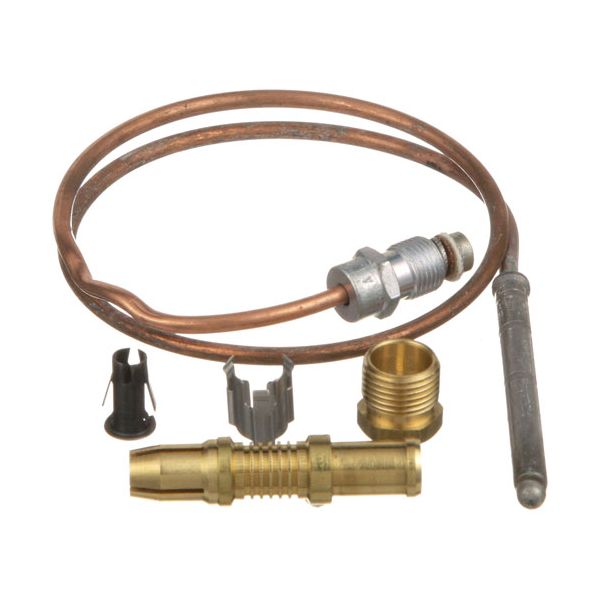

Southbend 1683868 Thermocouple 18" 20-30mV 1980 Series
Special Price $55.58 Regular Price $103.81
In stock
SKU
1683868
Manufacturer:
The Southbend 1683868 Thermocouple 18" 20-30mV 1980 Series is a temperature sensor that produces a small voltage signal when the sensing end of the system is hot, and the voltage is proportional to the temperature at the junction. When the temperature rises or falls, it generates a variation of millivoltage, which the control system uses to control the burner. It is installed in the flame or heat stream of compatible gas equipment, usually close to the pilot or main burner where precise temperature measurement is required. When it does not provide the signal range needed when used normally.
Dimensions
- Length: 5 In
- Width: 4 In
- Height: 0.5 In
- Weight: 0.1 lbs
Product Notes
- 1980 Series Snap Fit 18" Thermocouple, 20-30 Mv
- American Permanent Ware Griddle Ggm, Ggt
- Comstock Castle Oven Bake, Barbeque & Pizza Ovens.
- Series: C, D, F, K.
- Dynamic Cooking Systems Oven All
- Garland Broiler 6-40/50S, 7-40/50S, 8-40/50S, 60-40/50R
- Oven Series: H281, P280. Standard Oven From 03/99 In
- Canada Only, Range: G20-Sph
- Imperial Model?
- Star Fryer M14, Mi4 (D,Dl), M18, Mi8(D,Dl), M43, 215B, 216,
- 403 404
- Us Range Oven P-4-20.
- Wolf Oven Ch, Chssd, R
