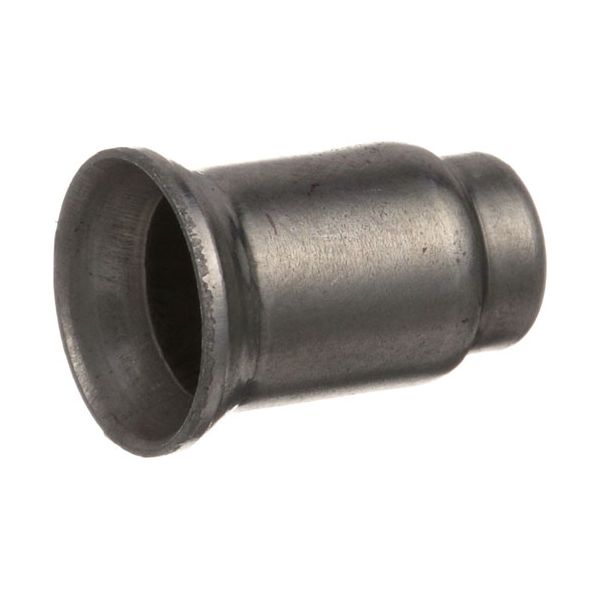

Southbend 1171524 Range Pilot Orifice LP 0.010" Hole

Q: What is the Best Electric Griddle?

Electric Griddle is electronic equipment that uses an electric element as its heat source. It has a large cooking surface often made up of nonstick material. Electric Griddle has a surface which you do not find in the regular stovetop cookware.

Be the first to review this product

$8.50

In stock

SKU

1171524

Categories: Griddle & Grill Parts, Gas Grill Orifices,

Manufacturer:

Southbend

The Southbend 1171524 Range Pilot Orifice LP Hole part is intended to have an opening of 0.010" to control the amount of gas flowing to the pilot assembly. It aids in maintaining a steady supply of ignition to maintain a steady operation. This is commonly used in commercial kitchens and fits in Southbend ranges where the metering of gas is needed to ensure safe burner operation. It has a purpose in the system to ensure the correct level of pilot flame to ensure that the equipment works as expected in the regular cooking processes.

Dimensions

Length: 0.5 In
Width: 0.25 In
Height: 0.5 In
Weight: 0.01 lbs

Product Notes

Lp Pilot Orifice .010" Hole X 1/4",
.372" Dia X .530" Long
Blodgett Oven Series 900, Early Units Updated & Units Made
After 1-25-09.
Henny Penny Fryer 600, Og- 301,302,303
Imperial Fryer If, Ihr, Ir
Vulcan Oven
Wolf Fryer Wtf-35, Wtf-42
Wolf Grill

Replaces Parts

AMERICAN RANGE:

11002, 11007, A11110, AMR11002, AMR11007, AMRA11110

ANETS:

P8903-52

BAKERS PRIDE:

2A-M1245A, BKPM1245X, M1245X

BLODGETT:

52090, BL52090

COMSTOCK CASTLE:

ORL10

DEAN:

810-0125, 8100125

DYNAMIC COOKING SYSTEMS:

13028-10, DCS13028-10

FRYMASTER:

810-0125, 8100125, FM810-0125, FM8100125

GARLAND:

1028203, 1028207, 1293001, 227049-10, GL1028203, GL1028207, GL1293001, GL227049-10

HENNY PENNY:

32407, HEN32407

HOBART:

00-409839-00006, 00-412787-00004, 00-417146-00002, 00-711339, 00-712363, 00-721086-00002, 109839-6, 112787-4, 11339P, 12363, 21086-2, 409839-00006, 409839-6, 412787-00004, 412787-4, 417146-00002, 417146-2, 711339, 711339P, 712363, 721086-00002, 721086-2

IMPERIAL:

1018, IMP1018

JADE RANGE:

46-237, 460-237-000, 460237000, 4623700000

KEATING:

007766, 007786, 7786, KEA007786, KEA7786

LANG:

2A-80401-02, 80401-02

MONTAGUE:

2191-1, 2194-6, 8-6, B34B3, MON2191-1, MON2194-6, MON8-6, MONB34B3, MONR34-4, MONSAL37A1, R34-4, SAL37A1

PITCO:

P6071665, P8903-52, PTP6071665

ROYAL RANGE:

1652

SOUTHBEND:

1171524, SOU1171524

STAR MFG:

2A-45352, 2A-80401-02, 2A45352, 2A80401-02, 2K-45357, 2K45357, 45352, 45357, 65352, 80401-02, WS-65352

STERO:

STA2A-45352, STA2A-80401-02, STA2A45352, STA2A80401-02, STA2K-45357, STA2K45357, STA45352, STA45357, STA65352, STA80401-02, WEL2A-45352, WEL2A45352

U-LINE:

10-114

VULCAN HART:

00-409839-00006, 00-412787-00004, 00-417146-00002, 00-711339, 00-712363, 00-721086-00002, 112787-4, 11339P, 12363, 21086-2, 409839-00006, 412787-00004, 412787-4, 417146-00002, 417146-2, 711339, 711339P, 712363, 721086-00002, 721086-2, VH112787-4, VH11339P, VH21086-2, VH412787-4, VH417146-2, VH711339, VH712363, VH721086-2

Reviews

Write Your Own Review

FAQS

Customer Questions

What is the Best Electric Griddle?

Electric Griddle is an electronic equipment that uses an electric element as its heat source. It has a large cooking surface often made up of nonstick material. Electric Griddle has a surface which you do not find in the regular stovetop cookware. ...

What maintenance is required for the Southbend 1171524 Pilot Orifice?

Clean the pilot orifice periodically to remove dirt, grease, or residue using compressed air or a fine tool. Check for proper fit and alignment during installation. Regular control ensures steady gas flow and accurate pilot ignition performance.

What are common issues with the Southbend 1171524 Pilot Orifice?

Orifice clogging leading to reduced or blocked gas flow.
Inconsistent or weak pilot flame affecting burner ignition.
Leaks caused by improper tightening or worn fittings.
Flame instability due to misalignment or incorrect installation.
