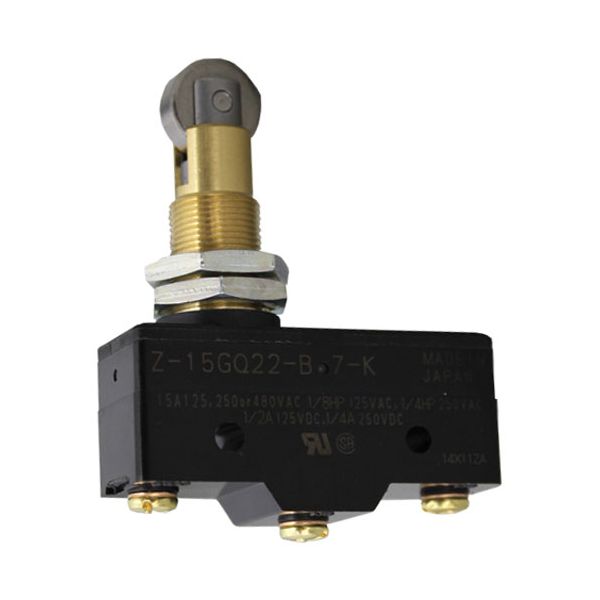

Imperial 0528 Pushbutton Micro Roller Switch W/ 3-Terminals 125A 15/250/480VAC

Be the first to review this product
Special Price $38.72 Regular Price $79.02
In stock
SKU
0528
Add to Wish List
Electrical & Hardware, Switches & Relays,
Manufacturer:
Imperial 0528 Pushbutton Micro Roller Switch is a high performance component that can be used in different industrial applications. It has three terminals and employs a pushbutton and roller system to enable simple initiation and operation. It has a high current of 125A at the existing current and voltage of 15VAC, 250/480VAC to suit its task of switching heavy electrical loads safely. Suitable for use in controlling circuits, it provides long-lasting durability, longer switch life, and low wear. Design flexibility and compact form of a make it ideal for use in machinery, control panels, and automation systems for switching applications with high mechanical and electrical performance.

Dimensions

  • Length: 2.5 In
  • Width: 2 In
  • Height: 1 In
  • Weight: 0.12 lbs
https://partsfe.com/media/catalog/product/i/m/imperial-0528-pushbutton-micro-roller-switch-w-3-terminals-125a-15-250-480vac-58425-2.jpg

Product Notes

  • Micro Roller Switch
  • 3 Terminals, Pushbutton/Roller Type, 125A@15/250/480Vac
  • Imperial Range Ir-C
IMPERIAL:
Reviews
Write Your Own Review
You're reviewing:Imperial 0528 Pushbutton Micro Roller Switch W/ 3-Terminals 125A 15/250/480VAC
Your Rating
FAQS
Customer Questions
No Questions
Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Turn off main power and verify circuit is completely de-energized using a tester.

Step2: Mount switch on panel using appropriate bracket and ensure firm alignment.

Step3: Identify terminals and follow wiring diagram carefully before connections.

Step4: Connect line, load, and ground securely with insulated tools.

Step5: Tighten terminals to rated torque specifications to avoid overheating.

Step6: Test mechanical roller actuation for smooth and proper response.

Step7: Restore power and verify operation under normal load conditions.
