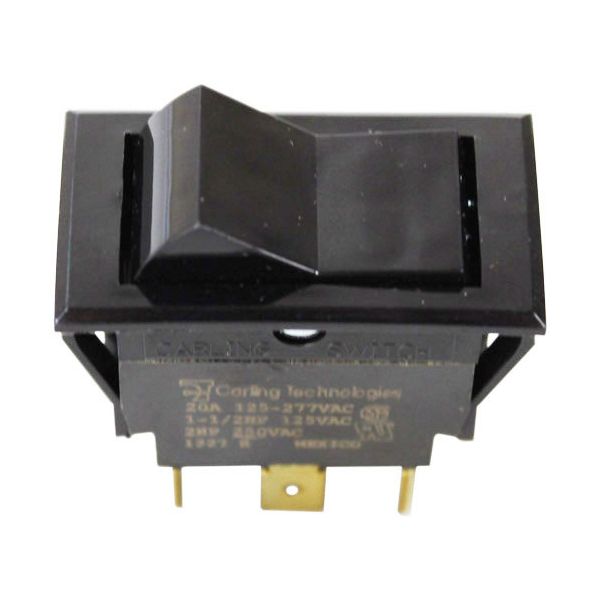

main product photo

Cres Cor 0808-117K Rocker Switch DPDT 7/8" X 1-1/2"

Be the first to review this product
Special Price $29.54 Regular Price $58.60
In stock
SKU
0808-117K
Add to Wish List
Electrical & Hardware, Switches & Relays,
Manufacturer:
The Cres Cor 0808-117K Rocker Switch 7/8" x 1-1/2" DPDT is a type of switch that has two groups of electrical circuits, and when it is turned on, several connections can be controlled. It has a flexible circuit routing capability with an easy flip of the switch providing a double-pole, double-throw configuration. This rocker switch is designed to be installed in panel openings, which makes it a convenient fit in a cutout to easily fit into equipment or control panels and be operated.

Dimensions

  • Length: 1.75 In
  • Width: 1 In
  • Height: 2 In
  • Weight: 0.1 lbs
https://partsfe.com/media/catalog/product/c/r/cres-cor-0808-117k-rocker-switch-7-8-x-1-1-2-dpdt-94058-2.jpg

Product Notes

  • [ Rocker Switch ] [ Fits Hole 7/8" X 1-1/2" ] [ On/On ]
  • [ Dpdt ] [ Terminals 6 (1/4" Tabs) ]
  • [ Amp/Volt 20A/125-277V ] [ Color Black] ,
  • 1.5Hp-125V, 2Hp-250V
  • Cleveland Steamer Convection Steamers: C., "Emergency
  • By-Pass"
  • Crescor 120, 120-240, 120Ph1836D, 120Ph1836D208,
  • 120Ph1836D240, 121Ph, 121Ph-240, 121Ph1818D, 121Ph1818D208,
  • 121Ph1818D240, 121Phua11D, 121Phua11D208, 121Phua11D240,
  • 126Ph, 126Ph-240
  • Garland Oven Series: Bco, Eco, Ico, Mco, Te, Tg, Tte, Ttg,
  • Uco, (May Not Fit Certain Sub-Series - Check Photo In
  • Catalog).
  • Jackson Dishwasher Wash Or Drain, 24B.
  • Us Range Oven Sdg 1 & 2
CLEVELAND:
19992, CLE19992, CLECLE19992, P03054-1
CRES COR:
0808 117K, 0808-117-K, 0808-117K, 0808117K, 808-117-K, 808-117K, CRE0808-117-K, CRE0808-117K, CRE808-117-K, CRE808-117K
MIDDLEBY MARSHALL:
SOUTHBEND:
STAR MFG:
STERO:
TOA3027A8715
Reviews
Write Your Own Review
You're reviewing:Cres Cor 0808-117K Rocker Switch DPDT 7/8" X 1-1/2"
Your Rating
FAQS
Customer Questions
What maintenance is required for the Cres Cor 0808-117K Rocker Switch?

Inspect the switch contacts regularly for carbon buildup and loose connections. Clean external terminals with a dry contact cleaner to maintain conductivity. Ensure wiring is tight and free from heat damage. De-energize the circuit before servicing to prevent electrical hazards.

What are common issues with the Cres Cor 0808-117K Rocker Switch?

  • Contact wear causing intermittent switching failures or signal dropouts.
  • Rocker mechanism sticking or misalignment preventing proper actuation.
  • Overheating leading to terminal discoloration and insulation damage.
  • Electrical arcing under heavy load causing contact pitting.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Disconnect power supply always before installation to prevent electric shock.

Step2: Remove panel and access switch mounting slot carefully.

Step3: Align new rocker switch terminals with wiring diagram.

Step4: Secure switch firmly into opening.

Step5: Reconnect wires ensuring tight correct polarity connections.

Step6: Restore power and test switch operation for proper operation safely.

Step7: Verify wiring is insulated to prevent short circuits.
