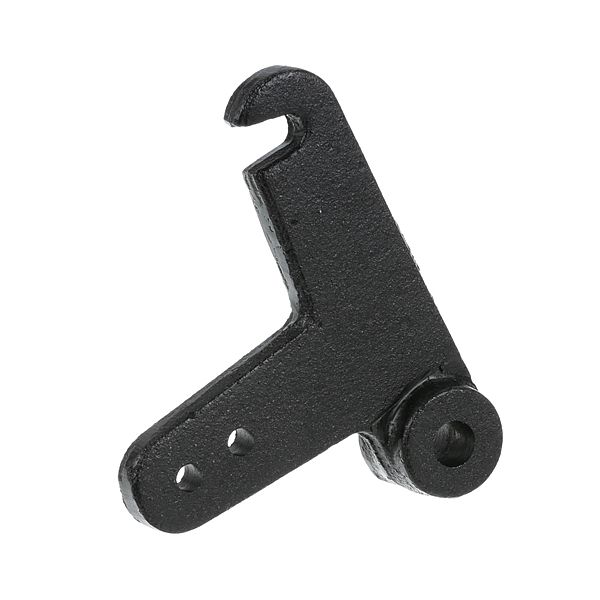

Jade Range 100-174-000 Door Rocker Arm

Be the first to review this product
Special Price $33.19 Regular Price $52.68
In stock
SKU
100-174-000
Add to Wish List
Other Categories, Additional Parts, General Parts
Manufacturer:
The Jade Range 100-174-000 Door Rocker Arm allows the movement of doors to be controlled by shifting the movement between the hinge mechanism and the door. The arm rotates with the door opening and closing and directing alignment with every cycle. It is fitted in the hinge of the door of the range. The component assists in easy mechanical contact among the connected components. Its size permits it to fit with certain door designs. The rocker arm is attached to hinge points, which control door movement.

Dimensions

  • Length: 4 In
  • Width: 3.5 In
  • Height: 1 In
  • Weight: 0.617 lbs
https://partsfe.com/media/catalog/product/j/a/jade-range-100-174-000-cast-iron-door-rocker-arm-3-1-4-x-4-75089-2.jpg

Product Notes

  • Door Rocker Arm, 3-1/4" X 4" Cast Iron,
  • Jade Oven Jtrh
Reviews
Write Your Own Review
You're reviewing:Jade Range 100-174-000 Door Rocker Arm
Your Rating
FAQS
Customer Questions
What maintenance is required for the Jade Range 100-174-000 Door Rocker Arm?

Regularly inspect the rocker arm for wear, corrosion, and misalignment. Clean debris and lubricate pivot points to ensure smooth operation. Tighten mounting hardware periodically to maintain proper door movement and prevent mechanical failure.

What are common issues with the Jade Range 100-174-000 Door Rocker Arm?

  • Wear on pivot causing stiff or uneven door movement.
  • Corrosion or rust affecting structural integrity and function.
  • Loosening of mounting points leading to misalignment or noise.
  • Excessive play in rocker arm mechanism.
  • Binding during door operation under load.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Turn off appliance and allow it to cool completely; disconnect gas or power supply for safety.

Step2: Remove appliance door panel and carefully detach the worn rocker arm using proper hand tools.

Step3: Align new cast iron rocker arm with hinge and mounting points, ensuring correct orientation.

Step4: Secure fasteners tightly and check smooth door movement and balance.

Step5: Reassemble door and test operation; avoid pinching hazards during adjustment.
