Cleveland 103905 Contractor Mercury 3 Poles 30A 120V

Rating:
5 5 2
2  Reviews Add Your Review
Special Price $436.76 Regular Price $941.31
Out of stock
SKU
103905
Add to Wish List
Electrical & Hardware, Switches & Relays,
Manufacturer:

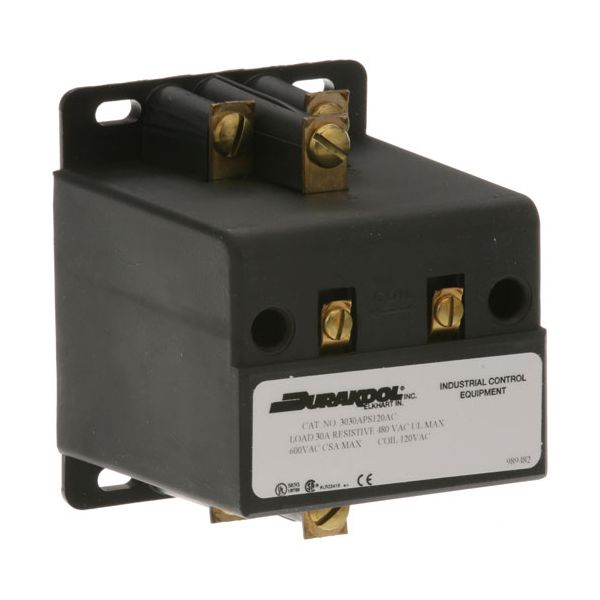

The Cleveland 103905 Contractor Mercury 3 Poles 30A 120V is an electric switching part which fits in a compatible convection steamer. It is designed with a rating of 30 amps at 120 volts to regulate the flow of electrical power to heating elements and other associated parts. The contactor is installed in the electrical control compartment of the steamer, and it is switched on and off by signals from the control system. It is used in institutional and restaurant kitchens as a vital component of the power management system, which allows it to operate safely and effectively in heating.

Dimensions

  • Length: 5 In
  • Width: 4.5 In
  • Height: 3.5 In
  • Weight: 1.76 lbs
https://partsfe.com/media/catalog/product/c/l/cleveland-103905-3-poles-mercury-relay-contactor-w-screw-terminals-2-x-3-25-ctrs-62091-2.jpg

Product Notes

  • - This Item Contains Mercury. --
  • Contactor
  • [ 3 Poles] [30 Amps] [120V ] [ Screw Terminals] [ ] [2"
  • X 3.25"Ctrs ] [Durakool ] Mercury Relay
  • Cleveland Steamers 21-Cet-8, 21-Cet-16, 10 Pan Units
Reviews 2
Write Your Own Review
You're reviewing:Cleveland 103905 Contractor Mercury 3 Poles 30A 120V
Your Rating
FAQS
Customer Questions
What maintenance is required for the Cleveland 103905 Mercury Relay Contactor?

Regularly inspect the relay for signs of wear, corrosion, or overheating. Ensure all electrical connections are secure and properly insulated. Test the switching operation periodically. Always disconnect power before servicing to prevent electrical hazards or accidental contact.

What are common issues with the Cleveland 103905 Mercury Relay Contactor?

  • Relay sticking in open or closed position.
  • Inconsistent switching causing equipment malperformance.
  • Burned or degraded internal contacts.
  • Loose or corroded wiring connections.
  • Humming noise indicating internal wear or failure.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Turn off and lock out the electrical power supply.

Step2: Access the control panel housing the relay.

Step3: Label all wire connections before removal.

Step4: Disconnect wires and remove mounting hardware.

Step5: Install the new relay in proper orientation.

Step6: Reconnect wires securely to the correct terminals.

Step7: Ensure the relay is firmly mounted.

Step8: Restore power and test unit operation.
