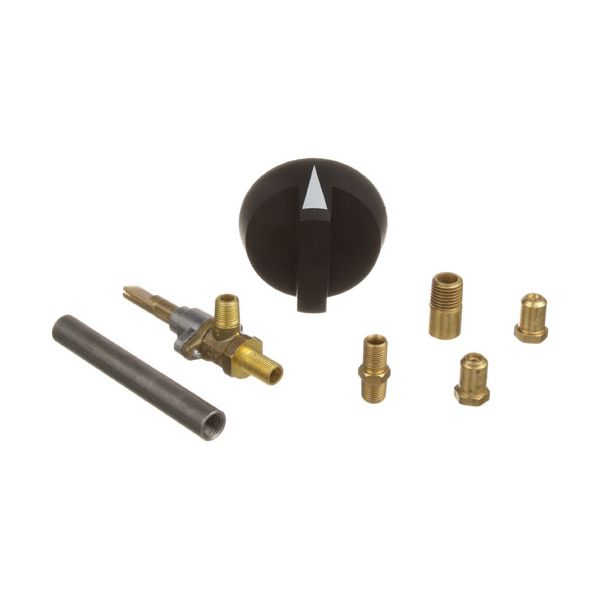

Southbend 1076798 Gas Valve Conversion Kit W/Knob 1/8" MPT X 3/8"-27
Special Price $360.93 Regular Price $565.72
In stock
SKU
1076798
Manufacturer:
The Southbend 1076798 Gas Valve Kit 1/8 MPT X 3/8-27 regulates the flow of gas within equipment by opening and closing the internal valve mechanism in response to control signals. It directs gas through the connected fittings, allowing the burner system to receive the required supply for operation. This valve kit is installed within the appliance's gas line assembly, connecting between the incoming gas supply and the burner components. The connections are designed to fit standard piping and fittings commonly used in commercial cooking equipment.
Dimensions
- Length: 4 In
- Width: 1.5 In
- Height: 4 In
- Weight: 0.455 lbs
Product Notes
- [ 1/8" Mpt Inlet X 3/8"-27 Out ] [ Rotation Off/On]
- [Stem Position Down] [Stem Size .240"] Stem 2-3/16" Long.
- [Ctr Inlet To End Of Stem 2.5" ] [ Angle - 90],
- [ Comes With: Hood Orifice, Orifice Holder,
- 1/8" Fpt X 3-1/8" Black Coupling,
- 1/8" Fpt X 1/4" Mpt Bushing, 2-1/2" Dia. Knob # 22-1312 ]
- Southbend
- Range Series: 163, 1363, 1423.
