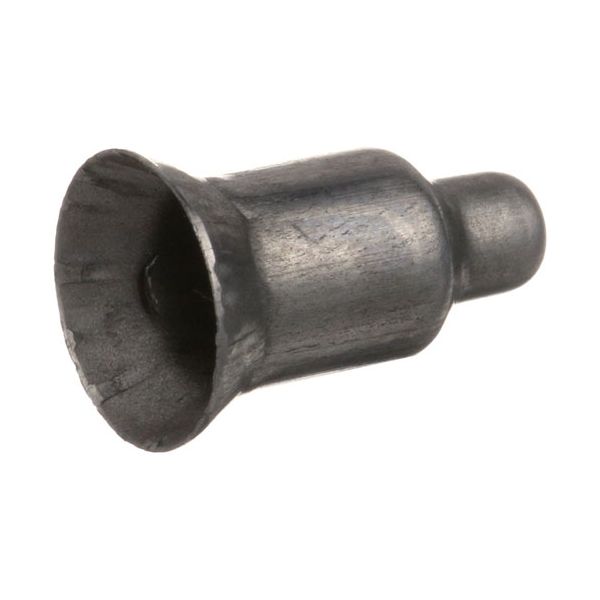

main product photo

Vulcan Hart 109125-9 LP Pilot Orifice 0.010"

Be the first to review this product
$4.00
In stock
SKU
109125-9
Add to Wish List
Griddle & Grill Parts, Gas Grill Orifices,
Manufacturer:
The Vulcan Hart 109125-9 LP Pilot Orifice 0.010" is used to control the flow of propane entering the initial burner assembly by limiting the supply of gases through an aperture that is 0.010 inches in diameter. This is a controlled delivery that maintains a steady flame that is used to start the main heaters during heating cycles. The component is also mounted directly into the regulator line connection between the air tubing and burner head. It supports the shift of a pressurized fuel source to a constant ignition point.

Dimensions

  • Length: 0.5 In
  • Width: 0.25 In
  • Height: 0.5 In
  • Weight: 0.01 lbs
https://partsfe.com/media/catalog/product/v/u/vulcan-hart-109125-9-010-lp-pilot-burner-orifice-3-16-52723-2.jpg

Product Notes

  • .010 Lp Pilot Burner Orifice 3/16"
BAKERS PRIDE:
BKPM1057A, M1057A, M1057X
BLODGETT:
COMSTOCK CASTLE:
SOUTHBEND:
VULCAN HART:
Reviews
Write Your Own Review
You're reviewing:Vulcan Hart 109125-9 LP Pilot Orifice 0.010"
Your Rating
FAQS
Customer Questions
What is the Best Electric Griddle?

Electric Griddle is an electronic equipment that uses an electric element as its heat source. It has a large cooking surface often made up of nonstick material. Electric Griddle has a surface which you do not find in the regular stovetop cookware. ...

Read More
What maintenance is required for the Vulcan Hart 109125-9 Pilot Burner Orifice?

Keep the pilot burner orifice clean and free of grease or carbon buildup. Regular inspection ensures proper gas flow and ignition performance. Check for blockages and tighten fittings. Follow safety procedures when handling gas components.

What are common issues with the Vulcan Hart 109125-9 Pilot Burner Orifice?

  • Clogged or partially blocked orifice reducing flame quality.
  • Irregular pilot flame or weak ignition.
  • Gas leakage or inconsistent gas flow.
  • Carbon buildup causing misfiring or delayed ignition.
  • Incomplete combustion or soot formation.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Turn off gas supply and allow appliance to cool completely before servicing.

Step2: Remove burner access panel and locate existing pilot orifice assembly.

Step3: Unscrew old orifice carefully using proper wrench, avoiding damage to threads.

Step4: Install new orifice and tighten securely, ensuring correct alignment.

Step5: Restore gas supply, check for leaks, and test pilot flame stability.

Step6: Reassemble panel and verify proper operation.
