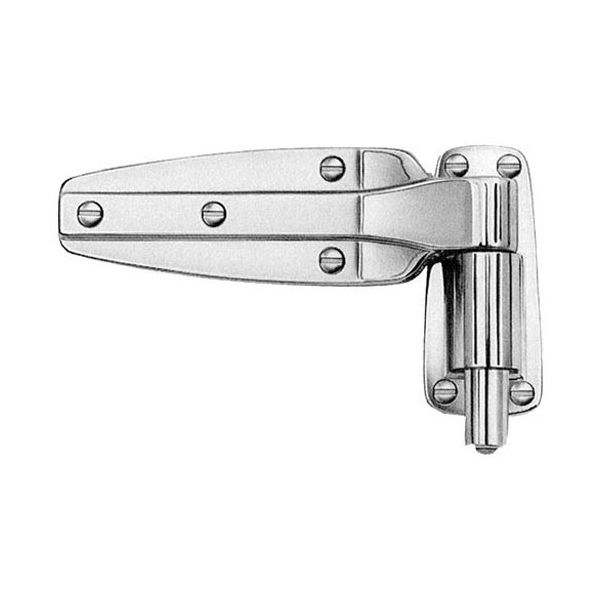

Kason 11248000016 Reversible Spring Hinge ,10-1/8" x 5-21/32"
Special Price $119.86 Regular Price $224.97
In stock
SKU
11248000016
The Kason 11248000016 Hinge is a versatile, reversible and spring assisted cam rise hinge, which is easy to operate. It has dimensions of 10-1/8 inches in Long OD, and 5-21/32 inches wide. A hex hole strap is included for securely fastening the hinge to a door and it can be reversed by removing the cap, moving the cam and putting back the cap. Made from die cast zinc with chrome plated finish offering an offset of 1-1/8” for efficient working. This hinge can be recognized with “1245” engraved on the strap and “1248” structured in its flange providing sleek appearance along with functionality.
Manufacturer:
Dimensions
- Length: 10.25 In
- Width: 6.5 In
- Height: 0.25 In
- Weight: 3.5 lbs
Product Notes
- Reversible Spring Assisted Cam Rise Hinge,
- 10-1/8" Long Od. X 5-21/32" Wide.
- To Reverse Remove Cap And Push Out Cam, Replace Cam
- On Other Side Of Strap And Replace Cap.
- Strap Has A Hex Hole In It Which Accepts The Stem From The
- Flange., Number "1245" Is Cast On Strap~
- Number "1248" Is
- Cast On Flange.
- 1-1/8" Offset
- Die Cast Zinc Polished Chrome Plated.
